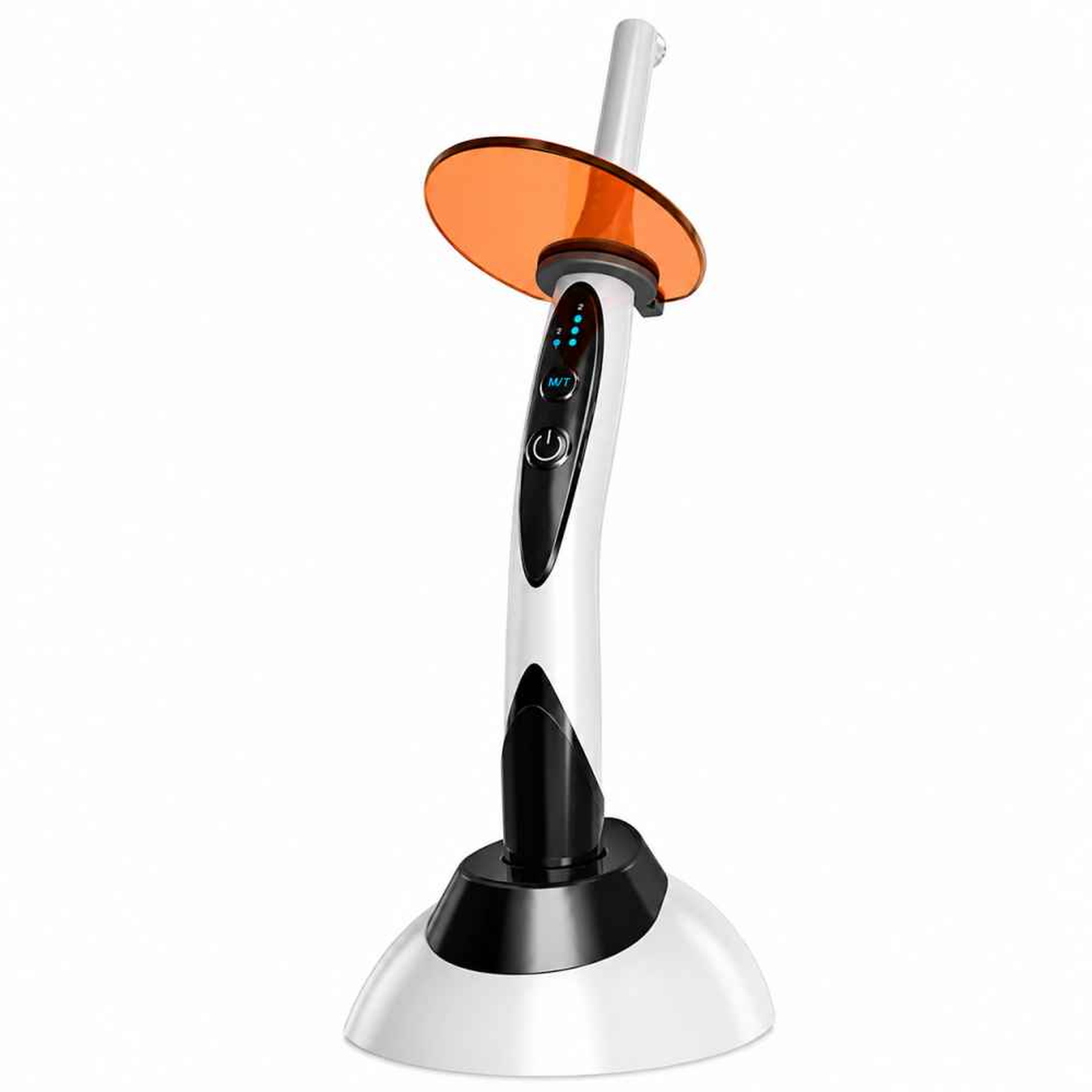

Woodpecker O-Light Plus LED Dental Curing Unit

$110.49
High-intensity LED output: 1500 mW/cm² light intensity with a 0-degree focused beam angle for concentrated, deep cure penetration.
360-degree rotating head: full rotation allows precise positioning in any posterior or anterior access area.
Four curing modes: Standard, Xtra-Power, Pulse, and Ramp modes provide flexible curing protocols for different composite materials and clinical situations.

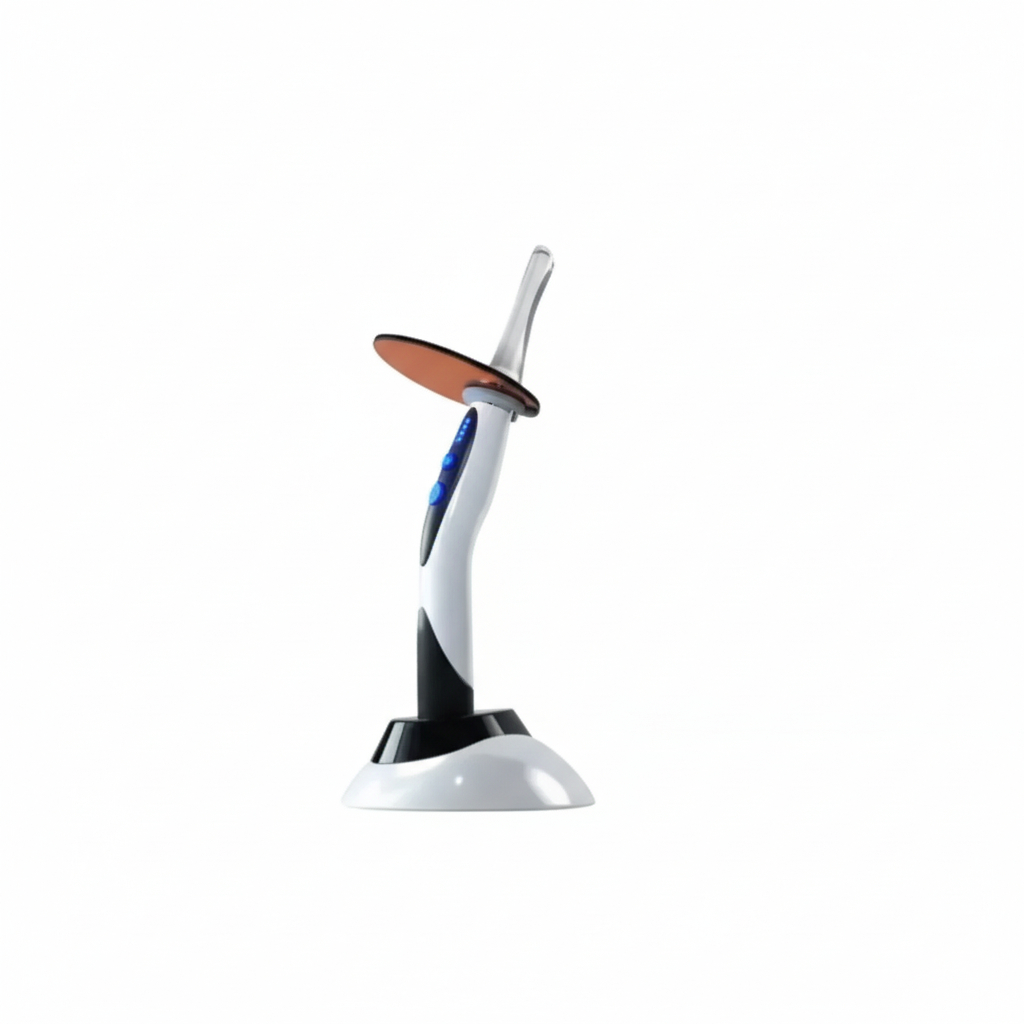

Wireless rechargeable design: cordless operation with a dedicated charging dock for uninterrupted intraoral access.
Top Highlights
Brand / Model
Woodpecker O-Light Plus
Light Intensity
1500 mW/cm²
Beam Angle
0° Focused

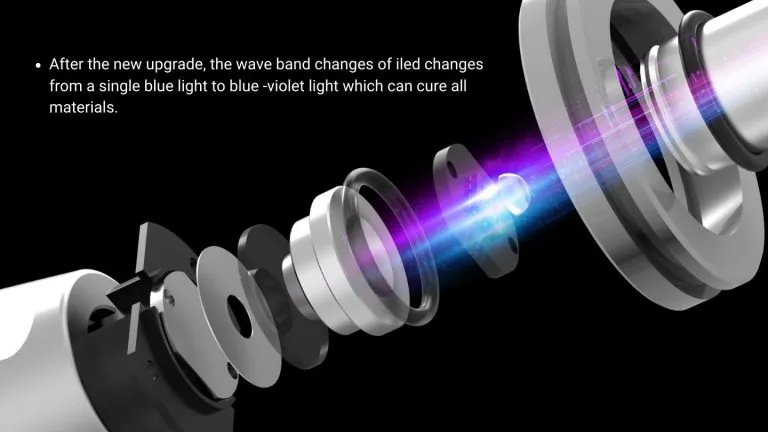

Wavelength
420 to 480 nm (Blue LED)
Curing Modes
Standard · Xtra-Power · Pulse · Ramp
Head Rotation
360°
Power
Wireless Rechargeable
Intended Use
Professional Dental Use
Quality
ISO 13485
Buy Now
Guaranteed Safe And Secure Checkout
Visa Mastercard American Express Discover PayPal PayU Razorpay Stripe

The Woodpecker O-Light Plus is a professional wireless LED dental curing light designed for high-efficiency composite polymerization in restorative dentistry. It delivers 1500 mW/cm² of light intensity through a 0-degree focused beam that concentrates output for improved depth of cure. A 360-degree rotating head allows unrestricted intraoral positioning, while four curing modes provide clinical flexibility across standard, high-power, pulse, and gradient intensity protocols. A dedicated charging dock and cordless design ensure uninterrupted availability throughout the clinical day.

1500 mW/cm² intensity
360° Rotating head
4 Curing modes
5 s Quick cure possible

Key features

1 0° Focused Beam

Concentrated output at 0 degrees improves light penetration into deep composite restorations.

2 1500 mW/cm² Output

High light intensity supports efficient polymerization even for high-opacity composite materials.

3 360° Rotating Head

Full rotation provides unrestricted positioning across anterior and posterior access areas.

4 Wireless Rechargeable

Cordless operation with a dedicated charging dock for continuous intraoral access during busy clinical sessions.

Light Intensity 1500 mW/cm²
Wavelength 420 to 480 nm
Beam Angle 0° Focused
Head Rotation 360°

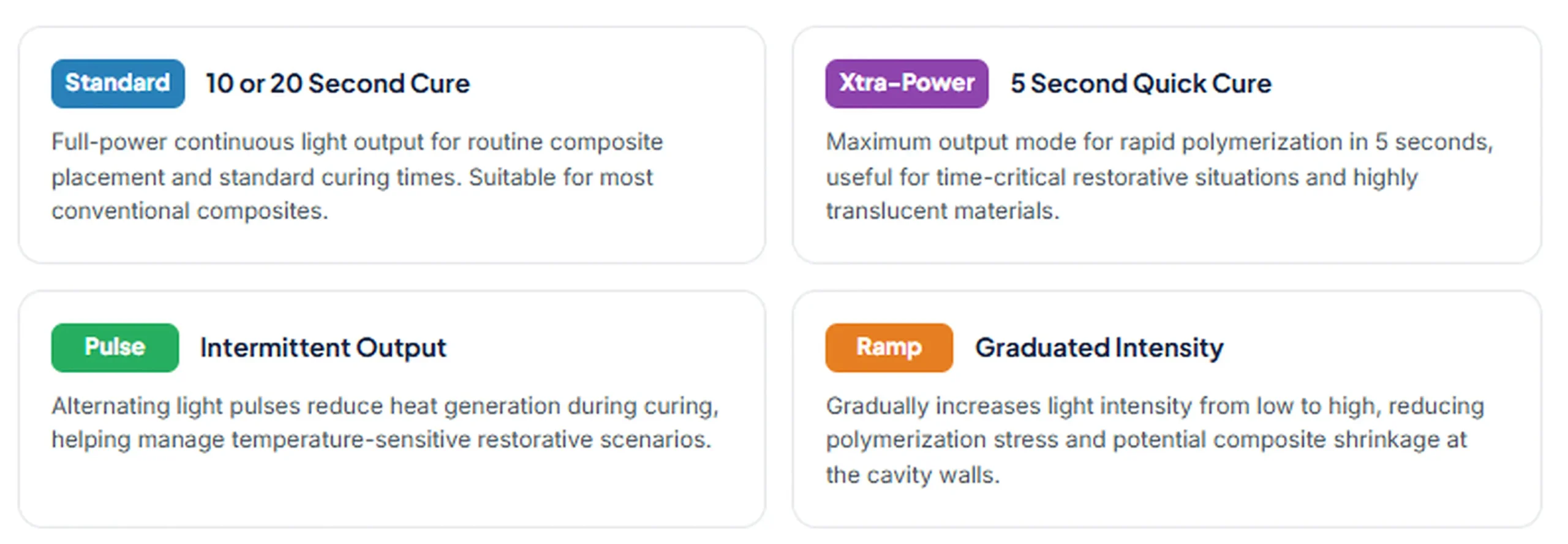

Curing Modes Standard (10 s / 20 s), Xtra-Power (5 s), Pulse, Ramp
Power Source Rechargeable Battery
Charging Method Inductive Charging Dock
Light Source LED
1
Charge: Ensure the battery is charged by returning the unit to the charging dock between sessions.
2
Attach Light Guide: Attach the appropriate light guide tip and confirm it is fully seated.
3
Select Mode: Select the appropriate curing mode for the composite material and thickness being placed.
4
Position: Rotate the head to the required angle and place the tip as close as possible to the composite surface without touching it.
5
Cure: Activate the unit and maintain a steady position for the full prescribed curing time.
6
Eye Protection: All staff and the patient must use appropriate orange-tinted protective shields throughout curing.
o light plus
  • 1 x O-Light Plus Curing Unit (Wireless)
  • 1 x Charging Dock
  • 1 x Light Guide Tip
  • 1 x Protective Orange Eye Shield
  • 1 x User Manual

Clinicians

General Dentists Restorative Dentists Cosmetic Dentists Endodontists Paediatric Dentists

Settings

General Dental Clinics Restorative Practices Cosmetic Dental Clinics Dental Colleges

Procedures

Direct Composite Restoration Veneer Bonding Pit and Fissure Sealants Adhesive Cementation Whitening Tray Fabrication
Eye Protection Required

Always use the supplied orange-tinted protective shield for both the patient and all staff present during curing. Never look directly at the light beam.

Disinfect Light Guide

Cover the light guide with a fresh disposable sleeve for every patient, or disinfect with approved surface disinfectant between uses.

Do Not Contact Composite

Keep the tip close to but not touching the composite surface to avoid contamination and to protect the light guide.

Keep Charged

Return the unit to the charging dock after each session to ensure full battery capacity is available for the next clinical day.

Professional use only: This is a prescription-grade professional dental device intended exclusively for use by qualified dental professionals. The LED beam emitted during curing is intense and may cause eye and skin damage with direct exposure. Always use appropriate orange-tinted eye protection for the patient and all staff during operation. Never look directly at the light beam. Follow current infection-control guidelines and the manufacturer's instructions for use. Regulatory and compliance documentation for your export destination is available on request before purchase.

Questions

Frequently Asked Questions

A 0-degree beam angle means the light output is focused and concentrated directly forward with minimal scatter. This allows more of the curing light energy to reach deeper into the composite restoration for improved depth of cure.
Standard mode (10 or 20 seconds) is suitable for most conventional composite materials. Consult the composite manufacturer's recommendations for specific curing times based on material shade and increment thickness.
Ramp mode gradually increases light intensity from low to high, which can reduce polymerization stress and help minimize composite shrinkage away from the cavity walls during curing.
Yes. Appropriate orange-tinted protective eye shields must be used by both the patient and all clinical staff during every curing cycle. Never look directly at the LED beam.
Battery duration depends on usage mode and frequency. Returning the unit to the charging dock between patients and at the end of each session maintains full readiness for the following day.
Pulse mode alternates the light beam on and off, reducing heat buildup at the composite surface during curing. This can be useful in temperature-sensitive restorative scenarios or thin increment placements.
Refer to the manufacturer's instructions for the specific sterilization protocol for the light guide tip. Using fresh disposable sleeve covers is the most practical method for patient-to-patient infection control.
