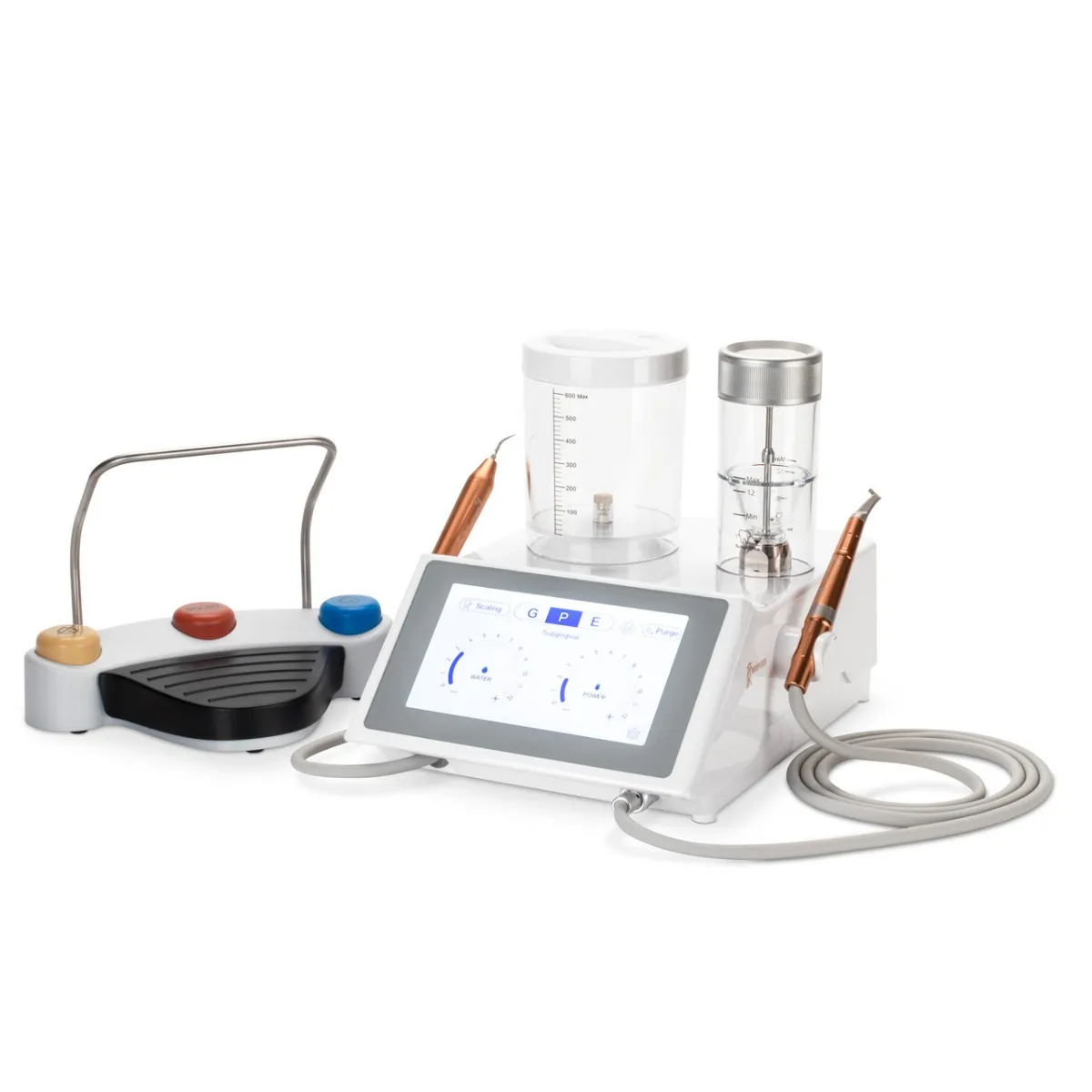

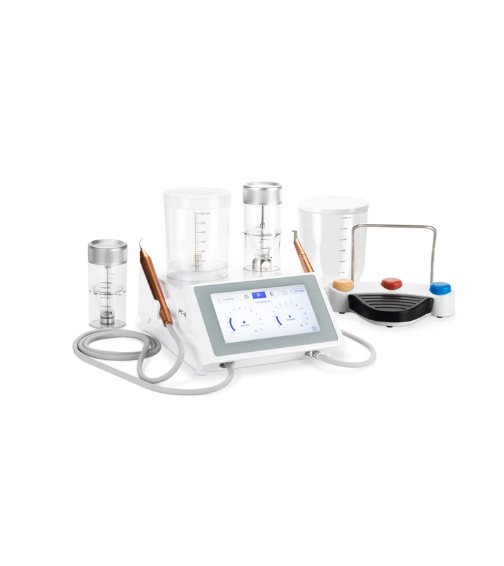

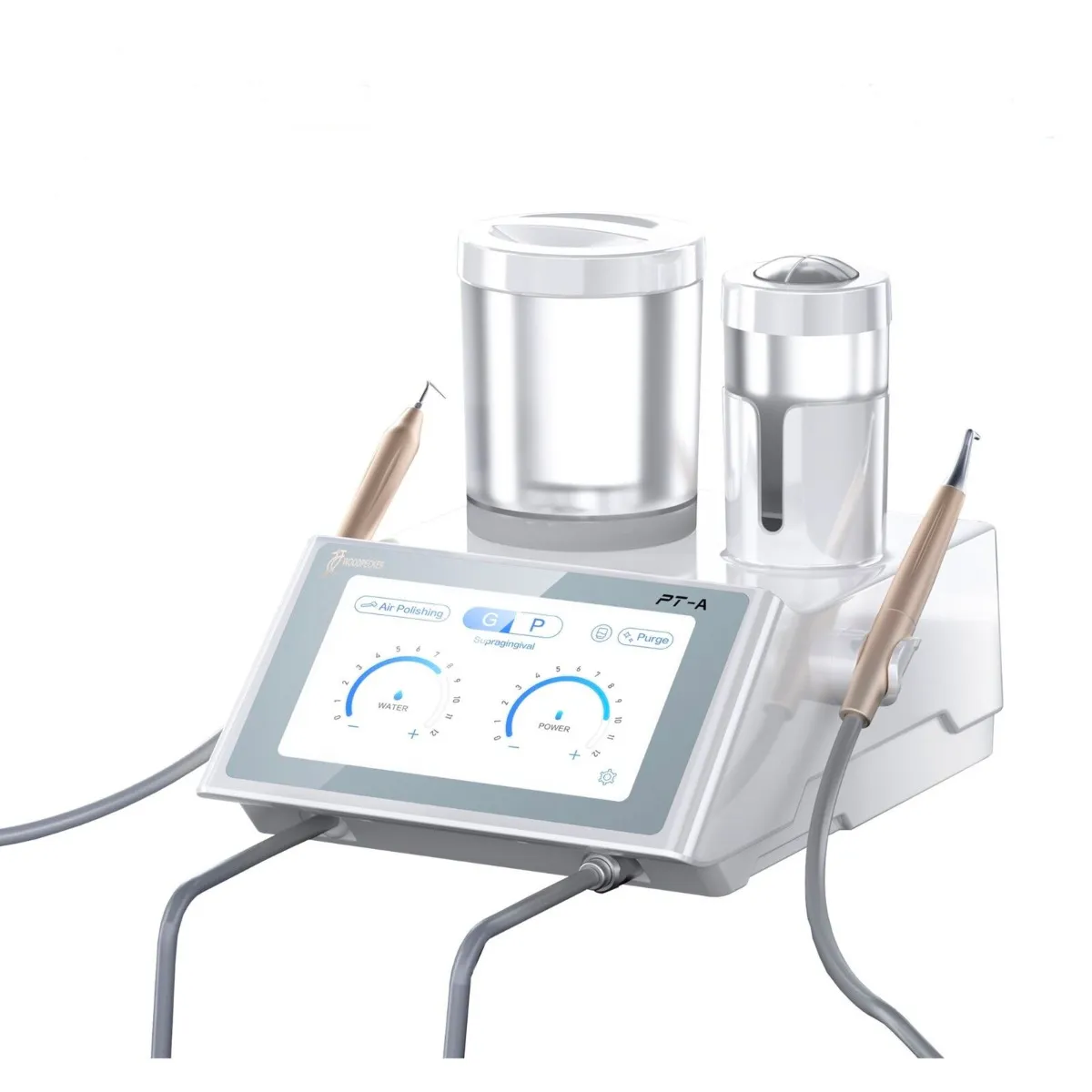

Woodpecker PT-A Ultrasonic Dental Scaler and Air Polisher

Woodpecker PT-A Ultrasonic Dental Scaler and Air Polisher

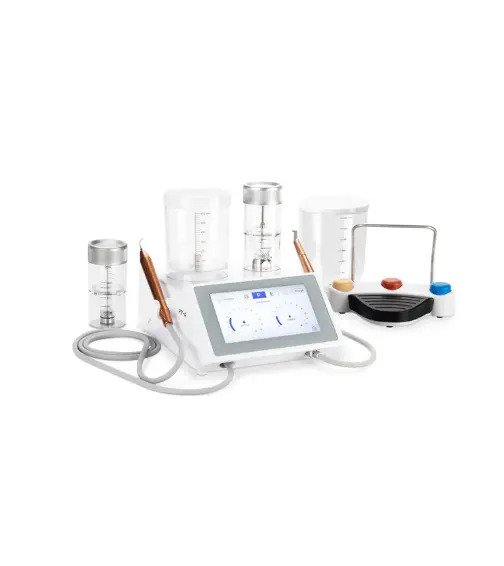

The Woodpecker PT-A is an advanced ultrasonic scaler and air polisher that offers a one-stop shop for maintenance, perio prevention, and polishing. The device is distinguished by its exceptional ergonomics, accuracy, simple maintenance, and adherence to the strictest hygiene regulations. Its design has been centred around providing the expert and the patient with the minimum discomfort while maximising performance.

Key Features:

1. Single solution: Air polishing ultrasonic periodontal treatment + endodontic treatment + implant maintenance with single equipment
2. Precision spray: A precise and easily manoeuvrable nozzle for more concentrated air polishing, making it highly efficient at powder usage and performance

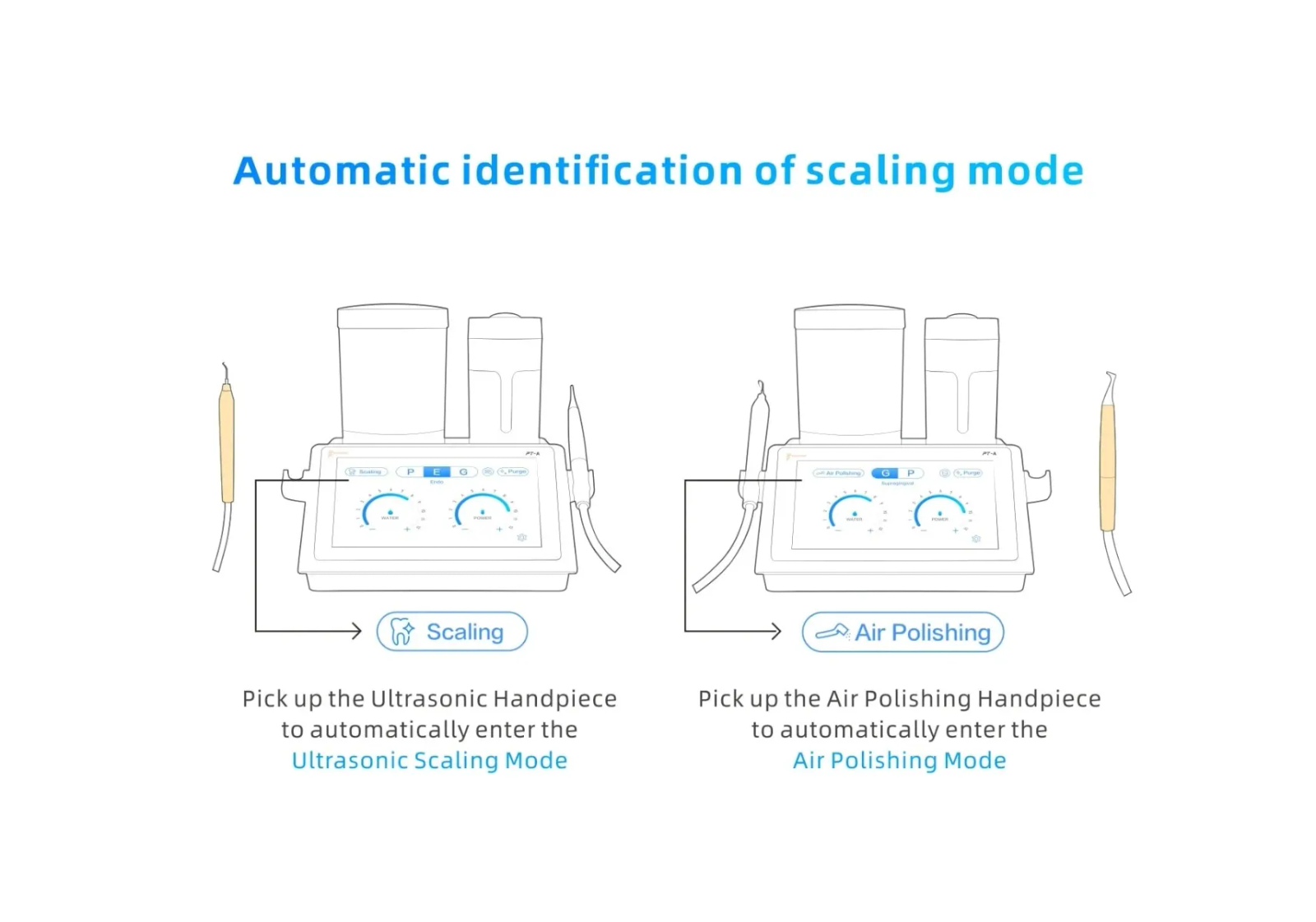

3. Intelligent design: Automatic identification of scaling mode between scaling and polishing mode, making it easy to use
4. Self-contained scaler: Dual water supply from a water bottle without an external water supply
5. Pain mitigation technology: An automatic frequency tracking system searches for the best working frequency, enabling a dynamic response with minimal invasiveness

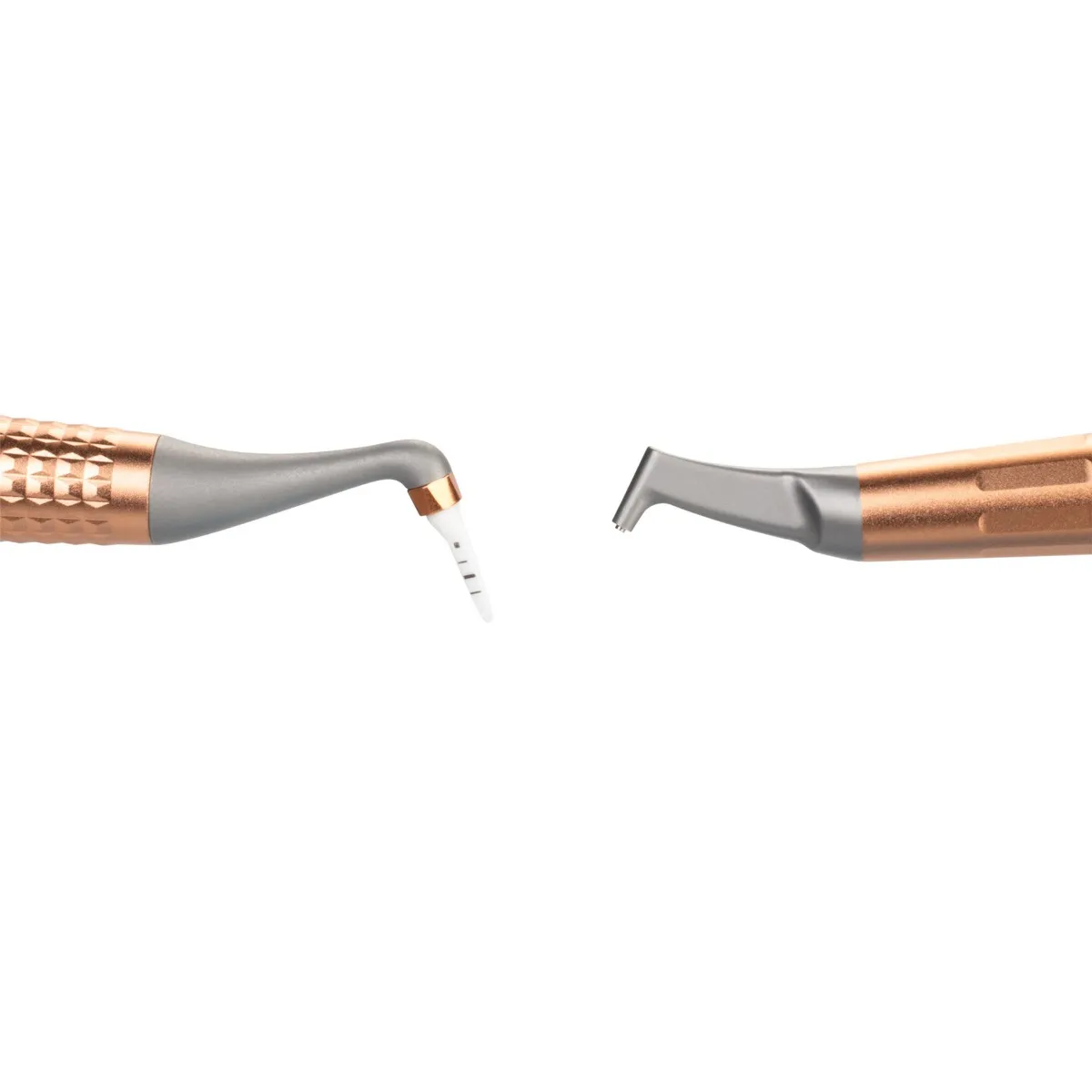

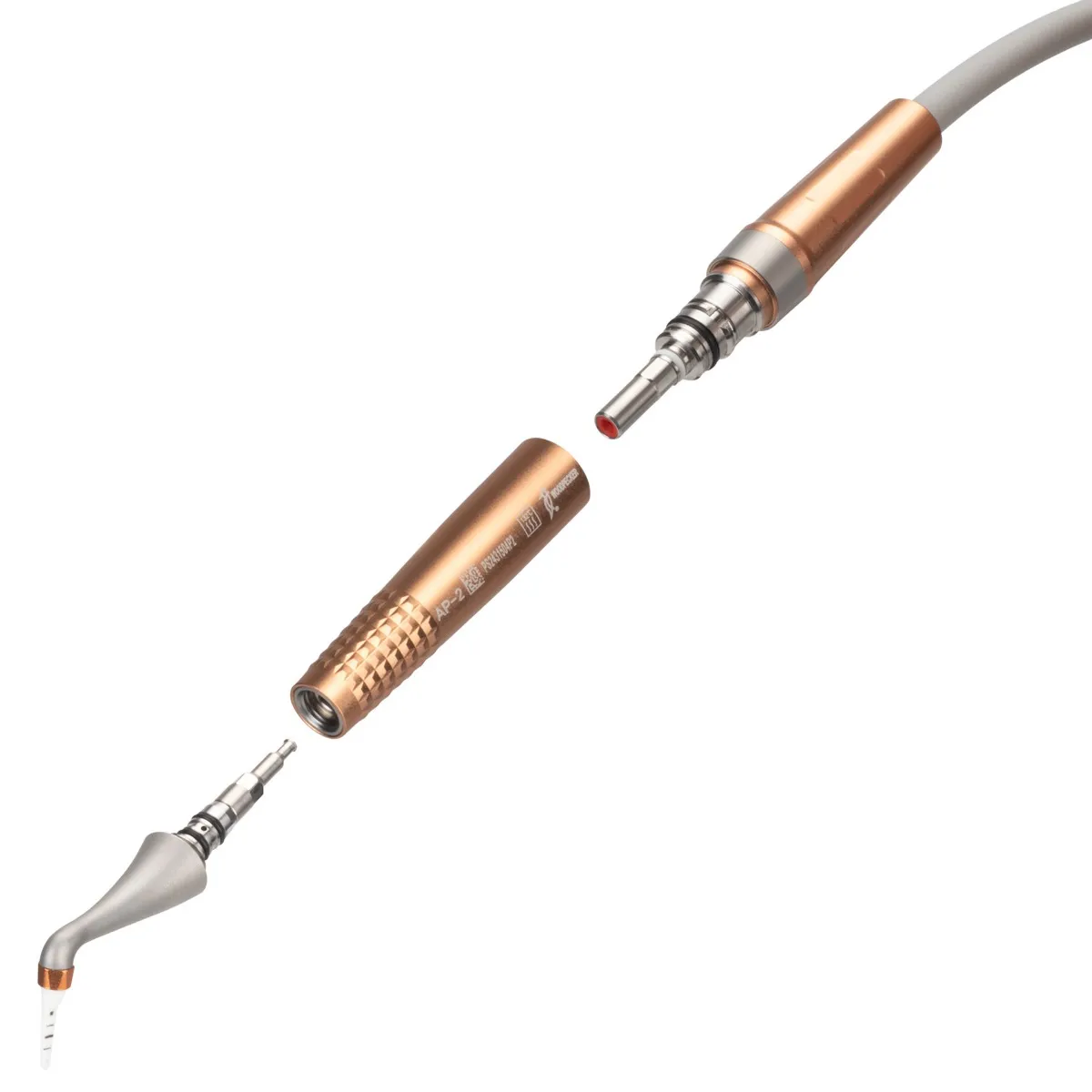

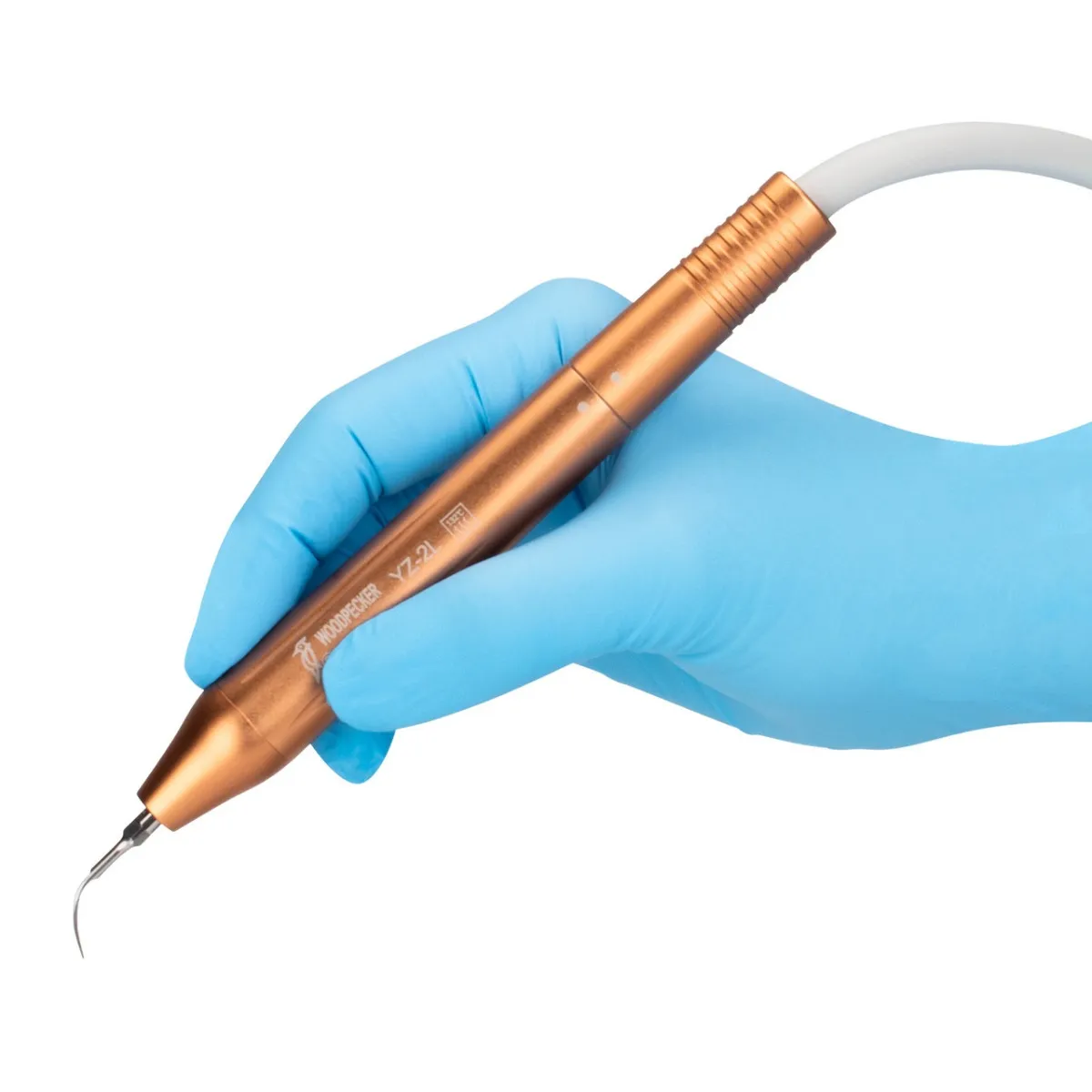

6. Ergonomic handpiece: Sleek and optimised for greater dexterity and reduced hand fatigue. The removable handpiece is fully autoclavable
7. Titanium alloy tips: Minimal invasiveness, maximum patient comfort. Effectual constant power output and more comfortable scaling to remove stains and biofilms
8. Comfort factor: No heating in the handpiece for greater patient comfort
9. Heating system: For a warm and comfortable air-polishing treatment, treating a varied spectrum of patients is possible*

Key Specifications

1. Model: PT-A
2. Power Adapter Input: 220–240V~ 50Hz/60Hz, 400mA
3. Power Adapter Output: 25V~ 50Hz/60Hz, 2.8A
4. Main Unit Input: 25V~ 50Hz/60Hz, 2.8A
5. Output Vibrating Frequency (Ultrasonic Tip): 30±5 kHz
6. Max Vibration Amplitude of Tip: 90μm (±50%)
7. Output Power (Tip): 3W–20W
8. Semi-offset Force (Max): 5N (±50%)
9. Water Inlet Pressure: 1–5 bar (0.1–0.5 MPa)
10. Air Inlet Pressure: 5.5–7.5 bar (0.55–0.75 MPa)
11. Water Outlet Temperature (Air Polishing System): 0–45°C
12. Main Unit Dimensions: 330mm × 280mm × 120mm
13. Handpiece Sterilization: Autoclavable at 134°C, 2.0–2.3 bar
14. Operation Mode: Continuous Operation
15. Electric Shock Protection Class: Class I, B-type Applied Part
16. Waterproof Rating: IPX0 (Main Unit), IPX1 (Foot Pedal)

Fuses:

1. Main Unit: T5AH 250V
2. Power Adapter: T1.0AL 250V

Operating Environment:

1. Temperature: +5°C to +40°C
2. Relative Humidity: 30%–75%
3. Atmospheric Pressure: 70kPa–106kPa
4. Cooling Water Temperature: +5°C to +25°C

Packaging includes

1. 2 x Ultrasonic handpieces
2. 2 x Air polishing handpieces
3. 2 x Torque wrenches
4. 3 x Sterilising box
5. 2 x Water bottles

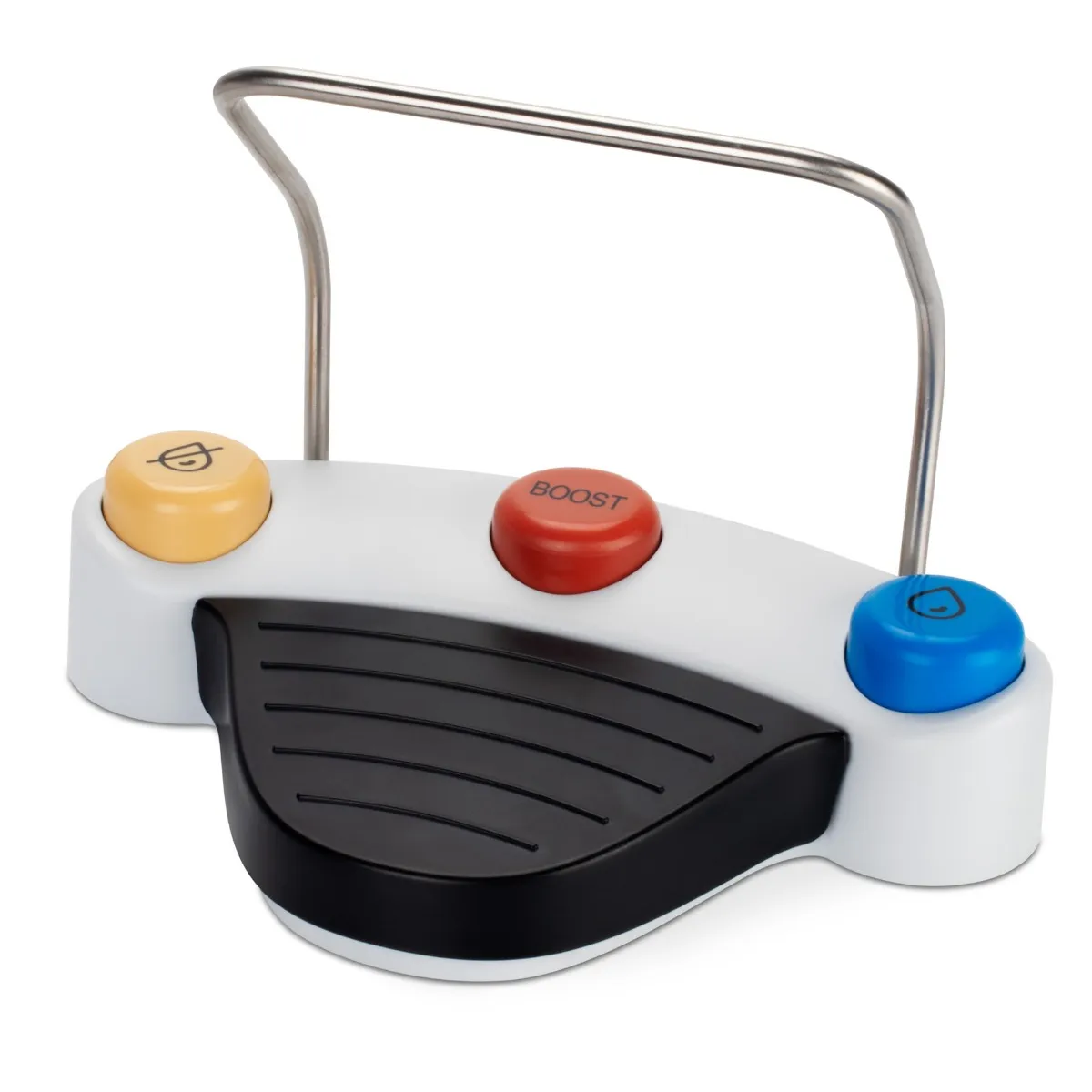

6. 1 x Multi-functional foot pedal
7. 2 x Woodpecker powders
8. 2 x Powder tanks
9. 2 x Water and air tubing
10. 2 x Needles
11. 1 x Power adapter
12. 2 x Endo irrigation tips (E60)
13. 1 x P94 Implant maintenance tips
14. 1 x P95 Implant maintenance tips
15. 2 x P33 Titanium alloy tip
16. 2 x P56 Titanium alloy tip
17. 2 x P59 Titanium alloy tip
18. 2 x P50L Titanium alloy tip
19. 2 x P50R Titanium alloy tip

Directions for Use

Initial Setup

1. Unpack the unit and place it on a stable, flat surface.
2. Connect the power adapter to the main unit and plug it into a grounded power outlet.
3. Attach the external air pipe to the air intake connector at the back of the device.
4. Insert the foot pedal plug into the corresponding socket.
5. Connect the ultrasonic handpiece to the left port and the air polishing handpiece to the right port.

Using the Ultrasonic Scaling Mode

1. Pick up the ultrasonic handpiece; the device will automatically enter Ultrasound System Mode.

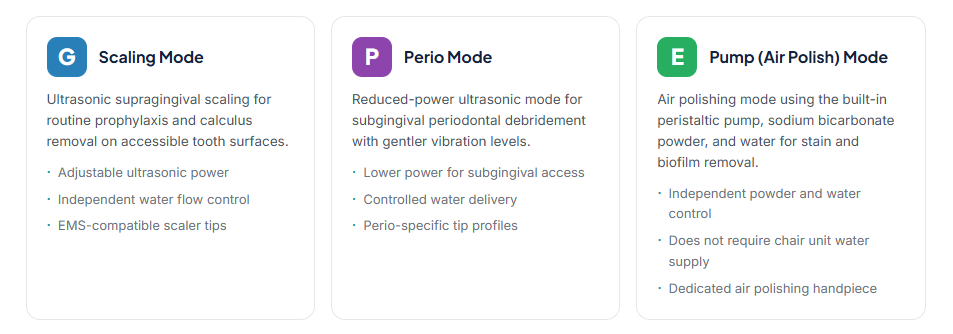

2. Select the desired mode on the touchscreen (Scaling, Perio, or Endo).
3. Choose the appropriate tip and tighten it using the torque wrench.
4. Select the water supply mode (bottle or direct line) and adjust water volume as needed.
5. Press the Foot Pedal A to activate tip vibration with water spray. Adjust power level based on clinical need.
6. Gently glide the tip parallel to the tooth surface without applying excessive pressure.
7. After use, allow water to flush through the tip for 30 seconds before disassembling.

Using the Air Polishing Mode

1. Fill the powder tank with suitable air-polishing powder within the indicated Min–Max level.
2. Securely install the powder tank and pick up the air polishing handpiece; the system auto-switches to Air Polishing Mode.
3. Adjust water volume and air pressure via the touchscreen (start at level 5 for water, level 1 for air).
4. Use Foot Pedal A to initiate air-polishing spray. Maintain a 3–5mm distance from tooth surface at a 30°–60° angle.
5. Use small circular motions and avoid direct spraying on gums or periodontal pockets.
6. Employ high-speed suction during the procedure to evacuate mist and particles.
7. After polishing, set water to maximum and perform a final rinse polish on all teeth.

Cleaning Mode (Internal Flushing)

1. Fill the water bottle with distilled or demineralized water.
2. Pick up each handpiece one at a time and press the “Cleaning” button on the screen.
3. Activate flushing using Foot Pedal D; the unit will clean automatically for 20–30 seconds.
4. Repeat for both handpieces to ensure all internal tubing is rinsed and powder residue is cleared.

Sterilization Instructions

1. Detach ultrasonic and air polishing handpieces before sterilization.
2. Autoclave at 134°C for at least 4 minutes using a fractional pre-vacuum steam sterilizer.
3. Avoid using hot air, radiation, or chemical sterilization methods such as ethylene oxide or plasma.

Certification & Warranty:

1. CE certified
2. 24-month warranty for the main unit
3. 12-month warranty for handpieces

FAQs

Q: What is this product used for?

A: This is an ultrasonic scaler polisher device attachment designed for use with compatible dental devices for general cleaning and polishing applications.

Q: Is this a medical device?

A: No. This is a device attachment for general device use only. It is not a medical, diagnostic, or therapeutic device and does not diagnose, treat, cure, or prevent any disease.

Q: What is included in the pack?

A: The pack includes precision-engineered scaler and polisher tips designed for use with compatible ultrasonic dental scaler devices.

Q: What devices is this compatible with?

A: This attachment is designed for use with compatible dental scaler devices. Check the manufacturer specifications and your device documentation for compatibility information.

Q: How do I use this product?

A: Attach the tips to your compatible ultrasonic device and operate according to the device manufacturer's instructions. Use only as part of device assembly.

Q: What are the key features?

A: Key features include durable precision-engineered tips, easy-to-use design, compact and portable construction, and compatibility with dental scaler devices.

Q: Is this portable?

A: Yes. The PT-A features a compact and lightweight design that makes it portable and convenient for device use.

Q: How should this be stored?

A: Store in a clean, dry place after use. Handle tips with care to avoid damage and maintain device performance.

Q: Can this be used for clinical procedures?

A: No. This is a device attachment for general device use only, not intended for medical diagnosis, treatment, or clinical procedures.

Q: What makes these tips precision-engineered?

A: The tips are manufactured with precision engineering for durability and consistent performance when used with compatible dental scaler devices.

Disclaimer:

This product is designed for use by trained dental professionals. Not intended for medical diagnosis or treatment. Proper professional training and certification required for safe operation. Consult dental professionals for guidance.
