Dental Equipment · Portable X-Ray

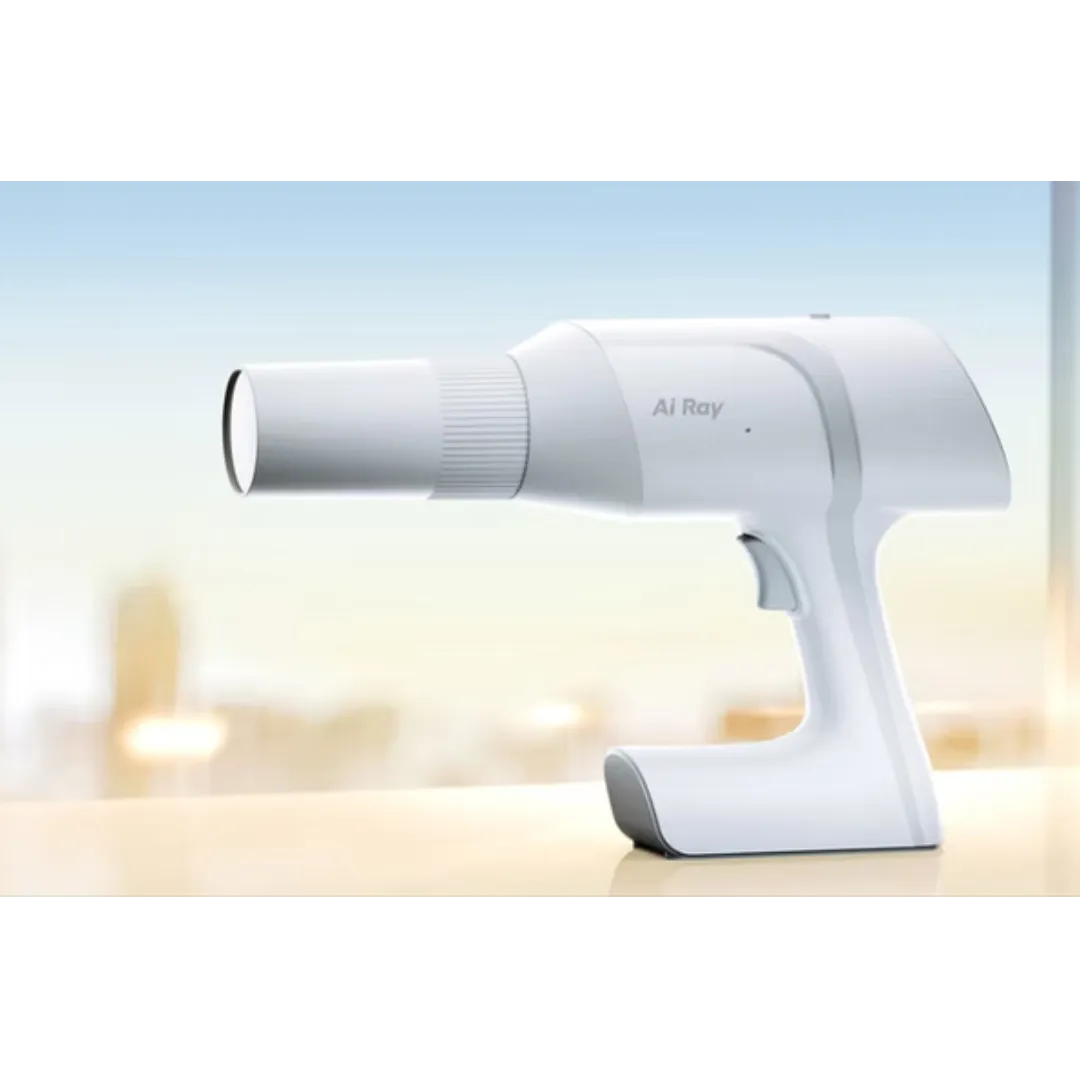

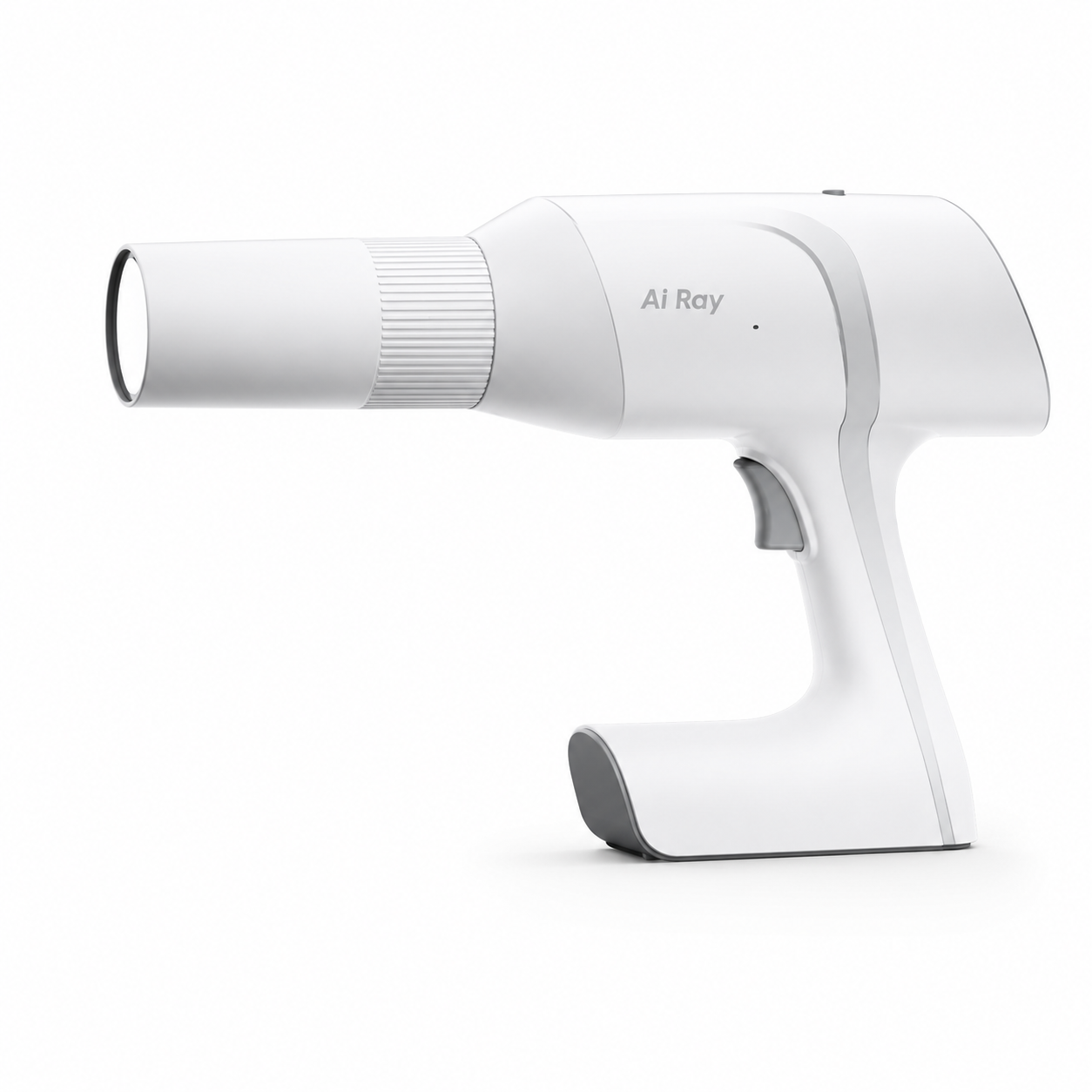

Woodpecker Ai Ray – Portable Digital X-Ray Machine for Dental

$1,039
2.8-inch capacitive touchscreen: fully touch-operated interface for exposure parameter selection, patient mode, tooth position, and direct calibration access.:
80W super-fast charging: rapid recharge reduces downtime between sessions significantly compared to standard-charge portable units.:
Built-in calibration function: onboard calibration accessible directly from the display for maintaining consistent exposure accuracy.:
Smart preset exposure system: selectable tooth position, patient mode, and receptor type presets minimize manual kV and exposure time configuration.:
Top Highlights
Brand / Model
Woodpecker Ai Ray
Output
70 kV / 2 mA
Display
2.8-Inch Capacitive Touchscreen
Charging
80W Super-Fast Charging
Calibration
Built-In Onboard Function
Cone Angle
25°
Min. Exposure Time
0.250 seconds (configurable)
Intended Use
Professional Dental Radiography (Rx)
Quality
CE Marked, ISO 13485
Buy Now
Guaranteed Safe And Secure Checkout
Visa Mastercard American Express Discover PayPal PayU Razorpay Stripe

The Woodpecker Ai Ray is a professional handheld portable dental X-ray unit designed for modern practices requiring cordless, chairside radiography without fixed room infrastructure. Its 2.8-inch capacitive touchscreen provides full touch-operated control of exposure parameters, tooth position selection, patient mode, and a built-in calibration function, replacing physical button panels with a more intuitive interface. An 80W super-fast charging system minimizes downtime, and the rechargeable battery supports a full day of imaging across multiple operatories. The 25-degree cone angle and smart preset system allow rapid, accurate exposure selection for routine intraoral radiography.

80W Super-fast charging
2.8″ Capacitive touchscreen
25° Cone angle
70 kV output

Key features

1 2.8-Inch Capacitive Touchscreen

Full touch control of all exposure parameters, patient mode, tooth position, and onboard calibration from a single screen.

2 80W Super-Fast Charging

Significantly faster charging than standard portable units minimizes between-session downtime in busy practices.

3 Built-In Calibration

Onboard calibration function ensures consistent exposure accuracy without requiring external calibration equipment.

4 Smart Preset Exposure

Tooth position, patient mode, and receptor type presets eliminate manual kV and exposure time calculation at chairside.

Tube Voltage 70 kV
Tube Current 2 mA
Display 2.8-Inch Capacitive Touchscreen
Cone Angle 25°
Default Exposure Time 0.250 seconds (display-adjustable)
Charging 80W Super-Fast Charging
Calibration Built-In Onboard Function
Receptor Types Sensor, Scanner, Film
Power Rechargeable Battery

The Woodpecker Ai Ray is CE marked for European markets and manufactured under an ISO 13485-certified quality management system. It is a genuine Woodpecker product supplied through SnapShopHub as an export distributor, which operates under its own ISO 13485-certified distribution quality management system. Regulatory compliance requirements for handheld dental X-ray units vary significantly by destination market. Please confirm local requirements before purchase.

CE Marked European conformity for medical devices
ISO 13485 Medical device quality management system
1
Power On: Power on the unit and verify the battery level on the touchscreen display.
2
Run Calibration (if required): Access the calibration function from the display to confirm accurate exposure output before beginning the session.
3
Select Presets: On the touchscreen, select the tooth position, patient mode, and receptor type for the planned exposure.
4
Adjust if Needed: Increase or decrease exposure time using the on-screen plus and minus controls to fine-tune from the preset.
5
Confirm and Expose: Confirm settings on the display, position the unit, stand at the safe operator distance, and activate the exposure.
6
Fast Charge After Sessions: Connect to the 80W charger after each clinical session for rapid battery replenishment before the next day.
Woodpecker ai ray
  • 1 x Woodpecker Ai Ray Main Unit
  • 1 x Charging Stand with 80W Adapter
  • 1 x Positioning Cone
  • 1 x User Manual

Clinicians

General Dentists Oral Surgeons Endodontists Periodontists Paediatric Dentists

Settings

Multi-Operatory Practices Mobile Dental Units Rural and Remote Clinics Dental Colleges General Dental Clinics

Procedures

Periapical Radiography Bitewing Radiography Caries Detection Endodontic Working Length Periodontal Bone Assessment
Maintain Safe Operator Distance

Always stand at least 2 metres from the unit during exposure. Never stand in the primary X-ray beam path.

Comply with Local Regulations

Handheld X-ray units are subject to licensing and operator requirements in many markets. Confirm obligations before use.

Calibrate Regularly

Use the built-in calibration function at the start of each session to verify and maintain consistent exposure accuracy.

Charge After Sessions

Use the 80W charger promptly after sessions to keep the battery ready. Avoid leaving the unit fully depleted for extended periods.

Professional use only · Radiation-emitting device This is a prescription-grade radiation-emitting medical device intended exclusively for use by qualified dental professionals. Always maintain a minimum 2-metre operator distance during exposure. Never stand in the primary beam path. Handheld dental X-ray units may be subject to specific licensing, operator certification, and safety compliance requirements in your market. Confirm local regulatory obligations before purchase and clinical use. Regulatory and compliance documentation is available on request before purchase.

Questions

Frequently Asked Questions

The Ai Ray features a fully capacitive touchscreen interface, 80W super-fast charging, and a built-in onboard calibration function. The Mini Ray uses a button-operated HD screen and has FDA clearance in addition to CE and ISO 13485 certification. Both share the same 70 kV / 2 mA output.
80W fast charging significantly reduces the time needed to recharge the battery between clinical sessions or during the day, making the unit more practical in high-volume practices where uninterrupted imaging availability is important.
The onboard calibration function, accessible directly from the touchscreen, allows the operator to verify and adjust the unit's exposure output to maintain consistent accuracy over time. This helps ensure reliable exposure settings across sessions.
Stand at least 2 metres from the device during every X-ray exposure. Never position yourself in the path of the primary X-ray beam. Follow any additional local radiation safety regulations that apply to handheld dental X-ray units in your market.
Handheld dental X-ray units are regulated as radiation-emitting medical devices and may require additional licensing, facility registration, or operator certification in your market beyond standard device registration. Please confirm your specific regulatory obligations before purchase.
The preset system includes separate settings for Digital Sensor (RVG), PSP Scanner, and conventional Dental Film, automatically adjusting exposure parameters for each receptor type's sensitivity.
