Therapy Equipment

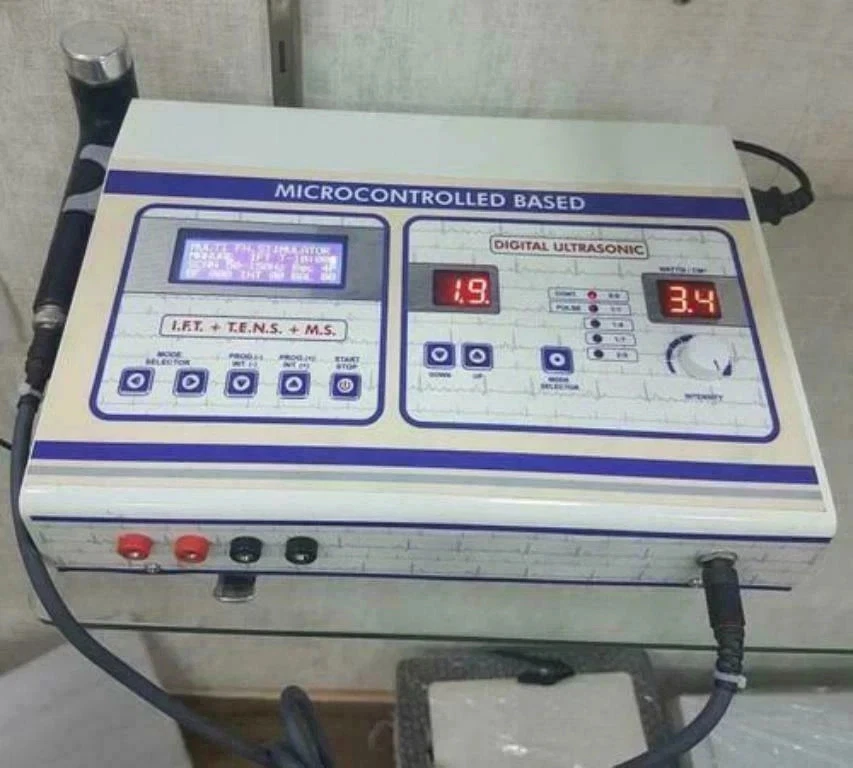

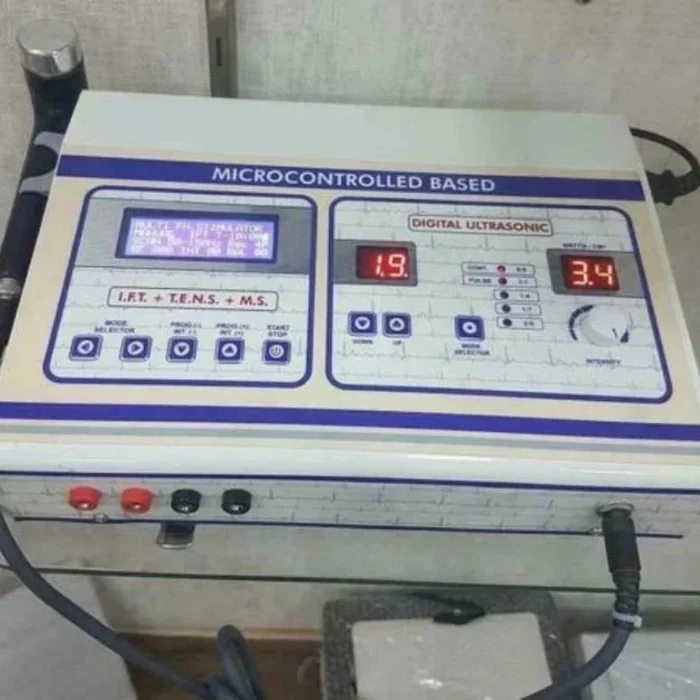

4 in 1 Combination IFT+TENS+MS+US Physiotherapy Machine Therapy Microcontrolled

$230.60
Four therapies in one: Combines Interferential Therapy (IFT), TENS, Muscle Stimulation (MS), and Ultrasound Therapy (US) in a single portable unit, making it a versatile:
electrotherapy combo machine: for multi-modality treatment:
Dual channel, 4 output pads: Supports treatment of multiple sites or bilateral therapy in one session:
Microcomputer-controlled: A programmable LCD gives precise control of treatment parameters across all four modes:
Top Highlights
Brand
Physio
Model
4-in-1 Combination (IFT + TENS + MS + US)
Therapies
IFT, TENS, MS, Ultrasound
Channels
Dual, 4 output pads
Buy Now
Guaranteed Safe And Secure Checkout
Visa Mastercard American Express Discover PayPal PayU Razorpay Stripe

The Medi-Pulse 4-in-1 Combination unit is a compact, lightweight, microcomputer-controlled electrotherapy device with a programmable LCD interface, functioning as a reliable ultrasound electrotherapy machine whenever the US mode is selected. It brings IFT, TENS, muscle stimulation, and 1 MHz ultrasound into one portable system, so a clinician can pick the modality that best suits the condition, the core strength of a well-designed electrotherapy combo machine. Low-frequency, low-intensity impulse stimulation is carried by a medium-frequency carrier current, with fully programmable parameters for each modality. The dual-channel design with four output pads allows simultaneous treatment of more than one site, and the ultrasound head delivers continuous or pulsed output for deep tissue therapy. It is intended for professional clinical use or use under qualified healthcare supervision.

4 Therapies in one unit
Dual Output channels
0-150 Hz IFT beat frequency
0-99 min Programmable timer

Key features

1 4-in-1 combination therapy

IFT, TENS, muscle stimulation, and ultrasound in a single programmable unit, the kind of versatility expected from a capable tens ift machine

2 Microcomputer control

An LCD-based interface sets and monitors parameters across all four modes.

3 Dual channel, 4 pads

Two independent channels with four output pads treat multiple sites in one session.

4 Compact and portable

Lightweight housing suits busy clinics and easy transport between treatment rooms.

5 4-pole and 2-pole IFT

Interferential Therapy supports both modes with an adjustable beat frequency, the defining feature of a true interferential current therapy machine.

6 Programmable timer

Set sessions from 0 to 99 minutes to fit each protocol.

7 Adjustable intensity

Output ranges from 1 to 99 mA for fine control of stimulation strength.

8 Deep tissue ultrasound

1 MHz continuous or pulsed output at 3.5 W/cm², rounding out the capabilities of a full-featured electrotherapy combo machine.

BrandPhysio
Model4-in-1 Combination (IFT + TENS + MS + US)
Product TypeCombination electrotherapy and ultrasound unit
Country of OriginIndia
ChannelsDual
Output / Pads4 output, 4 pads
TENS Unit TypeCombination
TENS ModeTraditional
IFT Treatment Modes4-pole and 2-pole
IFT Beat Frequency0 to 150 Hz
Ultrasound Frequency1 MHz (continuous / pulsed)
Ultrasound Power Density3.5 W/cm²
ControlFunction
Programmable LCD DisplayShows treatment settings and gives access to operating parameters
Mode SelectionSelects IFT, TENS, MS, or Ultrasound
IFT ControlsSupports 2-pole and 4-pole modes with 0 to 150 Hz adjustable beat frequency
TENS and MS ControlsAdjust stimulation parameters for the selected mode
Ultrasound ControlsSupports 1 MHz in continuous and pulsed modes
Intensity AdjustmentSets stimulation output from 1 to 99 mA
Timer SettingsSets treatment duration from 0 to 99 minutes
CE certified (medical device)
ISO 13485 certified
1
Connect and inspect: Connect the unit to a 220 V, 50 Hz supply, and check the lead wires, electrode pads, and ultrasound probe for damage before each use.
2
Select the mode: Power on and use the LCD to choose IFT, TENS, MS, or Ultrasound based on the patient’s condition and protocol, the same first step required on any tens ift machine.
3
Position pads or probe: For IFT, TENS, or MS, place electrode pads on clean, dry skin at the treatment site with suitable gel or adhesive. For ultrasound, apply coupling gel and place the head over the treatment area.
4
Set parameters: Program the beat frequency (IFT), stimulation frequency (TENS/MS), or ultrasound mode (continuous/pulsed), then set the intensity and session timer, the standard setup routine for an ift physiotherapy machine.
5
Begin gradually: Start the session and slowly raise the intensity to the patient’s tolerance. Monitor throughout and adjust as needed.
6
Conclude and remove: Let the timer finish, then reduce intensity to zero before removing the pads or probe.
7
Clean and store: Clean the pads, lead wires, and probe per manufacturer guidance, and store everything in the carry case in a dry place.
4 in 1 Combination IFT+TENS+MS+US Physiotherapy Machine Therapy Microcontrolled
  • Medi-Pulse 4-in-1 main unit: 1
  • Lead wires (dual channel)
  • Electrode pads (set)
  • Power cord (110V/220V)
  • Instruction manual
  • Qualified certification document
  • Carry case

Settings:

Physiotherapy and rehabilitation clinics Hospitals and healthcare facilities Professional physiotherapy treatment rooms Sports rehabilitation and recovery centres Clinical settings needing several electrotherapy modalities in one unit Professional home-visit physiotherapy services

Used By:

Qualified physiotherapists and clinicians
Professional use only

Use only by or under the supervision of a qualified physiotherapist or clinician.

No pacemakers or implants

Do not use on patients with cardiac pacemakers or other active implanted electronic devices.

Pregnancy and carotid sinus

Do not use over the carotid sinus or during pregnancy unless directed by a qualified clinician.

Avoid sensitive areas

Do not place electrodes over the eyes, transcerebrally, or across the chest without appropriate clinical guidance.

Raise intensity gradually

Start at the lowest setting and increase slowly to the patient’s tolerance, the recommended approach for any interferential current therapy machine.

Use coupling gel

Always apply a suitable coupling gel before using the ultrasound head.

Monitor the patient

Check comfort and skin condition throughout, and stop immediately if irritation occurs.

Inspect before use

Check lead wires, pads, and the ultrasound probe for damage before each session.

Clean and store

Clean accessories per manufacturer guidance and store the unit in its carry case in a dry place.

Questions

Frequently Asked Questions

Interferential Therapy (IFT), TENS, muscle stimulation (MS), and 1 MHz ultrasound therapy.
Dual channel with four output pads.
4-pole and 2-pole modes, with a beat frequency of 0 to 150 Hz.
1 MHz in continuous or pulsed mode, at 3.5 W/cm².
1 to 99 mA.
Anywhere from 0 to 99 minutes.
220 V, 50 Hz
A qualified physiotherapist or clinician, or someone working under their supervision
Patients with cardiac pacemakers or other active implants. It should not be used over the carotid sinus or during pregnancy unless directed by a qualified clinician.
The main unit, dual-channel lead wires, electrode pads, an ultrasound probe, a power cord, an instruction manual, a certification document, and a carry case.
