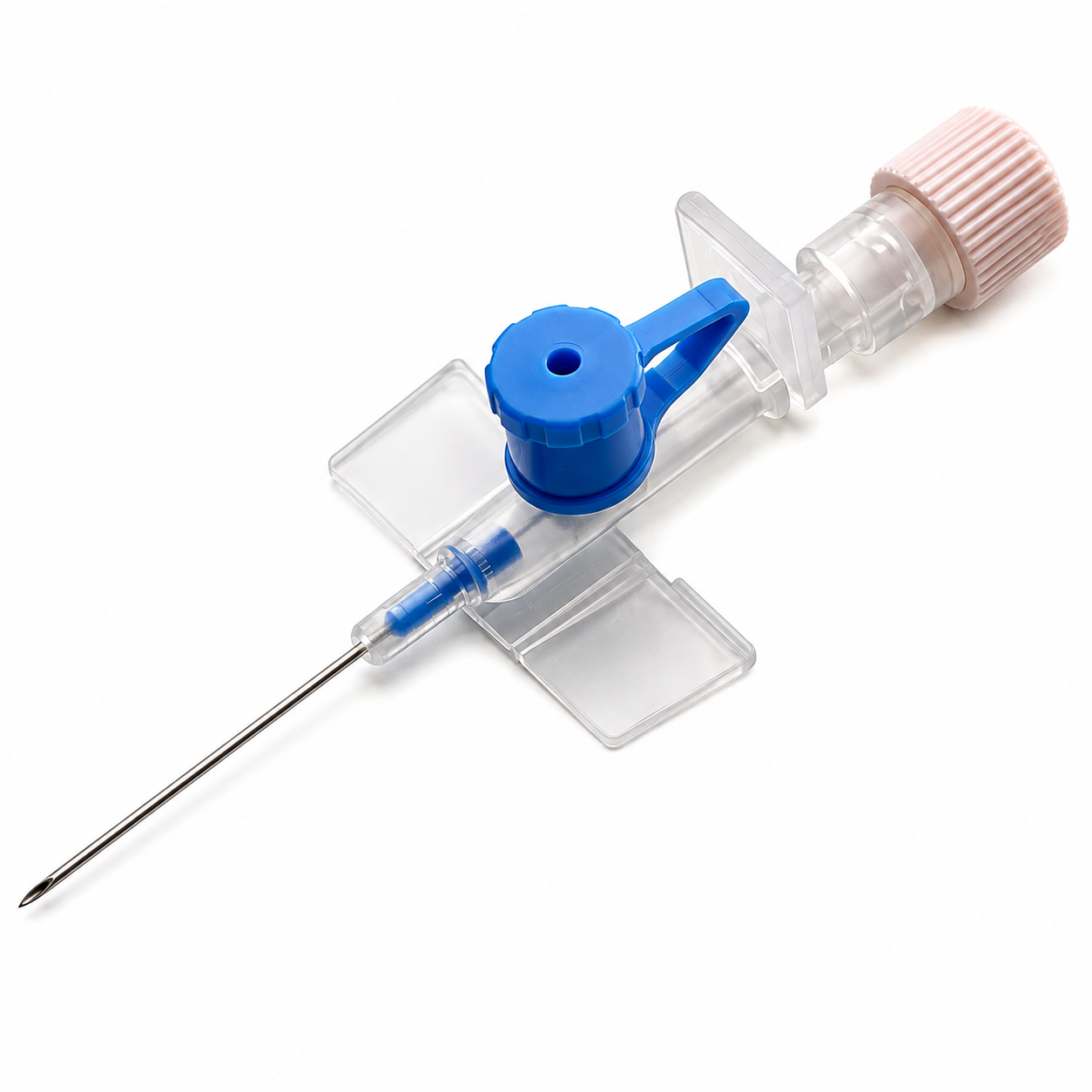

I.V. Catheter With Injection Valve and Wings

$20

Sterile, disposable design: : This IV catheter is built for safe, efficient venous cannulation.:

Integrated injection port: : Comes with a protective cover, allowing medication administration without repeated needle pricks.:

Flexible wings: : Enable secure fixation to the skin.:

Radiopaque lining: : Supports accurate detection during radiographic procedures.:

Top Highlights

Specification: Value
Model: MED001
Injection Valve: Integrated, with protective plug
Latex-Free: Yes
Radio-Opaque: Yes

Buy Now

Guaranteed Safe And Secure Checkout

The MED001 I.V. Catheter with Injection Valve and Wings is designed to provide reliable, comfortable intravenous access while reducing patient discomfort and infection risk. Its stainless steel, silicone-tipped needle has an ultra-sharp universal bevel for smooth skin penetration with reduced trauma. An integrated injection port with a protective cover allows medication administration without repeated needle punctures, while flexible wings support secure fixation to the skin. The catheter includes a radiopaque line for accurate detection under X-ray, along with a luer cap for safe closure when not in use. Made from medical-grade materials and EO-sterilized, the IV catheter's peripheral design is non-pyrogenic, latex-free, and compatible with standard IV devices, suiting both routine infusion therapy and emergency applications.

8 Available gauge sizes

19-45 mm Length range

EO Sterilization method

Single-use Intended use

Key features

1 Ultra-sharp, silicone-tipped needle:

The IV needle catheter supports smooth skin penetration with reduced trauma.

2 Integrated injection port:

Allows medication delivery without additional needle punctures.

3 Protective plug:

Helps minimize contamination when the injection port is not in use.

4 Flexible wings:

Support secure, stable fixation of the intravenous catheter to the skin.

5 Radiopaque line:

Enables clear visibility under X-ray for catheter identification. Smooth catheter surface: Designed for patient comfort.

6 Universal luer taper:

Compatible with standard IV sets and devices, suited as a catheter for IV fluids administration.

7 Sterile and disposable:

Non-pyrogenic and EO sterilized for single-use safety.

Model	MED001
Product Type	With Injection Valve and Wings
Material	Medical-grade polymer catheter, stainless steel needle
Sterilization	EO sterilized
Usage	Single use
Latex Free	Yes
Radio-Opaque	Yes

Select the right size:: Choose the appropriate catheter size according to the intended clinical application.

Insert correctly:: Use standard aseptic venipuncture technique to insert the IV needle catheter into the vein.

Confirm access:: Check venous access through the catheter's flashback chamber.

Advance and withdraw:: Advance the catheter as required and withdraw the needle after successful cannulation.

Secure with wings:: Use the flexible wings to position and secure the catheter appropriately.

Connect equipment:: Attach compatible IV equipment through the universal luer taper for infusion.

Administer medication:: Use the integrated injection port for medication administration when required.

Close when not in use:: Cap the injection port with the protective plug between uses.

Confirm placement radio-graphically:: Use the Radiopaque line for catheter identification during radio graphic procedures when required.

Used For:

Routine intravenous infusion therapy Emergency care applications Medication administration via the integrated injection port

Used In:

Hospitals clinics and emergency care settings

Single-use only:

Sterile, non-pyrogenic, and EO sterilized; intended for single use.

Follow aseptic technique:

Use standard aseptic technique during IV catheter peripheral insertion and handling.

Minimize contamination:

Close the injection port with the protective plug when not in use.

Dispose properly:

Discard the used catheter in an appropriate sharps container after use.

What is the injection port used for?

It allows medication administration without repeated needle punctures, and includes a protective plug to help minimize contamination when not in use.

What sizes are available?

Eight sizes, ranging from 0.6 mm to 2.1 mm outer diameter, with lengths between 19 mm and 45 mm.

Is this catheter reusable?

No, it is EO sterilized and intended for single use only.

Is this catheter latex-free?

Yes, the IV catheter is latex-free.

Can this catheter be seen on an X-ray?

Yes, it includes a radiopaque line for accurate detection during radiographic procedures.

What is the catheter made from?

The intravenous catheter body is made from medical-grade polymer, with a stainless steel, silicone-tipped needle.

What equipment is this catheter compatible with?

As a catheter for IV fluids delivery, it connects to standard IV devices via a universal lure taper.

Color	Outer Diameter	Length	Flow Rate
Orange	2.1 mm	45 mm	300 ml/min
Grey	1.8 mm	45 mm	200 ml/min
White	1.5 mm	45 mm	140 ml/min
Green	1.3 mm	45 mm	90 ml/min
Pink	1.1 mm	33 mm	61 ml/min
Blue	0.9 mm	25 mm	36 ml/min
Yellow	0.7 mm	19 mm	15 ml/min
Violet	0.6 mm	19 mm	13 ml/min
