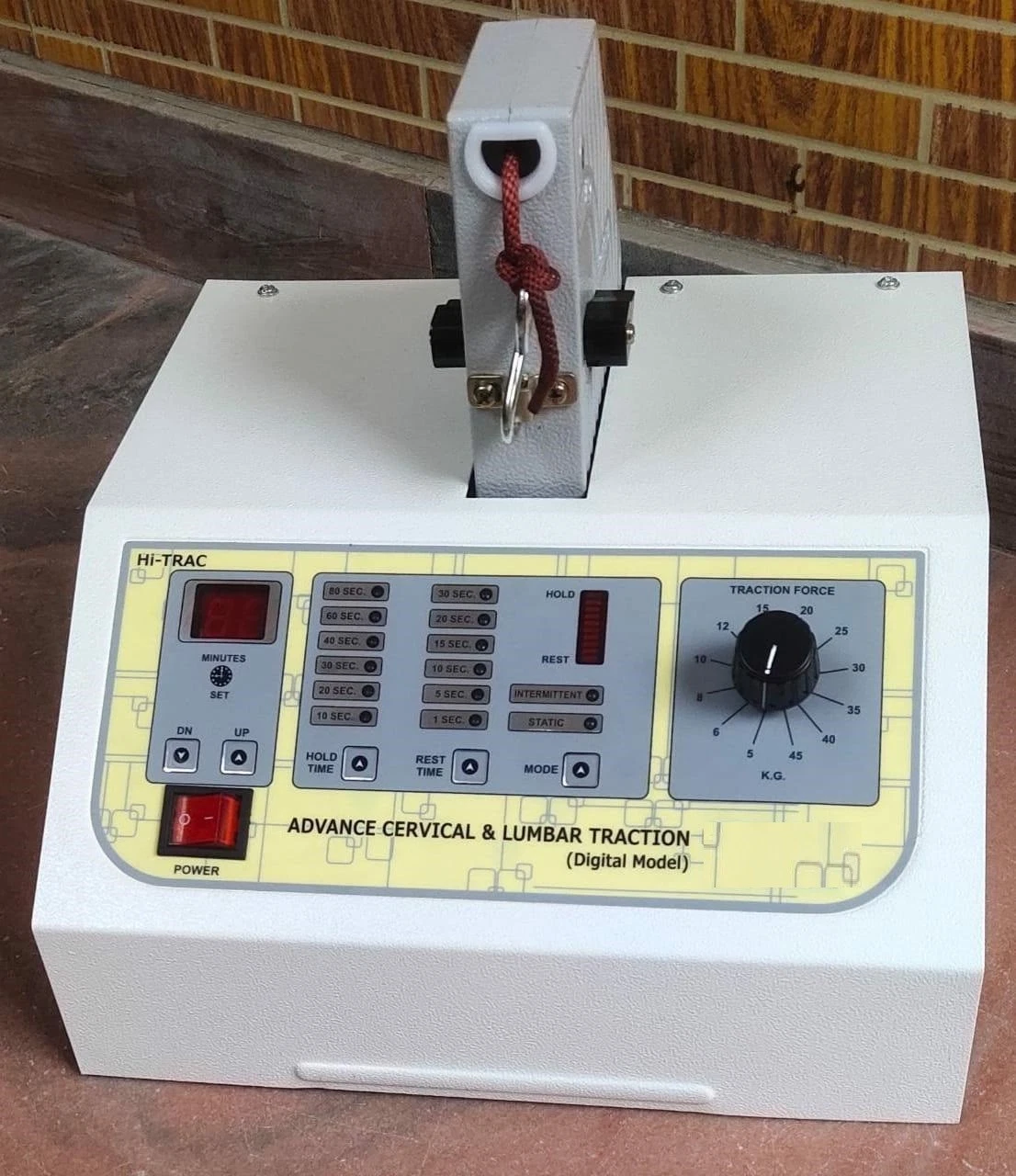

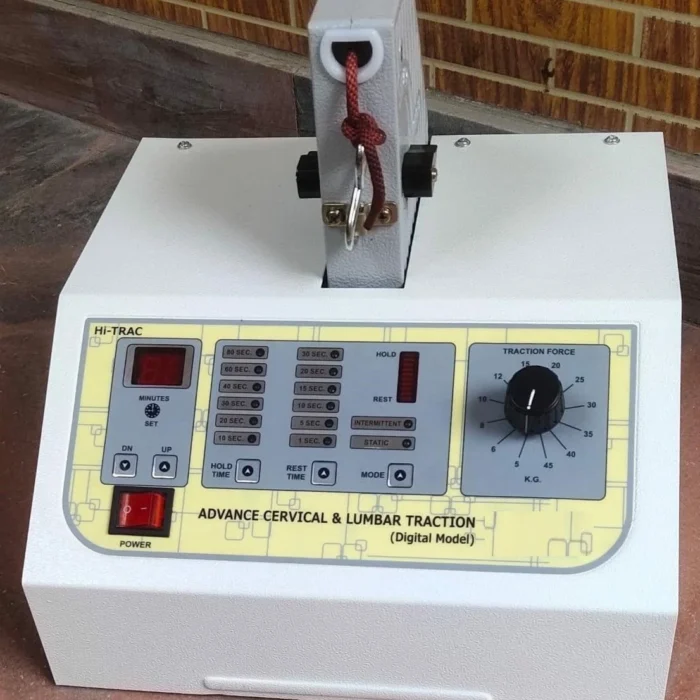

Digital Traction Unit for Cervical & Lumbar Therapy–Advanced Solid-State Traction Machine
$359.20
Advanced Physiotherapy Machine: Designed for cervical (neck) and lumbar (lower back) therapy::
Controlled Mechanical Traction: Delivers controlled traction to the cervical and lumbar regions of the spine::
Solid-State Traction System: Features a reliable solid-state system::
Digital Timing Controls: Allows digital control of treatment timing::
Adjustable Hold and Release Intervals: Provides adjustable traction hold and release settings.::
Traction-Force Range: Supports controlled traction within the specified force range.::
Clinical Applications: Designed for professionally supervised physiotherapy and rehabilitation.::
Individualized Treatment: Suitable for clinical treatment plans where spinal traction is considered appropriate.::
Top Highlights
- Product Name
- Digital Traction Unit
- Device Type
- Cervical & Lumbar Traction Machine
- Technology
- Solid-State Digital Control
- Treatment Areas
- Cervical and Lumbar Spine
- Hold Time
- 10–80 seconds
- Release Time
- 1–30 seconds
- Traction Force
- 5–45 kg
- Maximum Force With Doublers
- Up to 90 kg, as specified
- Timer
- Electronic Timer
- Power Consumption
- 85 watts
- Input Voltage
- 110V / 220V AC, 50 Hz
Guaranteed Safe And Secure Checkout
The Digital Traction Machine for Physiotherapy is a mechanical traction device designed to support selected spinal rehabilitation programmes. It applies a controlled longitudinal pulling force through appropriate traction accessories to the neck or lower back. The machine offers selectable hold and release intervals to support intermittent traction cycles. Its digital display and electronic timer help practitioners configure and monitor treatment settings according to the manufacturer's instructions and the patient's clinical requirements. For cervical traction, the appropriate cervical collar and spreader bar are used according to the prescribed setup. For lumbar traction, a pelvic belt and compatible supporting accessories are used to establish the required traction arrangement. This machine is intended for use in physiotherapy clinics, hospitals, rehabilitation centres, and other professional healthcare facilities. Treatment selection and operating parameters should be determined by a qualified healthcare professional.
2-in-1
Cervical and lumbar traction applications
5–45 kg
Standard specified traction-force range
80 sec
Maximum selectable hold time
30 sec
Maximum selectable release time
| Product Name | Digital Traction Unit for Cervical & Lumbar Therapy |
| Technology | Solid-State Electronic Control |
| Device Type | Physiotherapy Traction Machine |
| Treatment Applications | Cervical and lumbar traction |
| Hold Time | 10, 20, 30, 40, 60, 80 seconds |
| Release Time | 1, 5, 10, 15, 20, 30 seconds |
| Traction Force | 5 to 45 kg |
| Input Voltage | 110V / 220V AC |
| Control | Function |
|---|---|
| Digital Display | Displays available treatment and timing information |
| Hold Time Selection | Selects the traction hold interval |
| Release Time Selection | Selects the release interval for intermittent traction |
| Traction Force Adjustment | Adjusts traction force within the permitted operating range |
| Start/Stop Control | Controls treatment operation according to the instruction manual |
1
Prepare the machine: Place the traction unit on a stable, dry surface in an appropriate clinical environment.
2
Inspect the equipment: Check the power cord, fuses, safety switch, belts, collar, spreader bar, and connections.
3
Assess the patient: Have a qualified healthcare professional determine whether traction is appropriate.
4
Select the treatment area: Choose the prescribed cervical or lumbar traction arrangement
5
Attach the accessories: Connect the required collar, spreader bar, pelvic belt, or other approved accessories according to the manual.
6
Position the patient: Ensure correct positioning and secure support before starting the machine.
7
Complete treatment safely: Stop the machine and release traction according to the manufacturer's instructions before removing the accessories.
- Main digital traction unit
- Cervical collar
- Spreader bar
- Pelvic traction belt
- Traction doublers
- Main power cord
Clinical Settings
Physiotherapy and rehabilitation clinics
Hospitals and healthcare facilities
Orthopedic rehabilitation departments
Physical medicine and rehabilitation centers
Professional physiotherapy treatment rooms
Treatment Applications
Cervical traction as part of selected neck rehabilitation programmers
Lumbar traction as part of selected lower back rehabilitation programmers
Professionally supervised management of certain neck pain conditions
Selected lower back conditions involving nerve-root symptoms
Individualized musculoskeletal rehabilitation programmers
Complementary physiotherapy interventions where traction is clinically appropriate
Read the instruction manual
Understand the operating procedures before use
Qualified personnel
Use the machine under appropriate professional supervision
Patient assessment
Check suitability and contraindications before treatment.
Correct accessories
Use only approved and compatible traction components.
Force limits
Never exceed the manufacturer's specified traction-force limits.
Patient monitoring
Maintain communication with the patient throughout the treatment.
Safety switch
Verify that the safety control works correctly before each session.
What is a digital traction machine used for?
It is a physiotherapy device designed to provide controlled mechanical traction to the cervical and lumbar regions of the spine in selected, professionally supervised treatment programmes.
Can the machine be used for both cervical and lumbar traction?
Yes. The supplied product description specifies both applications, using the appropriate accessories and treatment configuration.
What is the traction-force range?
The stated standard range is 5 to 45 kg. The supplier specifies up to 90 kg with traction doublers, subject to the manufacturer's approved operating limits.
What hold times are available?
The available hold times are 10, 20, 30, 40, 60, and 80 seconds.
What release times are available?
The available release times are 1, 5, 10, 15, 20, and 30 seconds.
Does the machine have a digital display?
Yes. The supplied specifications identify a digital display and electronic timer.
What is the power consumption?
The specified power consumption is 85 watts.
What input voltage does the machine support?
The supplied specifications state 110V / 220V AC, 50 Hz. Confirm the actual unit's voltage configuration before connecting it to a power supply.
Is a patient safety switch included?
Yes. The patient safety switch is listed among the supplied accessories.
What accessories are supplied?
The listed accessories include a cervical collar, spreader bar, pelvic belt, traction doublers, main power cord, patient safety switch, and fuses.
Is the traction table included?
A traction table is not listed in the supplied accessories. Confirm availability and pricing separately with the supplier.
