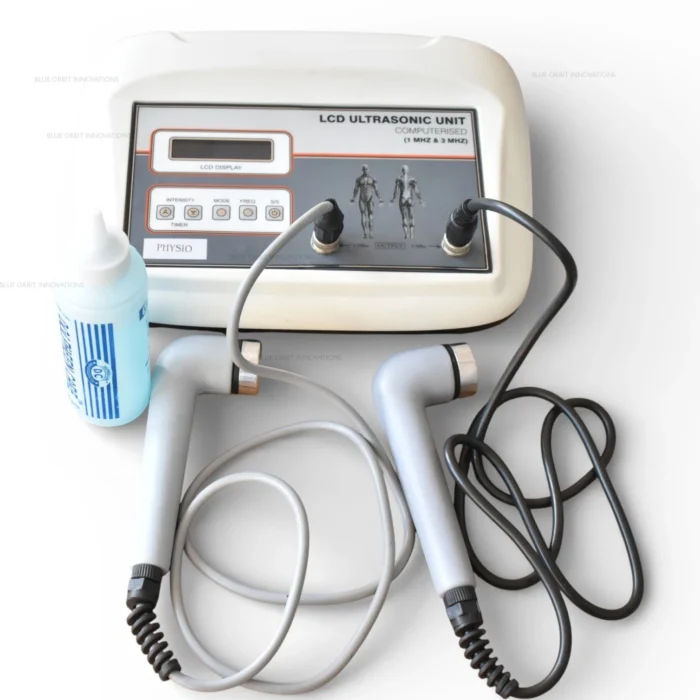

1 MHz & 3 MHz Ultrasound Therapy Physical Pain Relief Therapeutic Machine

CE certified ISO 13485 certified

Questions about this product? — our team will reach out.

Ultrasound Therapy

1 MHz & 3 MHz Ultrasound Therapy Physical Pain Relief Therapeutic Machine

$140.80

Dual frequency therapy: Combines 1 MHz for deep tissue and 3 MHz for superficial tissue in a single 1 and 3 mhz ultrasound machine.::

27 preset programs: Microprocessor-controlled settings cover the most common therapy protocols.::

Two operating modes: Continuous mode for deep thermal treatment, pulsed mode for acute and non-thermal therapy.::

Simple controls: LCD display with separate frequency indicators and feather touch buttons.::

Top Highlights

Frequencies: 1 MHz and 3 MHz
Preset Programs: 27
Timer: 0 to 30 minutes
Power Density: Up to 3.5 W/cm² (continuous)

Buy Now

Guaranteed Safe And Secure Checkout

The 1 and 3 MHz ultrasound machine is a microprocessor-controlled physiotherapy device built for pain relief and tissue healing, functioning as a reliable professional ultrasound therapy machine across clinical settings. Two frequencies let the user match treatment depth to the condition: 1 MHz reaches up to 5 cm for muscles, joints, and ligaments, while 3 MHz works at 2 to 3 cm for tendons, scar tissue, and surface structures, making it a versatile ultrasound pain relief machine for varied conditions. Continuous and pulsed modes, 27 preset programs, and an adjustable timer give precise control over each session. It runs on 110V or 220V and ships with two applicators, gel, and a carry bag, suiting physiotherapy clinics, rehabilitation centers, and sports recovery settings.

2 Ultrasound frequencies

27 Preset programs

3.5 W/cm² Maximum power density (continuous)

30 min Maximum treatment time

Key features

1 Deep tissue frequency

The 1 MHz setting penetrates up to 5 cm, suited to muscles, joints, ligaments, and chronic pain, rounding out the 1 and 3 mhz ultrasound machine's dual-depth coverage.

2 Superficial tissue frequency

The 3 MHz setting targets 2 to 3 cm, suited to tendons, scar tissue, and acute injuries; on its own, a 3 mhz ultrasound machine setting like this is well suited to surface-level work.

3 Clear display

LCD screen with separate LED indicators shows which frequency is selected.

4 Ready-made protocols

27 preset programs cover the most common therapy needs, giving the ultrasound therapy machine for pain a program for nearly every case.

5 Flexible pulsed mode

Runs at 100 Hz with pulse ratios of 1:1, 1:3, 1:5, 1:7, and 1:9.

6 Adjustable timer

Sessions can be set anywhere from 0 to 30 minutes.

7 Strong output

Power density reaches up to 3.5 W/cm² in continuous mode. Consistent delivery: Microprocessor control keeps energy output accurate and reliable.

8 Global compatibility

Works on 110V or 220V, 50/60 Hz AC power.

9 Responsive buttons

Feather touch controls are easy to operate.

Model	ULTRASONIC 1 & 3 MHz
Frequencies	1 MHz and 3 MHz
Display	LCD with LED frequency indicators
Preset Programs	27 therapy programs
Pulse Rate	100 Hz
Pulse Ratios	1:1, 1:3, 1:5, 1:7, 1:9
Output (Continuous)	15 acoustic levels
Output (Pulsed)	21 acoustic levels
Power Density	3.5 W/cm² (continuous)
Modes	Continuous and pulsed
Timer	0 to 30 minutes
Control	Microprocessor controlled
Power Supply	110V or 220V, 50/60 Hz AC

Control	Function
Control	Function
1 MHz Indicator	Lights up when 1 MHz is selected
3 MHz Indicator	Lights up when 3 MHz is selected
LCD Display	Shows the selected program, treatment time, intensity, mode, and other settings
PROG. / MODE	Selects a preset program or manual mode
TIMER (+)	Adjusts treatment time in manual mode
INTENSITY (−)	Lowers the ultrasound output intensity
PULSE / 1+3 MHz	Selects pulse mode and frequency, depending on the program
START / STOP	Starts or stops the treatment session
Treatment Probes	Deliver the selected ultrasound output to the treatment area

CE certified

ISO 13485 certified

Connect the probe: Attach the right ultrasound probe to the unit following the manufacturer's instructions.

Power on: Switch on the machine and let the LCD display start up.

Choose a program: Press PROG./MODE to pick a preset program or manual mode.

Select the frequency: Choose 1 MHz or 3 MHz with the frequency control, and check that the matching indicator lights up; selecting 3 MHz alone turns the unit into a focused 3 mhz ultrasound machine for surface work.

Pick the mode: Select continuous or pulsed mode where available.

Set the time: In manual mode, set the treatment duration with the timer control.

Apply gel: Spread an adequate layer of ultrasound coupling gel on the treatment area and probe head, the same step followed with any professional ultrasound therapy machine.

Set the intensity: Adjust it according to the protocol prescribed by a qualified healthcare professional, much as with any ultrasound muscle therapy machine.

Start the session: Press START to begin.

Keep it moving: Move the probe continuously and evenly over the area rather than holding it still.

Finish safely: Reduce the output, press STOP, remove the probe, and clean the probe head and treatment area.

ULTRASONIC 1 & 3 MHz main unit: 1
1 MHz applicator: 1
3 MHz applicator: 1
Ultrasound gel: 1
Multi-country power cord: 1
Storage and travel carry bag: 1
Instruction booklet

Treatment Areas:

Deep muscles Tendons Ligaments Joint and particular tissues Plantar fascia Shoulder and knee areas Ankle and elbow areas

Settings:

Physiotherapy clinics Sports rehabilitation centers Rehabilitation clinics Hospitals and healthcare facilities Orthopedic and rehabilitation centers Sports therapy facilities Home use

Used By:

Physiotherapists Rehabilitation specialists Sports therapists Orthopedic professionals Trained healthcare professionals Adults under professional supervision

Trained operation

Use only by trained or qualified healthcare professionals.

Use coupling gel

Always apply a suitable ultrasound gel for proper acoustic contact, whether on this unit or any other 3 mhz ultrasound machine setting.

Keep it moving

Do not leave the treatment head still on one spot while output is active.

Follow protocol

Choose frequency, intensity, pulse mode, and treatment time according to the appropriate professional protocol.

Monitor the patient

Stop treatment if the patient feels unusual or increasing pain or discomfort.

Contraindicated areas

Do not use over areas where therapeutic ultrasound is contraindicated, including certain tumors, the eyes, reproductive organs, or a pregnant uterus.

Extra caution

Take additional care around impaired circulation, damaged or at-risk skin, and other contraindicated conditions, as with any ultrasound pain relief machine.

Inspect first

Check the probe, cable, and connectors for visible damage before use.

Keep dry

Keep the unit away from water and moisture, and never immerse the device or probe.

Clean and store

Clean the probe per the manufacturer's instructions and store the equipment in a clean, dry, protected area, as recommended for any ultrasound therapy machine for pain or ultrasound muscle therapy machine.

What is the difference between 1 MHz and 3 MHz on the 1 and 3 mhz ultrasound machine?

1 MHz reaches up to 5 cm and suits muscles, joints, ligaments, and chronic pain. 3 MHz works at 2 to 3 cm and suits tendons, scar tissue, and acute surface injuries.

How many preset programs are there?

27 microprocessor-controlled programs covering common therapy protocols.

What operating modes are available?

Continuous mode for deep thermal treatment and pulsed mode for acute and non-thermal therapy.

What pulse ratios can I choose?

1:1, 1:3, 1:5, 1:7, and 1:9, at a pulse rate of 100 Hz.

How long can a session be?

Anywhere from 0 to 30 minutes.

What power supply does it use?

110V or 220V, 50/60 Hz AC, with a multi-country power cord included.

What comes in the box?

The main unit, 1 MHz and 3 MHz applicators, ultrasound gel, a power cord, a carry bag, and an instruction booklet.

Who should operate this device?

Trained or qualified healthcare professionals, or adults under professional supervision.

Where should it not be used?

Over areas where therapeutic ultrasound is contraindicated, including certain tumors, the eyes, reproductive organs, or a pregnant uterus.

Is this device certified?

Yes, it is CE and ISO 13485 certified.
