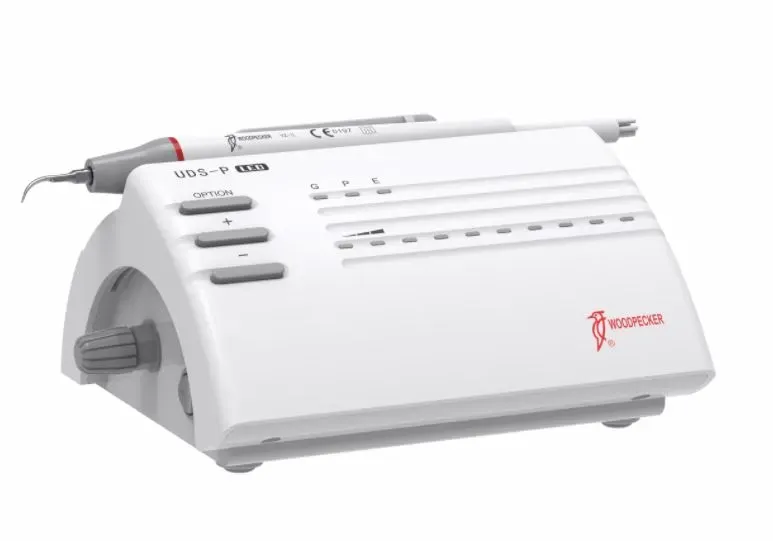

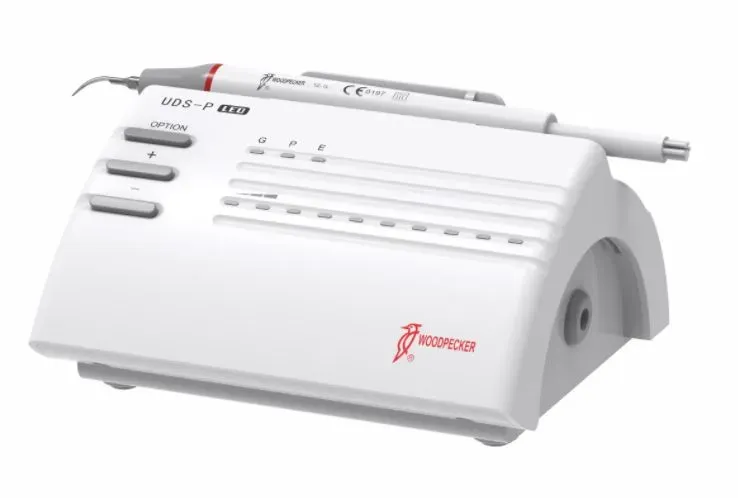

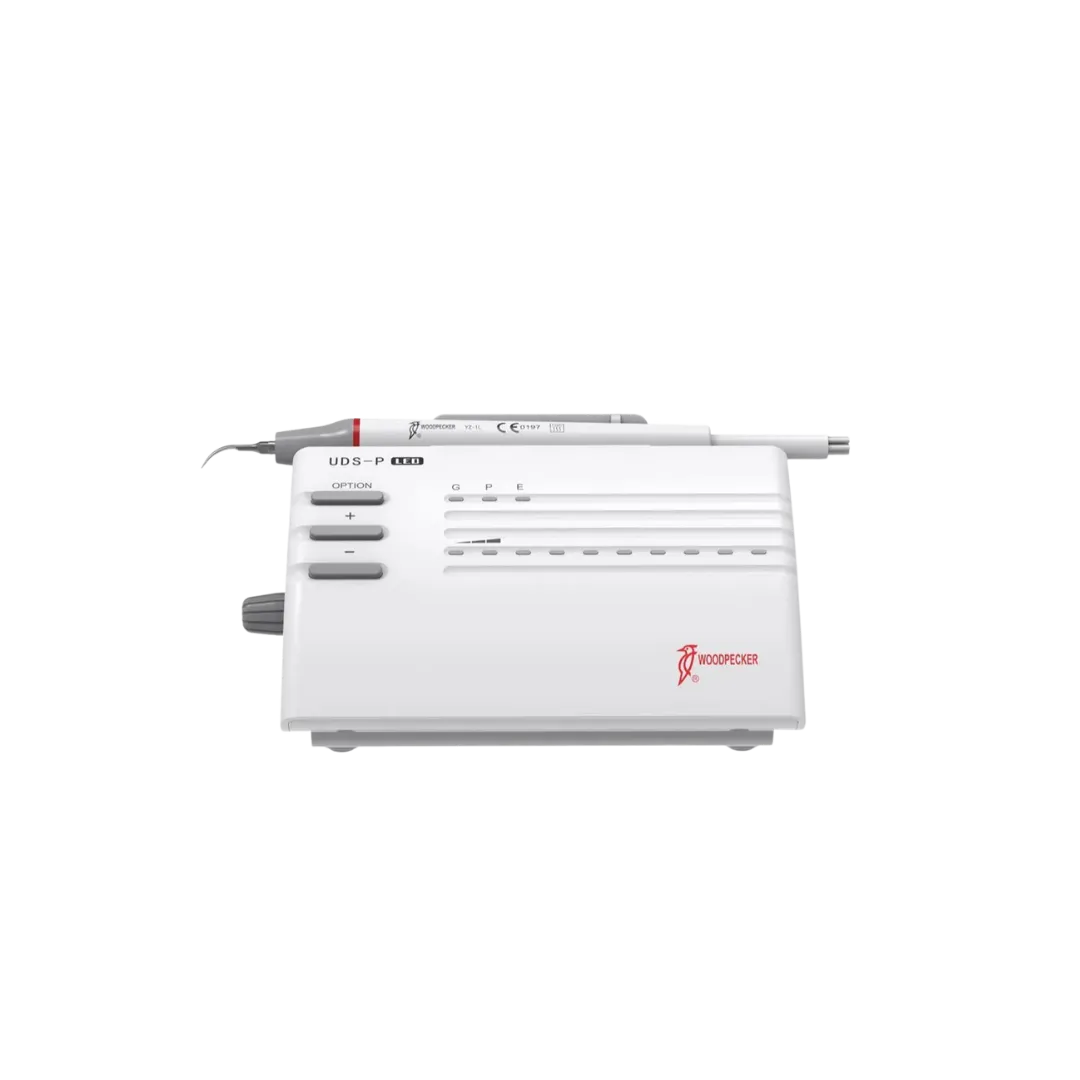

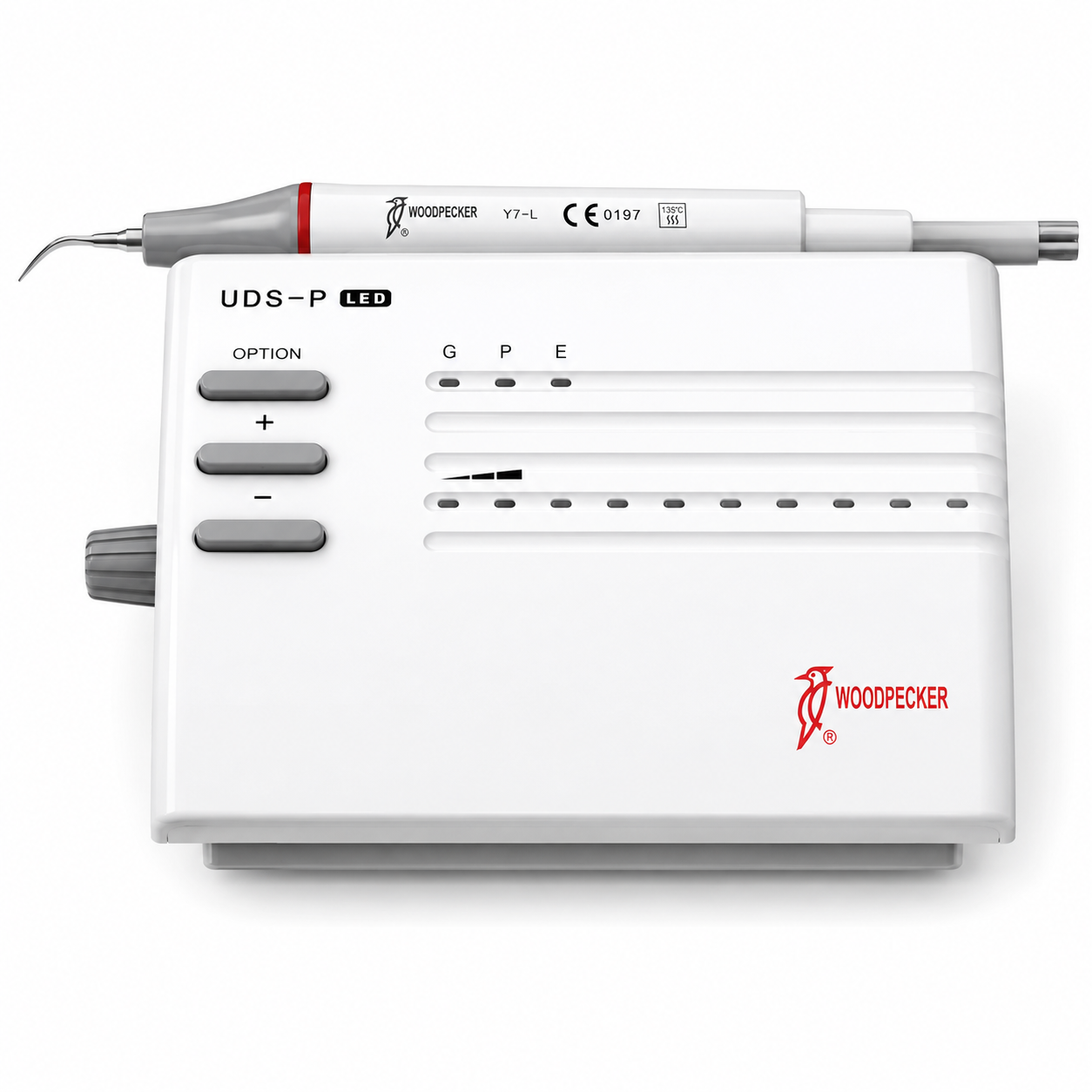

Woodpecker UDS-P LED Ultrasonic Scaler

The Woodpecker UDS-P LED Ultrasonic Scaler covers scaling, periodontal therapy, and endodontic work in one system. The titanium alloy handpiece is lightweight but mechanically stable for consistent ultrasonic delivery. The detachable design lets you sterilize separately without breaking down the control box, and it autoclaves at standard 135°C temperatures your office already uses.

The silica gel cable resists degradation better than rubber and withstands repeated sterilization cycles without cracking. The integrated LED provides direct illumination during subgingival work, eliminating the need to rely only on overhead lighting. Operating at 28kHz with automatic frequency tracking maintains peak performance throughout your procedure day. The unit delivers stable output regardless of tip load or high clinical case volume.

Product Uses

1. The Woodpecker UDS-P LED Ultrasonic Scaler handles scaling procedures across all patient presentations.
2. You'll use it for supragingival scaling, rapidly eliminating bacterial plaque, calculus, and tea stains during routine prophylaxis without damaging the enamel or gingiva.
3. Subgingival scaling with appropriate slim-diameter tips works effectively with adjusted water pressure and power settings.
4. Periodontal therapy cases benefit from variable power output that lets you tailor treatment to clinical needs.
5. Endodontic applications, including gutta-percha removal and post removal, use the endo function without a separate system.
6. Hygiene and maintenance scaling for implant patients works well with controlled power settings.

How to Use

1. Verify your power supply matches unit specifications: 110V or 220-240V at 50Hz/60Hz. Connect the 24V adapter to a wall outlet and attach the handpiece to the control box connector until it seats securely.

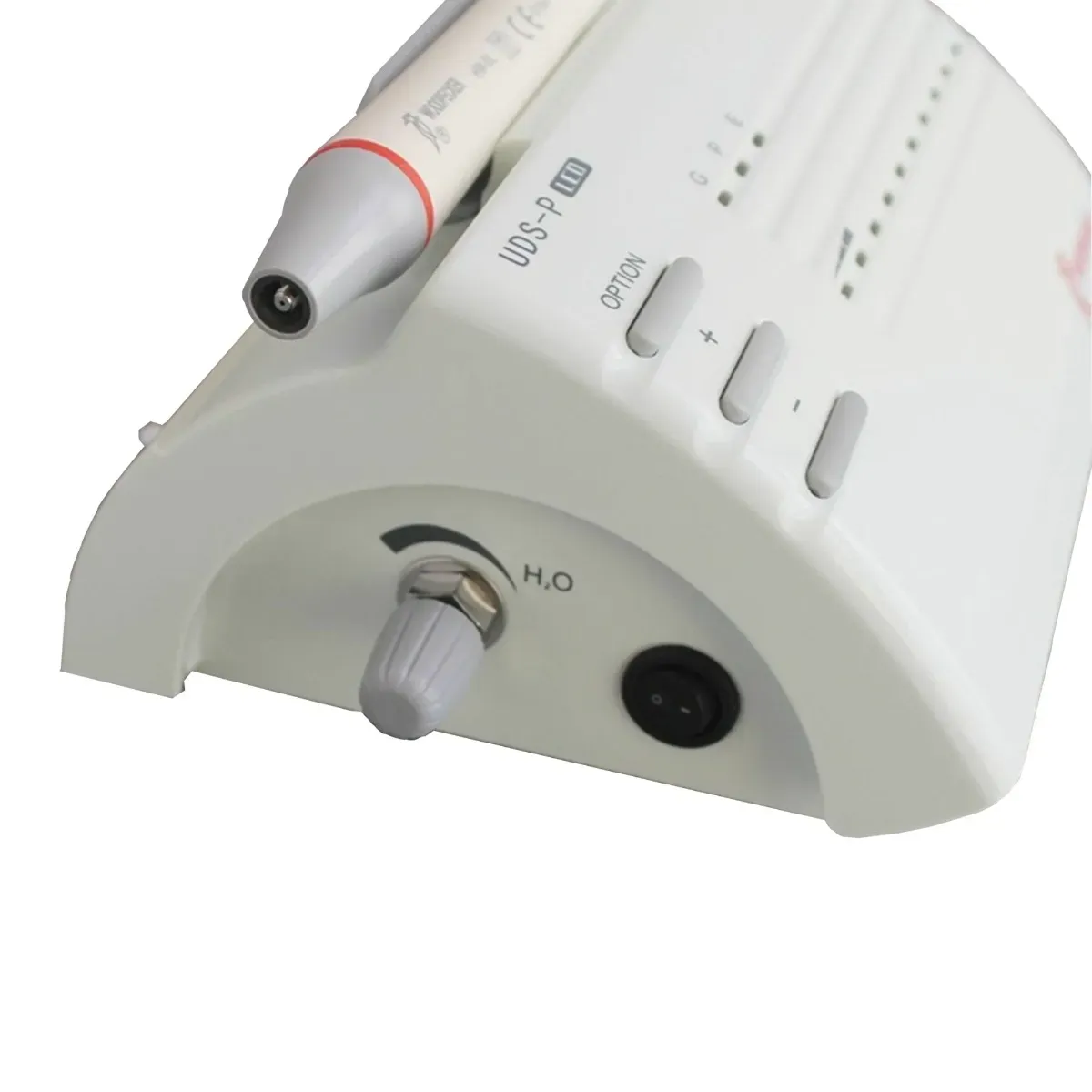

2. Install your selected scaling tip using the torque wrench, turning clockwise until snug. Run sterile water through the tip before each patient to confirm adequate flow. Adjust water pressure between 0.1 and 5 bar, depending on the procedure, typically 1.5 to 2.5 bar for supragingival and 0.8 to 1.5 bar for subgingival work.
3. Start with power output at 3 to 5W and increase gradually as needed. Position the tip at roughly 45 degrees to the tooth's long axis and let ultrasonic vibration do the work rather than applying hand pressure. The dental scaler with water flows continuously throughout the procedure for tip cooling and debris flushing.
4. After finishing, remove the tip immediately and allow the handpiece to cool naturally. Clean the exterior with sterile gauze and place the handpiece, scaling tip, torque wrench, endo wrench, and endochuck in sterile packaging before autoclaving. After sterilization, allow all components to cool to room temperature before reassembly. Lubricate O-rings with dental lube to maintain flexibility.

Product Features

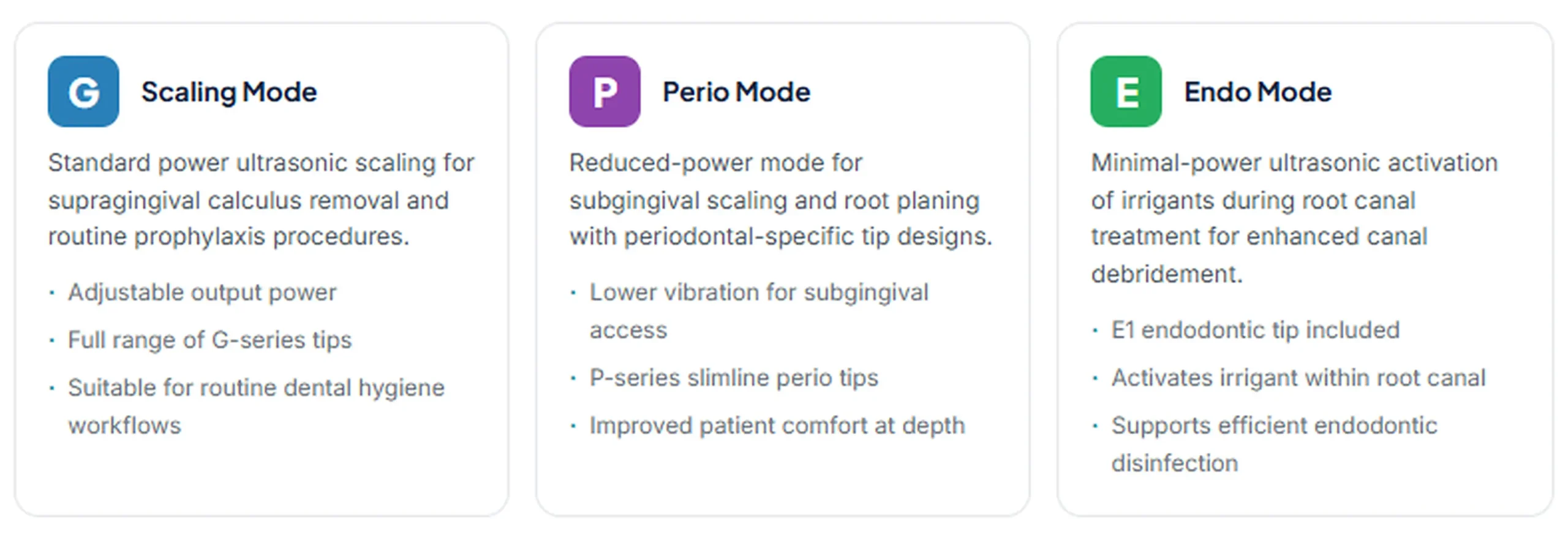

1. The dental hygienist ultrasonic scaler offers scaling, perio, and endo functions in one system.
2. The titanium alloy handpiece is lightweight and durable.
3. Detachable handpiece design simplifies sterilization and reduces cross-contamination.
4. The silica gel cable resists degradation from repeated autoclave cycles.
5. LED illumination integrated into the handpiece improves visibility of calculus deposits.
6. Automatic frequency tracking maintains optimal operating frequency regardless of load conditions.
7. Digital power controls allow precise output adjustment from 3W to 20W.
8. The ultrasonic dental scaler tip produces cavitation that assists in calculus removal without requiring aggressive hand pressure.
9. Water cooling keeps the tip at safe temperatures throughout procedures.
10. EMS compatibility allows the connection of EMS handpieces to this control box or Woodpecker handpieces to EMS systems.
11. Class II electric shock protection and waterproofing meet safety standards for dental equipment.

Technical Specification

Product Packaging

1. 1 x Main unit
2. 1 x Handpiece
3. 1 x Foot switch

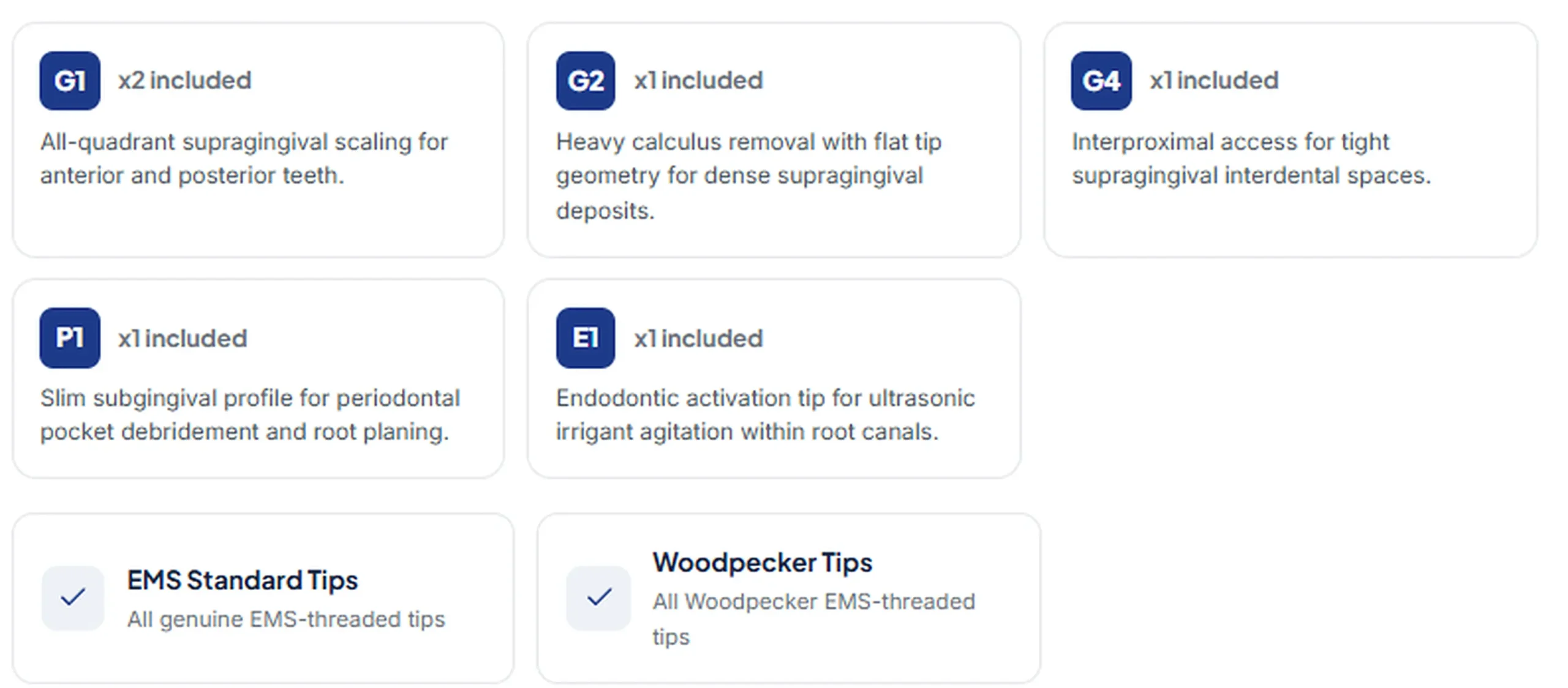

4. 6 x Tip (G1 - 2, G2 - 1, G4 - 1, P1 - 1, E1 -1)
5. 1 x Adapter
6. 1 x Torque wrench
7. 1 x Operation manual

Handling Tips

1. The dental scaler with water requires a consistent water flow during operation.
2. Never run the tip without water flowing to the treatment area.
3. Inspect the silica gel cable regularly for cracks or degradation and discontinue use if damage appears.
4. Store the ultrasonic dental scaler unit in a clean, dry location away from direct water spray.
5. Use autoclaving only for sterilization. Do not use boiling, iodine, alcohol, or other non-standard methods.
6. Always allow handpieces to cool completely before storage.

Medical Disclaimer

This equipment is designed for licensed dental professionals only. Improper use can result in tissue damage or patient injury. Follow all sterilization protocols outlined in the manufacturer's manual and use only approved autoclave methods at specified temperatures and pressures.

Warranty and Support

The manufacturer provides a one-year warranty covering equipment defects and component failures under normal clinical use. Damage from improper handling, unauthorized sterilization methods, or misuse is generally excluded from coverage. Technical support is available through authorized distributors and directly from the manufacturer.

Certifications

The Woodpecker UDS-P LED Ultrasonic Scaler holds CE certification confirming compliance with European medical device standards, and FDA clearance for the United States market. These certifications verify that the device meets established safety and performance standards for clinical dental use.

FAQ

Q. Who is eligible to purchase this device?

A. Sales are restricted to licensed dental professionals, dental clinics, hospitals, and authorized dental equipment distributors. Proof of professional credentials may be required prior to purchasing this dental scaler with water.

Q. Can I use this scaler for home dental care?

A. No. This is professional dental equipment strictly restricted to clinical use by licensed professionals.

Q. Is specific training required to operate this Woodpecker ultrasonic scaler handpiece?

A. Yes. Proper training in dental scaling techniques, ultrasonic instrumentation, and clinical infection control protocols is required for safe operation.

Q. Does this work with the EMS equipment I already own?

A. Yes, EMS handpieces work with this Woodpecker control box, and Woodpecker handpieces work with EMS control boxes.

Q. Why is water pressure important during use?

A. Water cools the tip, flushes debris, and improves patient comfort. Without adequate water flow, the tip generates dangerous heat and cleaning efficiency drops.

Q. What water pressure works best?

A. Supragingival scaling uses 1.5 to 2.5 bar. Subgingival work uses 0.8 to 1.5 bar to minimize discomfort.

Q. How often do I need to replace the cable?

A. The silica gel cable lasts several years with proper care. Replace it if visible cracks appear or water begins leaking.

Q. Can I use standard ultrasonic tips with this system?

A. Most standard ultrasonic tips are compatible. The Woodpecker handpiece accepts standard scaler tips, making replacement ordering easier.

Conclusion

The Woodpecker UDS-P LED Ultrasonic Scaler provides reliable performance across scaling and endodontic applications. The titanium handpiece, autoclavable design, and silica gel cable reflect practical engineering that recognizes how dental equipment gets used daily. LED visualization improves your ability to identify calculus deposits, and the water-cooled tip design means you're working efficiently without tissue trauma. If you're upgrading your scaling capabilities, this dental hygienist equipment option delivers the functionality you need without unnecessary complexity.
