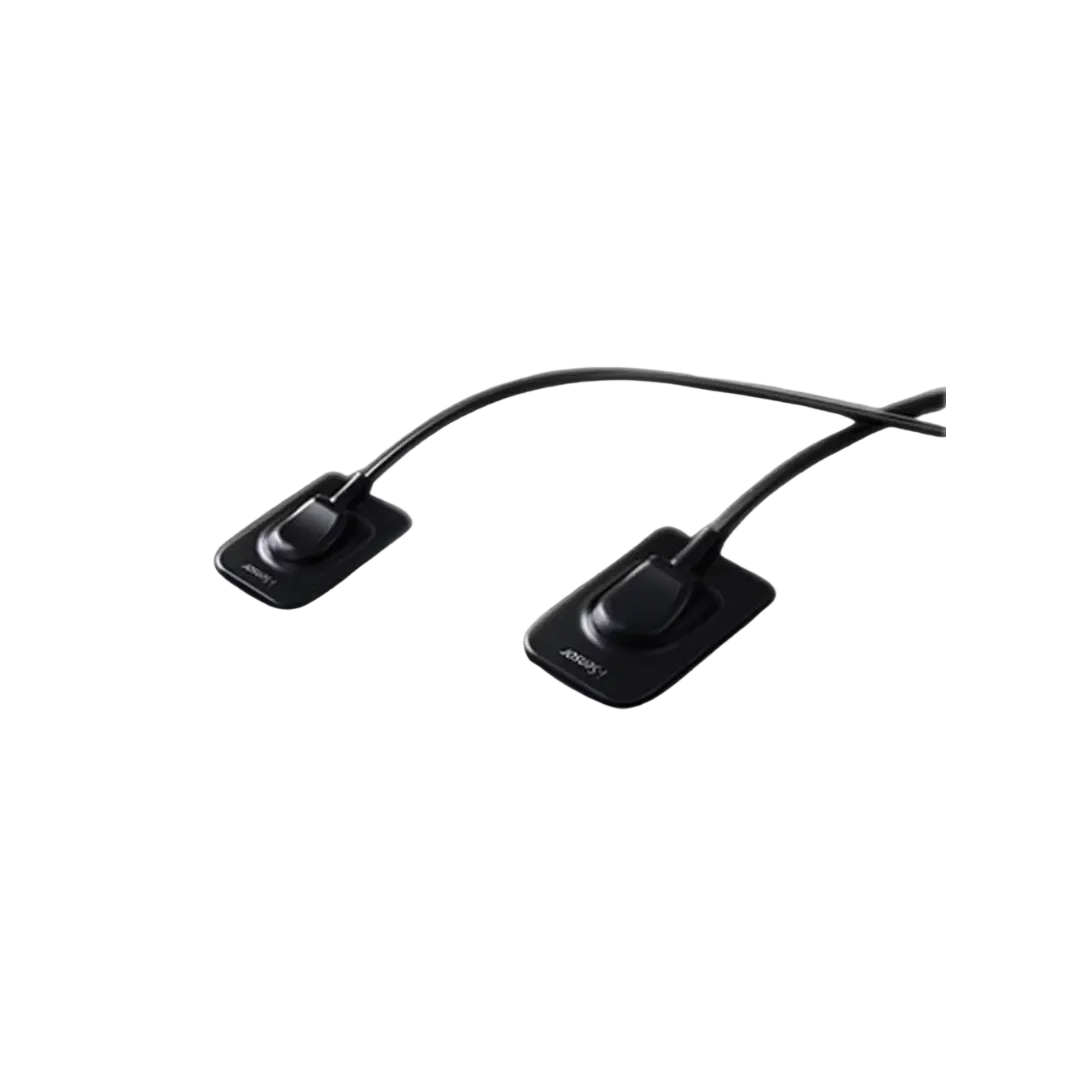

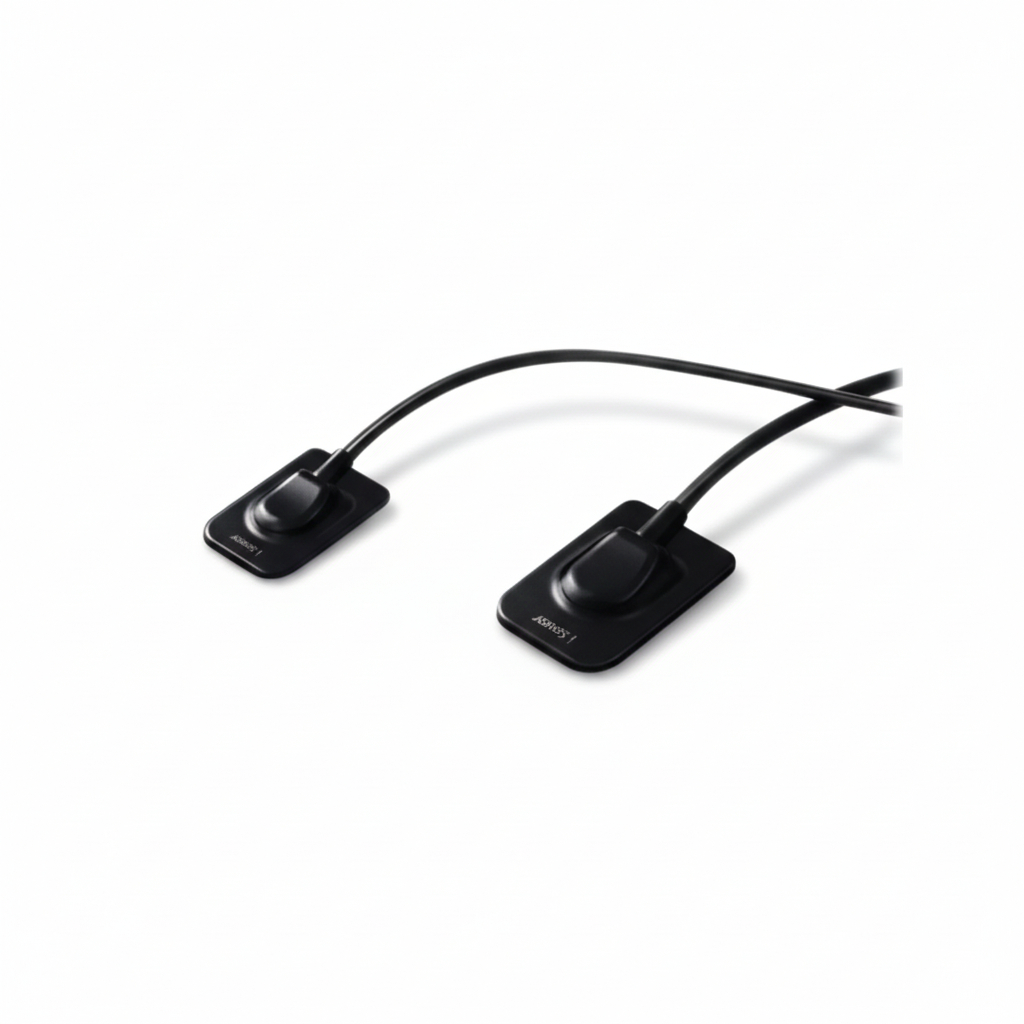

Woodpecker I Sensor RVG Size 1 Digital Dental X-Ray Sensor

The Woodpecker RVG i Sensor Size 1 is a straightforward intraoral digital imaging solution that eliminates film radiography. The dental xray sensor integrates seamlessly with standard dental X-ray generators and connects directly to your practice management software via USB.

At just 4.5mm thick, its durable, ultra-slim design simplifies positioning for patients with limited mouth opening or anatomical constraints. By converting X-ray data instantly, this digital dental x ray sensor eliminates processing time entirely. This gives you immediate access to images for clinical decision-making and patient discussion, while the included software handles all the technical processing.

Additionally, the software features an automatic, color-coded display that identifies and marks permanent and deciduous tooth structures. This immediate visual identification is especially valuable for managing mixed dentition cases and complex treatment planning scenarios.

Product Uses

1. Capturing diagnostic radiographs for caries detection in individual teeth and interproximal areas
2. Evaluating endodontic cases before, during, and after root canal therapy to assess canal anatomy and obturation quality
3. Assessing bone levels and periodontal health in periodontal disease management and monitoring
4. Evaluating dental implant sites for bone density and ridge anatomy prior to surgical placement
5. Capturing bitewing radiographs for routine dental examinations and preventive care protocols
6. Assessing tooth position and alignment in orthodontic treatment planning and progress monitoring
7. Evaluating prosthetic fit for crowns, bridges, and fixed restorations
8. Capturing periapical radiographs for tooth-specific diagnostic purposes and treatment documentation
9. Visualizing impacted teeth and anatomical anomalies in surgical planning and assessment
10. Recording baseline and follow-up images for treatment comparison and patient education

How to Use

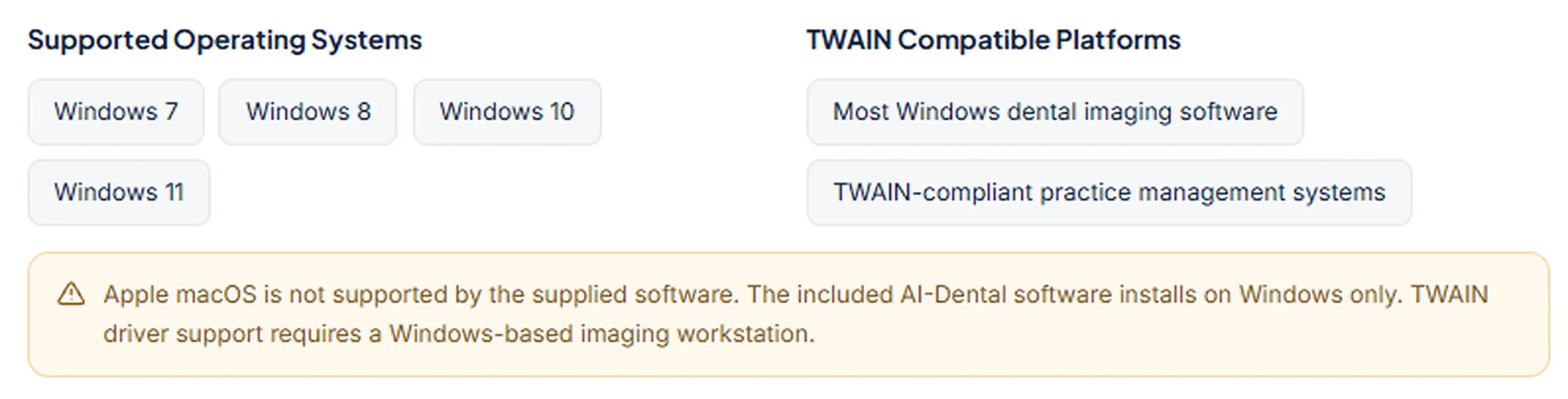

1. Installation begins with verifying your computer meets system requirements. The Woodpecker RVG i Sensor Size 1 operates on Windows operating systems with standard hardware specifications. Download the imaging software from the manufacturer's website or use the provided installation media, then follow the on-screen installation prompts.
2. Connect the sensor to your computer using the provided 2.7-meter USB cable. This length accommodates most dental operatory setups without requiring additional cable extensions. Attach the power adapter to the sensor unit and confirm it powers on properly. Your Windows system should recognize the device automatically. If the system doesn't identify the sensor, install the driver files included with your setup materials.
3. Once the software is running, enter the patient information into the system. Select the appropriate image type from the software menu, whether you need periapical, bitewing, or occlusal radiographs. Ensure your X-ray generator is set to the appropriate exposure settings for the specific radiograph type you're capturing.
4. Position the i sensor woodpecker device intraorally according to your chosen radiographic technique. The slim 4.5mm profile facilitates easier positioning in the mouth compared to larger sensors. The ergonomic design with cut corner modifications prevents interference with palatal or floor-of-mouth tissues during capture. This makes the dental xray sensor easier to use in routine clinical workflows.
5. Trigger the X-ray exposure using your foot pedal or handheld control while the sensor is held in position. The sensor captures the X-ray data and transmits it to your computer simultaneously. Images appear immediately on your monitor, allowing for instant quality assessment. If you need to retake an image, you can do so without waiting for processing time.
6. Review the captured images using the software's built-in tools. You can adjust contrast, increase magnification, and modify brightness as needed for diagnostic purposes. The software allows annotation of specific areas of concern, which proves helpful for patient communication and referral documentation. Save images to the patient's file and the central image repository according to your practice's data management protocols.

Product Features

1. Ultra-slim 4.5mm design that simplifies sensor positioning and reduces patient discomfort during radiographic capture
2. Immediate image display eliminates processing delays and allows real-time quality assessment before the patient is dismissed
3. Integrated AI-Dental diagnostic system that automatically analyzes tooth structures, identifies deciduous/permanent teeth, and highlights common pathologies like carious lesions and periapical periodontitis
4. Color-coded tooth identification system that marks tooth positions automatically after image capture

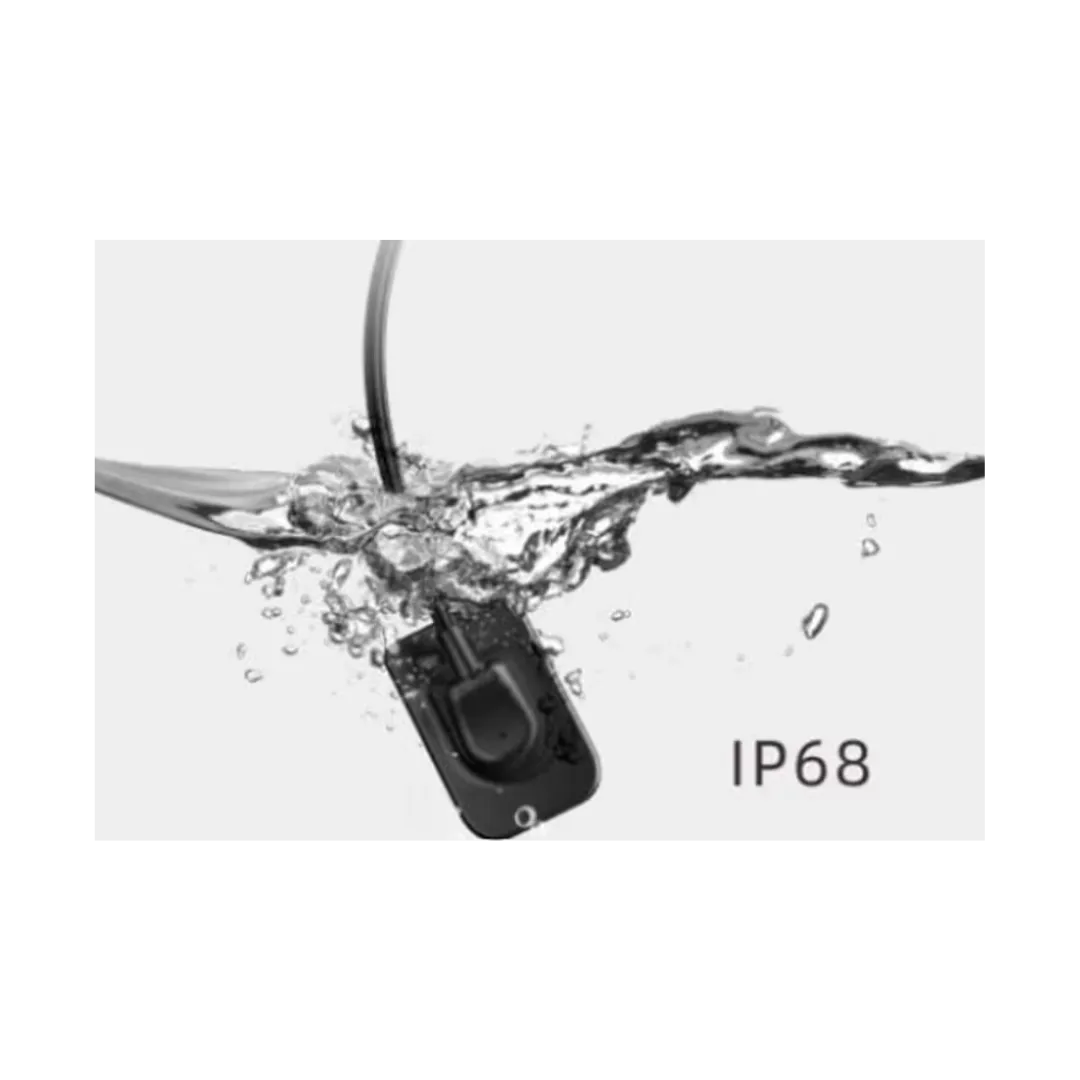

5. IP68 protection rating that allows complete sensor immersion in disinfectant solutions between patients
6. Robust CNC shell fusion and ultrasonic welding technology, verified through 80,000+ bending cycles, ensuring exceptional durability and lightweight handling
7. One-click software installation that requires minimal technical setup and training
8. Robust image enhancement tools, including contrast adjustment, magnification, and brightness modification
9. Comprehensive patient reporting features that generate detailed dental health reports for patient education
10. USB connectivity with a 2.7-meter cable length suitable for most dental operatory configurations
11. Lightweight design at 118 grams that reduces hand and arm fatigue during extended clinical use
12. Common dental disease detection features that identify and mark carious lesions and periapical pathology

Technical Specification

Handling Tips

1. The i sensor woodpecker device requires proper handling to maintain performance over time.
2. Always use disposable barrier sleeves for each patient to prevent cross-contamination. These barrier sleeves provide a protective layer between the sensor and oral tissues without compromising image quality significantly.
3. Between patients, wipe the sensor exterior with a surface-level disinfectant according to manufacturer guidelines.
4. Do not attempt to autoclave the sensor or expose it to high-temperature sterilization processes, as this damages internal electronic components.
5. The sensor can withstand complete immersion in approved disinfectant solutions because of its IP68 rating, which means you can submerge it for thorough disinfection when barrier sleeves are removed.
6. Store the sensor in a dry location when not in use. Avoid placing heavy equipment on top of the device to prevent stress on the housing.
7. Coil the USB cable loosely rather than wrapping it tightly, which can eventually damage the cable connections.
8. Check cable integrity regularly, particularly at the connection points where the cable enters the sensor housing.

Product Packaging

The Woodpecker RVG i Sensor Size 1 arrives with the sensor unit, a 2.7-meter USB cable, a power adapter, installation media or download instructions, and the basic user documentation. Additional barrier sleeves can be ordered separately as needed.

Medical Disclaimer

This i sensor woodpecker device is strictly for clinical use by licensed dental professionals. Operators must be trained in radiography, radiation safety, and infection control, and must maintain current, jurisdiction-mandated radiation safety certifications. Strict compliance with all federal and state radiation regulations is mandatory. The manufacturer and supplier assume no liability for misuse, improper handling, or off-label operation.

Warranty and Support

The Woodpecker RVG i Sensor Size 1 includes manufacturer support for installation and technical issues during the warranty period. Specific warranty terms vary by distributor and region. Contact your authorized dental equipment distributor for details on coverage duration and what is included. Technical support is available through standard communication channels during business hours.

Certifications

The Woodpecker RVG i-Sensor meets regulatory standards for dental imaging equipment in markets where it is distributed. Verify current certification status with your authorized distributor to confirm compliance with your region's specific medical device requirements.

FAQ

Q. Who is authorized to purchase this device?

A. Sales are strictly restricted to licensed dental professionals, dental clinics, hospitals, and authorized medical equipment distributors. Proof of a professional license is required.

Q. Can I use this for home dental care?

A. No. This is professional medical equipment restricted exclusively to clinical use by licensed practitioners.

Q. Does this sensor emit radiation?

A. No. The sensor is a passive detector that captures X-rays emitted from your standard dental X-ray generator.

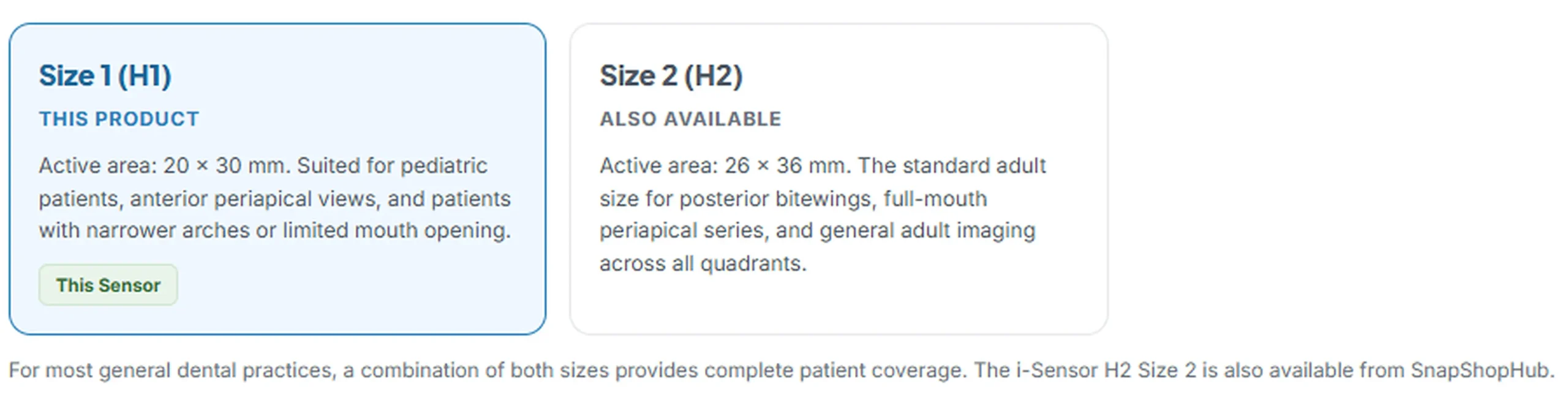

Q. What makes the Size 1 sensor different from the Size 2?

A. The Size 1 sensor measures 20mm x 30mm and works best for pediatric patients and anterior tooth imaging in adults. Size 2 sensors measure 26mm x 36mm and function better for posterior radiographs and bitewing imaging in adult patients. Most practices maintain both sizes to handle the full range of clinical scenarios.

Q. What are the image quality standards for this sensor?

A. The sensor delivers resolution greater than 12 line pairs per millimeter with a pixel size of 20 micrometers. This resolution meets diagnostic standards for caries detection, endodontic evaluation, and implant assessment. The intelligent software enhances image quality automatically during processing.

Q. How long does it take to see an image after capture?

A. Images display on your monitor immediately after the X-ray exposure completes. There is no processing delay as with traditional film-based radiography. This immediate feedback allows you to assess image quality and retake radiographs if needed while the patient is still in your operatory.

Q. Is infection control documentation included?

A. The device is IP68 rated for immersion disinfection. Barrier sleeves provide a physical barrier for each patient. The manufacturer provides guidance on disinfection protocols, though your practice's infection control procedures should always take precedence.

Q. Can this digital dental x ray sensor work with older X-ray generators?

A. Yes, the device works with standard dental X-ray generators currently in use. Verify compatibility with your specific generator before purchase, as some older or specialty units may have output characteristics that require adjustment.

Q. How many years does the sensor typically last?

A. With proper care and appropriate infection control protocols, the sensor functions for 5 to 7 years. The 80,000+ bending cycle durability testing demonstrates the robust construction that supports this lifespan in daily clinical use.

Q. What software support is available?

A. The manufacturer provides installation support and basic troubleshooting assistance. Software updates are available to maintain compatibility with evolving Windows operating systems and to add minor enhancements to image processing capabilities.

Q. Does this digital dental x ray sensor require radiation safety training?

A. Yes. Operators must comply with all federal and state radiation protection regulations. Current radiation safety certification is required in most jurisdictions before operating any X-ray equipment.

Q. Is this digital system a cost-effective upgrade from traditional film?

A. Yes. By eliminating ongoing expenses for film, chemical processing, and darkroom maintenance, the highly competitive dental x ray sensor price makes this an affordable, long-term investment for any modern practice.

Conclusion

The Woodpecker RVG i Sensor Size 1 provides a practical approach to intraoral digital radiography for dental practices. By eliminating the processing delays inherent in film-based radiography, this digital dental x ray sensor gives you immediate access to diagnostic information, streamlining your entire clinical workflow. Backed by robust CNC construction, Ai-Dental diagnostic software, and rigorous durability testing, the i-Sensor handles the demands of daily clinical use with ease. When evaluating intraoral imaging options, many practitioners consider this the best dental x ray sensor due to its exceptional balance of advanced clinical capability, patient comfort, and operational simplicity.
