Waldent Root Elevator Instruments Kit Set of 11 K2/4

The Waldent Root Elevator Instruments Kit Set of 11 is a collection of extraction instruments for removing teeth and retained roots while preserving bone. The dental extraction tool kit includes Flohr, Cryer, Coleman, Coupland, Warwick James, and Periosteal elevators in straight and angled configurations. Each instrument provides different mechanical advantages and blade shapes for specific extractions.

Root elevators create separation between the tooth and socket by inserting the tip, then applying gentle leverage. This expands the socket gradually rather than forcing the tooth out, which preserves alveolar bone and reduces soft tissue damage.

Product Uses

This dental extraction tool kit is designed to support precise and controlled tooth removal across different clinical scenarios.

1. Loosening teeth during extraction by separating the tooth from the socket wall.
2. Removing retained roots after tooth crown fractures.
3. Engaging interseptal bone in multirooted mandibular molars using the Cryer elevators.
4. Extracting root fragments from posterior teeth with angled access.
5. Reflecting the mucoperiosteal flap during surgical extractions.
6. Establishing initial tooth movement before forceps application.
7. Tissue-preserving extraction that minimizes bone loss.
8. Controlled removal of impacted teeth requires precise control of force direction.

How to Use

1. Examine tooth radiographically and clinically. Look at the root configuration, curvature, and any fusion. Decide the extraction approach based on findings.
2. Raise the flap if doing a surgical extraction. Use the periosteal elevator to reflect the mucoperiosteal tissue.
3. Start with a straight elevator, such as a Flohr Straight Pointed, to establish initial separation between the tooth and the socket.
4. Hold the instrument securely using a palm grip. Use a gentle rocking motion to progressively stretch and sever the periodontal ligament. Always follow the natural curvature of the root during extraction.
5. For multirooted molars with diverging roots, use Cryer's left or right elevator. Insert through the empty socket between roots to loosen the interseptal bone.
6. For elevators with flat handles (like the Warwick James), apply delicate wedging with a small twist of the wrist. Avoid pure lifting force or heavy leverage to reduce the risk of alveolar bone fracture.
7. For root fragments, use a Coleman Straight Serrated elevator. The serrations grip the fragment.
8. Change instruments as you progress. Use the right-angled elevator on one side, then the opposite angle on the other. Ensure you are applying a twist of the wrist rather than pure lifting force.
9. Never use an adjacent tooth as a fulcrum. Never use a buccal or lingual bone plate as a fulcrum. Use the socket or root surface of the tooth being removed.
10. Use the left hand to retract tissues and support the bone around the extraction site.
11. When the tooth loosens adequately, use forceps to complete the extraction.
12. Rinse instruments under water immediately. Ultrasonic clean for five to ten minutes, then autoclave.

Product Features

1. Eleven elevators in straight, left-angled, and right-angled configurations.
2. Blade shapes include pointed, serrated, flat, convex, and concave tips.

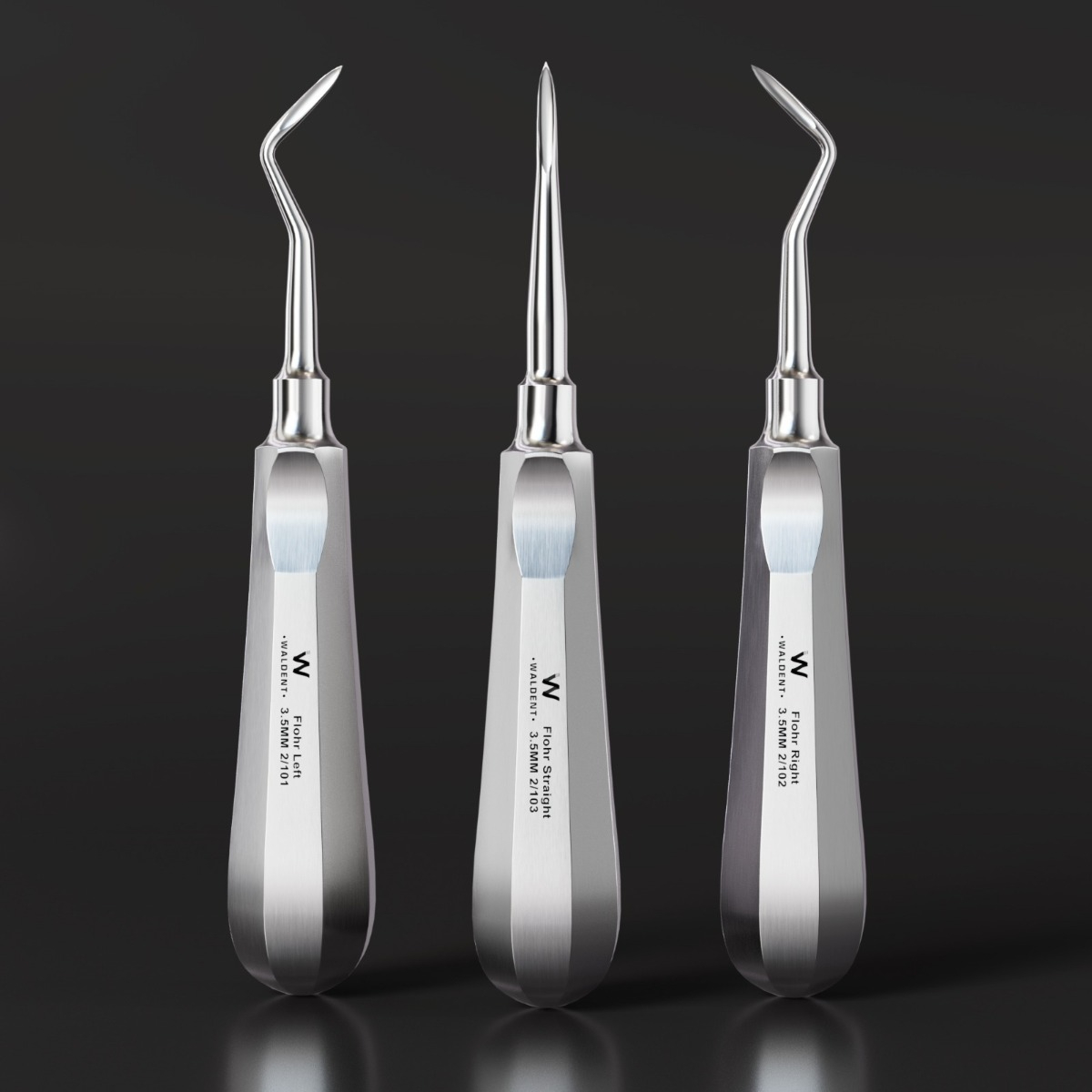

3. Flohr elevators with convex-concave geometry for root surface engagement.

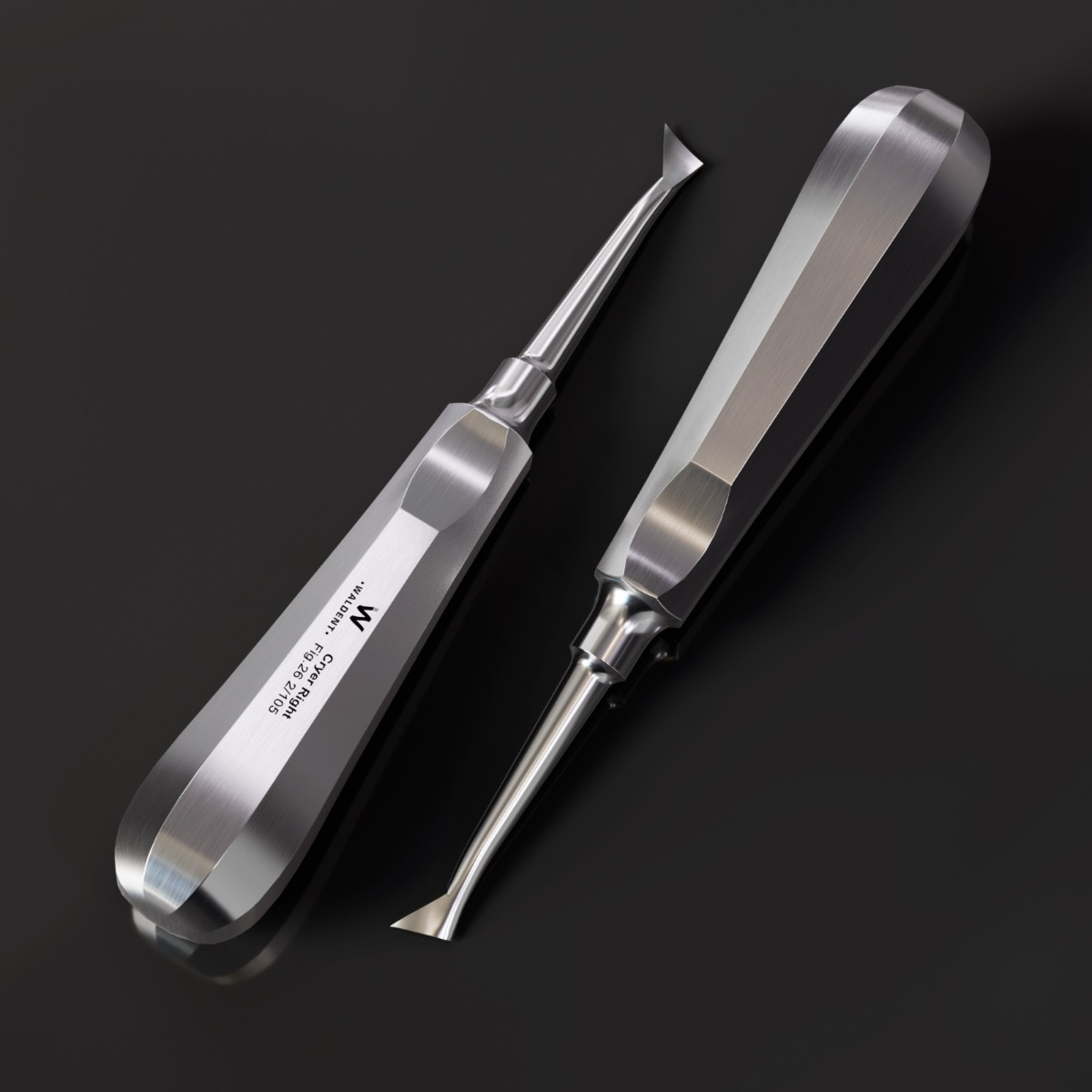

4. Cryer elevators, using wheel-and-axle mechanics for root separation.

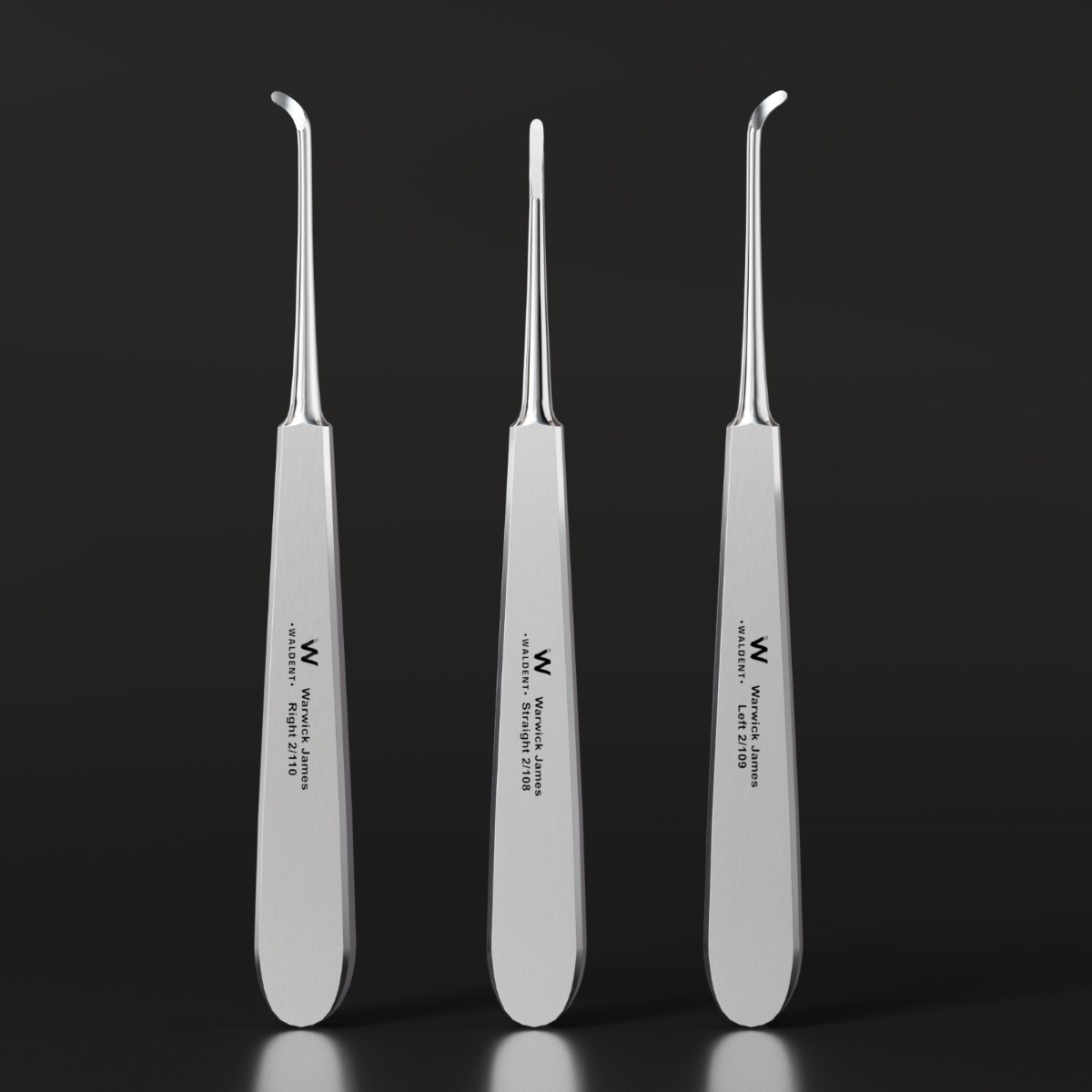

5. Warwick James elevators feature flat handles that decrease excessive force against the alveolar bone, reducing the incidence of fractures.
6. Coleman serrated tips for gripping root fragments.
7. Periosteal elevator for flap reflection.
8. High-quality stainless steel resistant to corrosion.
9. Durable reusable instruments for hundreds of uses.

Technical Specification

Handling Tips

1. Inspect elevators before use for bent shafts or dull tips. Bent elevators apply force incorrectly.
2. Keep instruments organized by type for quick access.
3. Never use an elevator as a prying tool on bone.
4. Rinse immediately after use before the blood and bone dry on the steel.
5. Use ultrasonic cleaning before autoclaving.
6. Dry completely before autoclaving to prevent water spots.
7. Autoclave at 121 to 132 degrees Celsius with 15 to 17 PSI pressure.
8. Store in a dry environment to prevent rust.
9. Replace instruments with stress cracks or significant corrosion.

Product Packaging

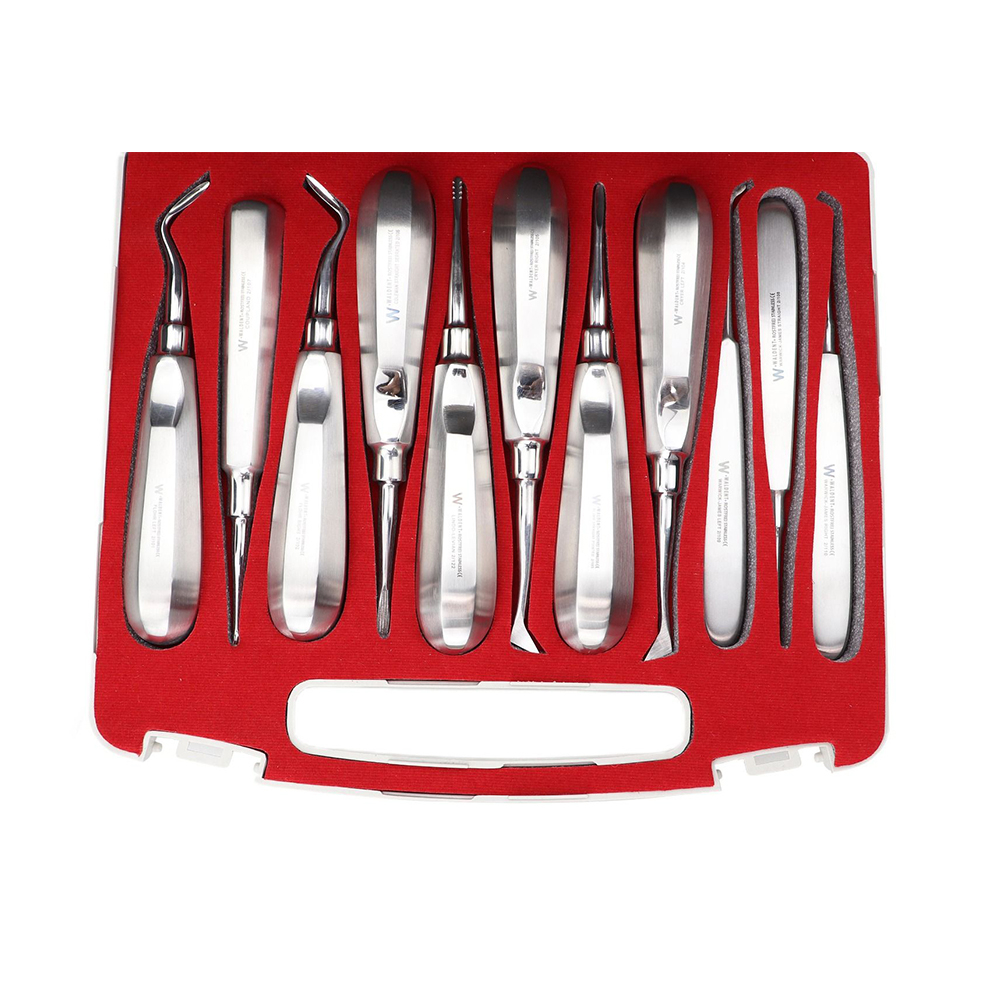

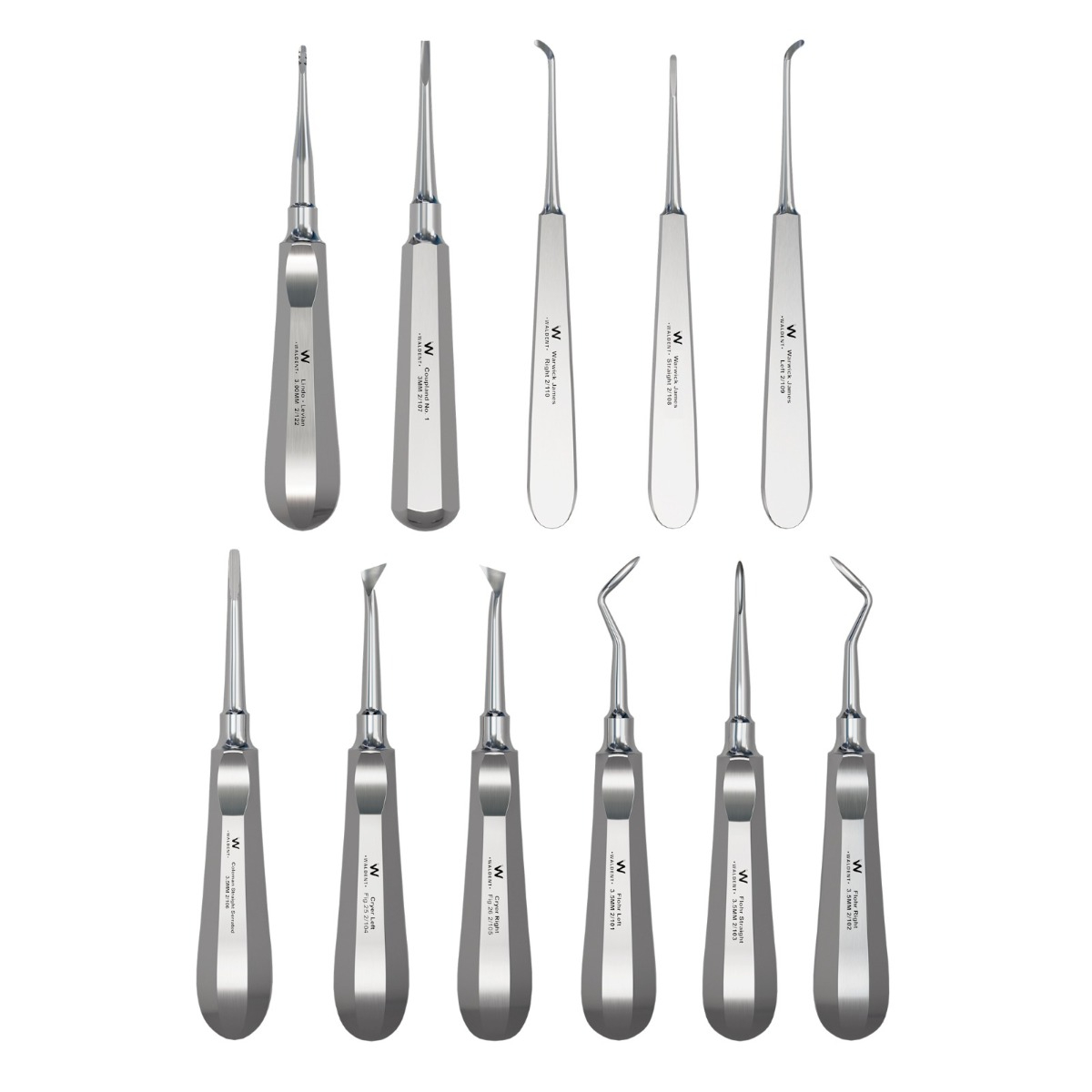

Waldent Root Elevator Set of 11:

1. 1 x Flohr Left
2. 1 x Flohr Straight Pointed
3. 1 x Flohr Right
4. 1 x Cryer Left
5. 1 x Cryer Right
6. 1 x Coleman Straight Serrated
7. 1 x Lindo-Levian
8. 1 x Coupland
9. 1 x Warwick James Straight
10. 1 x Warwick James Right
11. 1 x Warwick James Left

Medical Disclaimer

This product is for licensed dental professionals and oral surgeons only. You need training in extraction techniques and anatomy. Improper use can damage teeth, bone, and soft tissues. You are responsible for proper sterilization and infection control. The manufacturer and seller assume no liability for injuries or damages resulting from misuse, improper handling, or use outside the intended clinical application. These instruments must only be operated by qualified practitioners in a clinical setting. .

Warranty and Support

Waldent provides a standard manufacturer's warranty against defects in materials and workmanship. Warranty covers manufacturing defects only, not damage from dropping or misuse. Request replacement with proof of purchase if instruments arrive defective.

Certifications

The Waldent Root Elevator Kit meets applicable standards for dental surgical instruments. The passivated stainless steel resists corrosion. Instruments are safe for clinical use when properly sterilized and used according to standard extraction protocols. The kit is latex-free.

FAQ

Q: What is the difference between a Flohr and a Cryer elevator?

A: Flohr has a convex-concave blade that inserts between tooth and bone. Cryer uses wheel-and-axle mechanics through the empty socket to engage roots and interseptal bone.

Q: When do I use the Warwick James elevator?

A: Use it for delicate wedging with a small twist of the wrist. Its flat handle is specifically designed to decrease the heavy force against the bone, which reduces the incidence of bone fracture during extraction.

Q: Why is tissue preservation important during extraction?

A: Preserving bone reduces augmentation needed before implant placement, meaning faster implant timelines and better patient outcomes.

Q: Can I use a neighboring tooth as a fulcrum?

A: No. It can crack the adjacent tooth. Use the socket wall or root surface of the tooth being removed.

Q: How do I know when the tooth is loose enough for forceps?

A: Rock the tooth with the elevator. When it moves freely without elevator pressure, it's ready. Having the right dental extraction tool kit available ensures you have the right instrument for each step.

Q: Are these elevators suitable for surgical and non-surgical extractions?

A: Yes. This extraction tool works for both simple and surgical cases. Each dental root elevator in the set handles its designated area reliably.

Q: Is this kit suitable for an oral surgery office?

A: Yes. This oral surgery kit is designed for dental clinics, hospitals, and oral surgery practices

Conclusion

The Waldent Root Elevator Instruments Kit Set of 11 provides controlled tooth and root extraction instruments with multiple angles and tip shapes for different scenarios. Using this tool kit with proper technique preserves bone and soft tissue, reducing complications. The stainless steel is durable and reliable. A complete dental extraction tool kit in your operatory eliminates delays during procedures. Whether doing simple or complex surgical extractions, this oral surgery kit handles both well.
