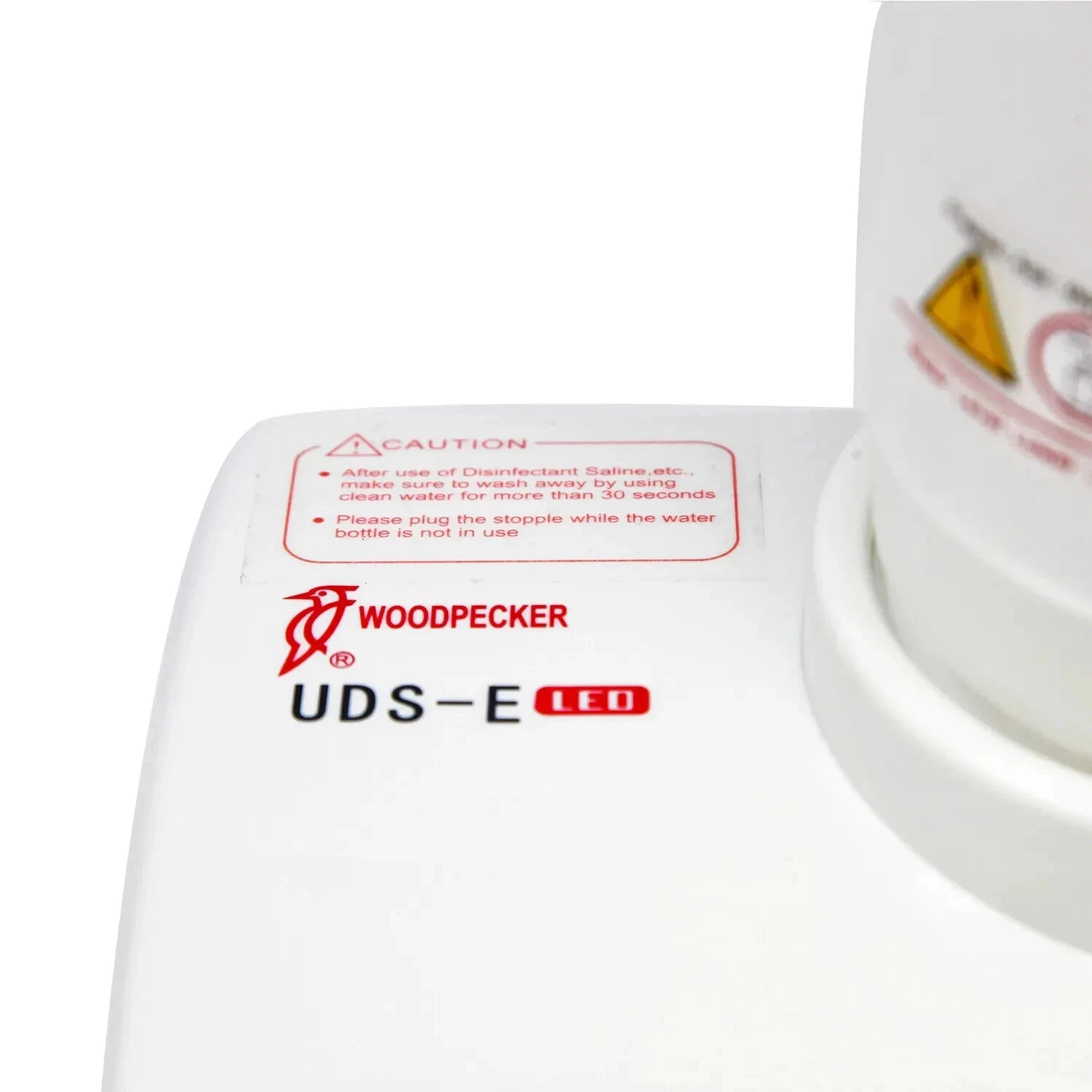

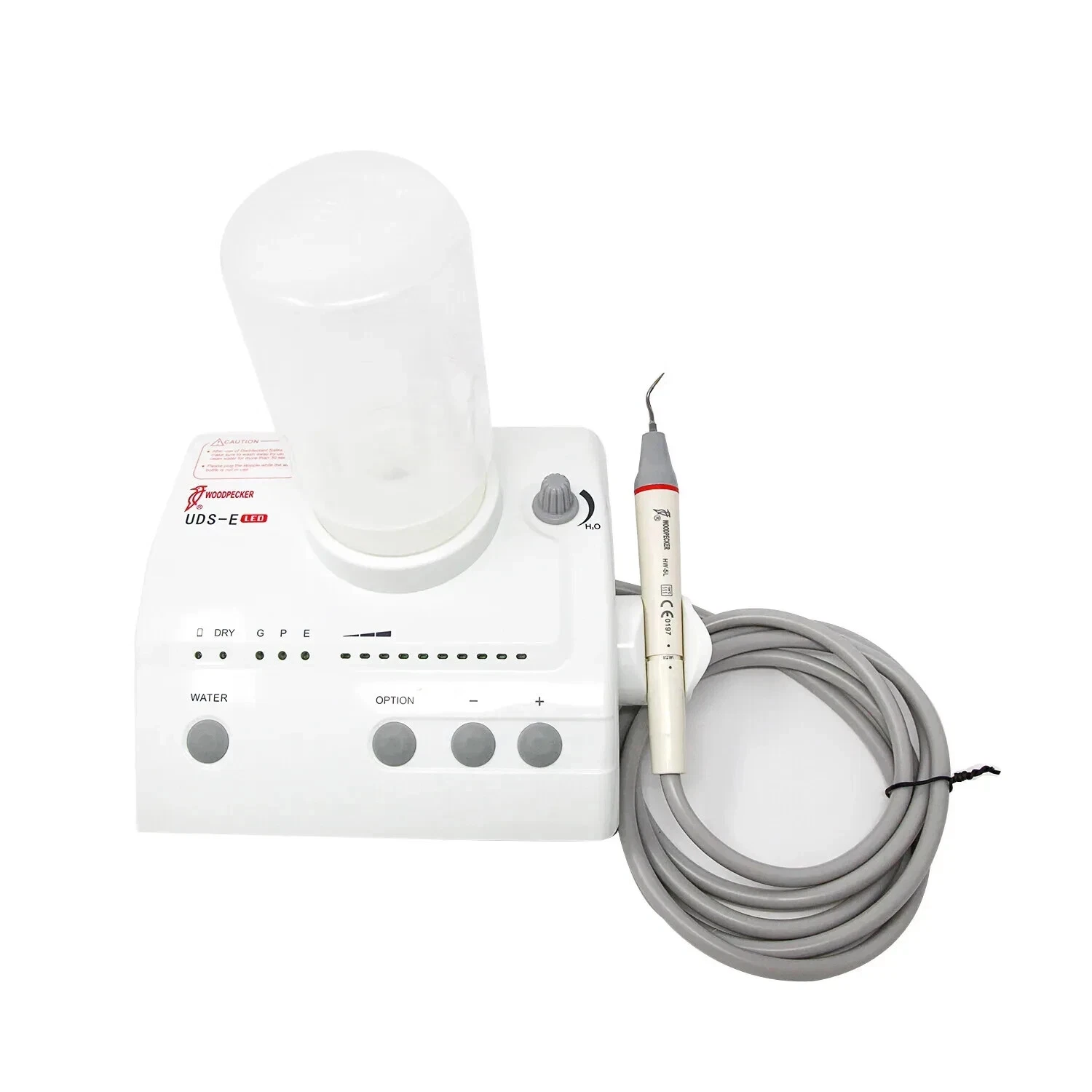

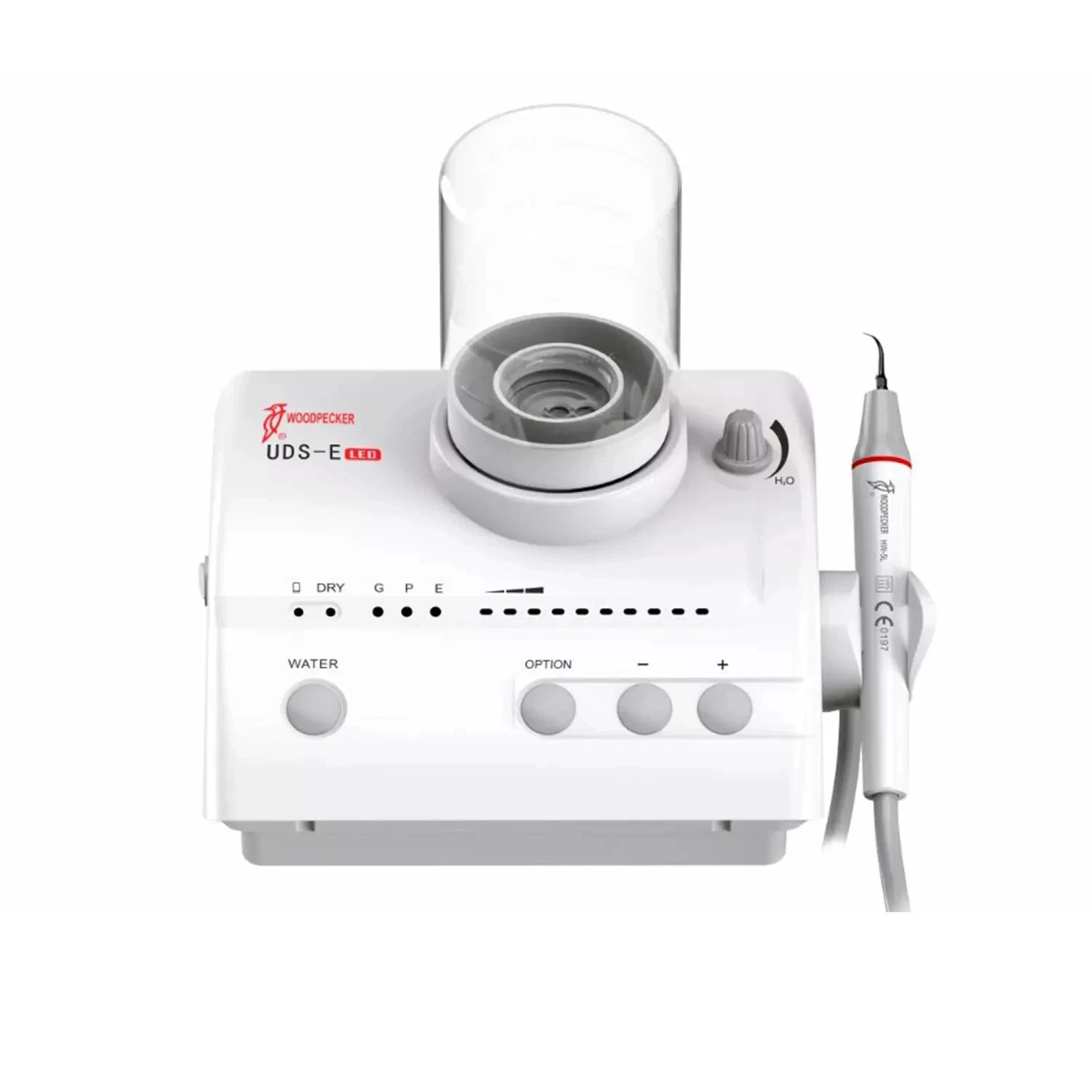

Woodpecker UDS-E LED Ultrasonic Scaler

Product Description:

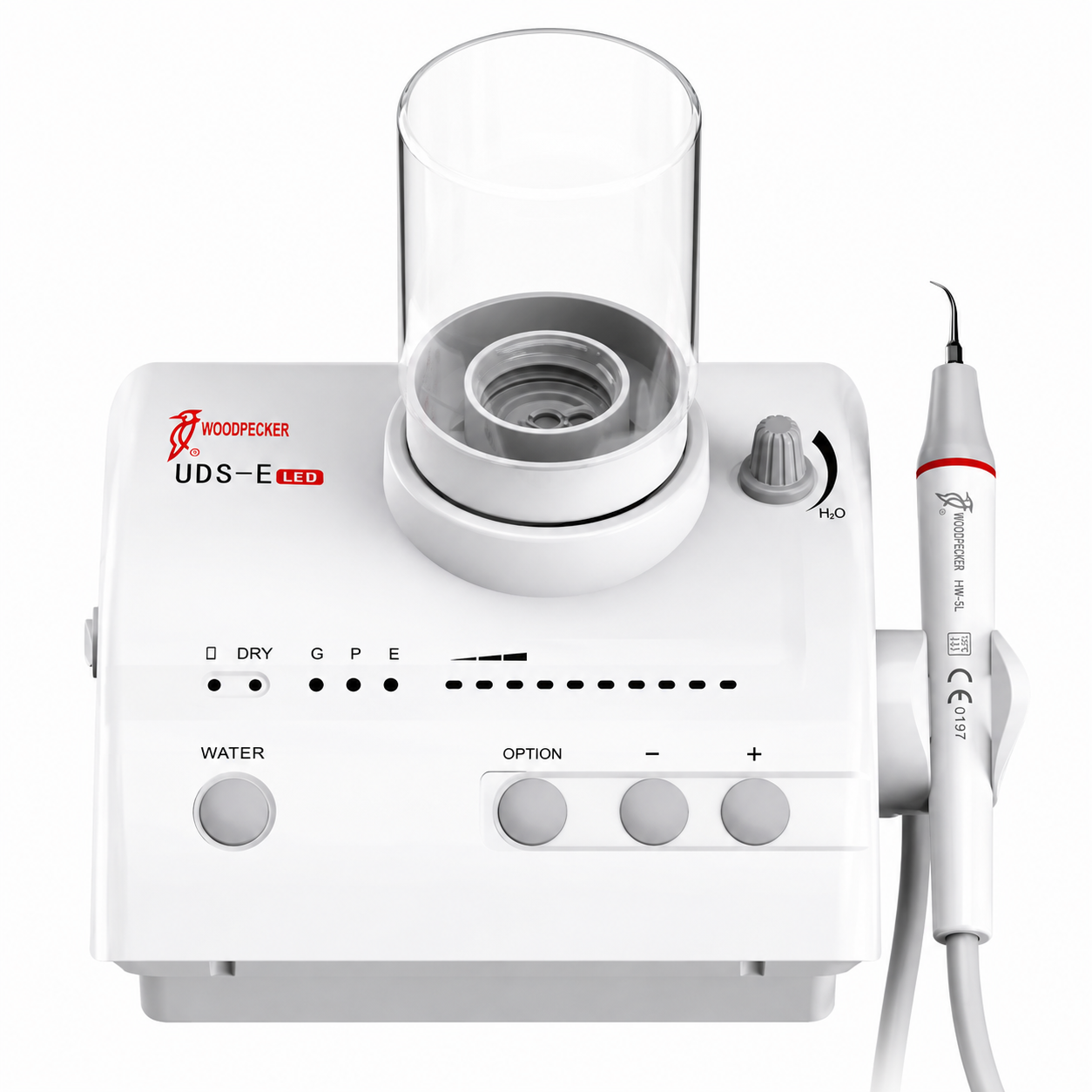

When we talk about the dental operatory, we really need to look at the Original Woodpecker UDS-E-LED. This is the ultrasonic scaler that stands as a high-performance piezoelectric scaler. It is a single unit that combines multiple functions, like scaling, periodontal, and endodontic, all into one. It has a built-in water supply system, which is the USP of the Original Woodpecker UDS-E-LED. This allows you to use clinical fluids like chlorhexidine, hydrogen peroxide, or sodium hypochlorite directly through the unit, which is a huge advantage when it comes to controlling infection and treatments on patients.

It has a weight of around 1.35 kg, which makes it easy to move around. Along with that, its design is sleek and ergonomic. It sits perfectly on your dental unit. It has a high-grade ABS housing that ensures its durability. The internal metal components are there to withstand the everyday schedules without compromising efficiency. You get an intuitive interface and PC control system to operate this Original Woodpecker UDS-E-LED, which makes it a straightforward scaler even for new staff.

Product Uses:

The Original Woodpecker UDS-E-LED Scaler’s greatest strength is its versatility and application. It is a multi-tool for the mouth.

1. General Scaling is literally the main function of the unit. It effectively removes supragingival calculus and stains using a range of "G" tips. The linear vibration of the piezoelectric technology ensures that the process is efficient and less abrasive than older technologies.
2. For patients who face gum disease, it has “P” tips that allow you to go subgingival. This Original Woodpecker UDS-E-LED removes your deep-seated plaque and root planing, too. These are the essentials for managing periodontal health.
3. If you switch to the “E” mode and use the E1 tip, you can perform irrigation and cleaning within the root canal. So, this Original Woodpecker UDS-E-LED is what your endo toolkit needs.
4. It has a built-in water supply system, and you can fill the 350 ml bottle with medicinal fluids. This makes it a perfect tool to perform site-specific chemotherapeutic irrigation while you scale.

Key Features of the Original Woodpecker UDS-E-LED:

1. This ultrasonic scaler has a multi-function capability. It features three distinct modes: General, Perio, and Endo. This means that you don’t need three different machines for operating. You can switch between these modes easily, and it adapts efficiently to the specific needs of the patient.

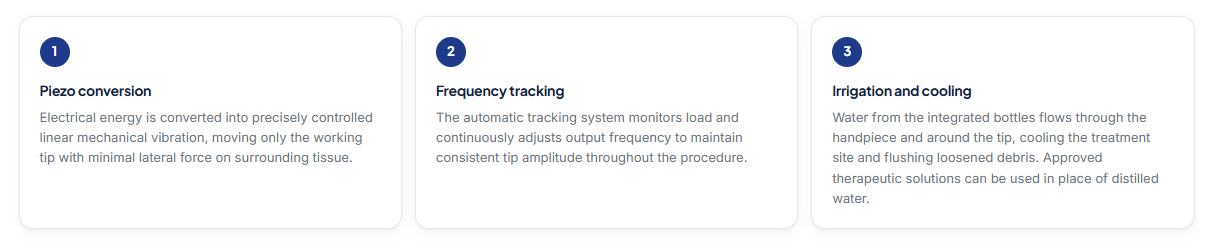

2. A key feature of the Original Woodpecker UDS-E-LED is its automatic frequency tracking system. It adjusts the output frequency automatically. This keeps the tip vibrating at its best resonance. It creates a smoother experience for the patient. It also reduces chatter and stalling for the clinician.

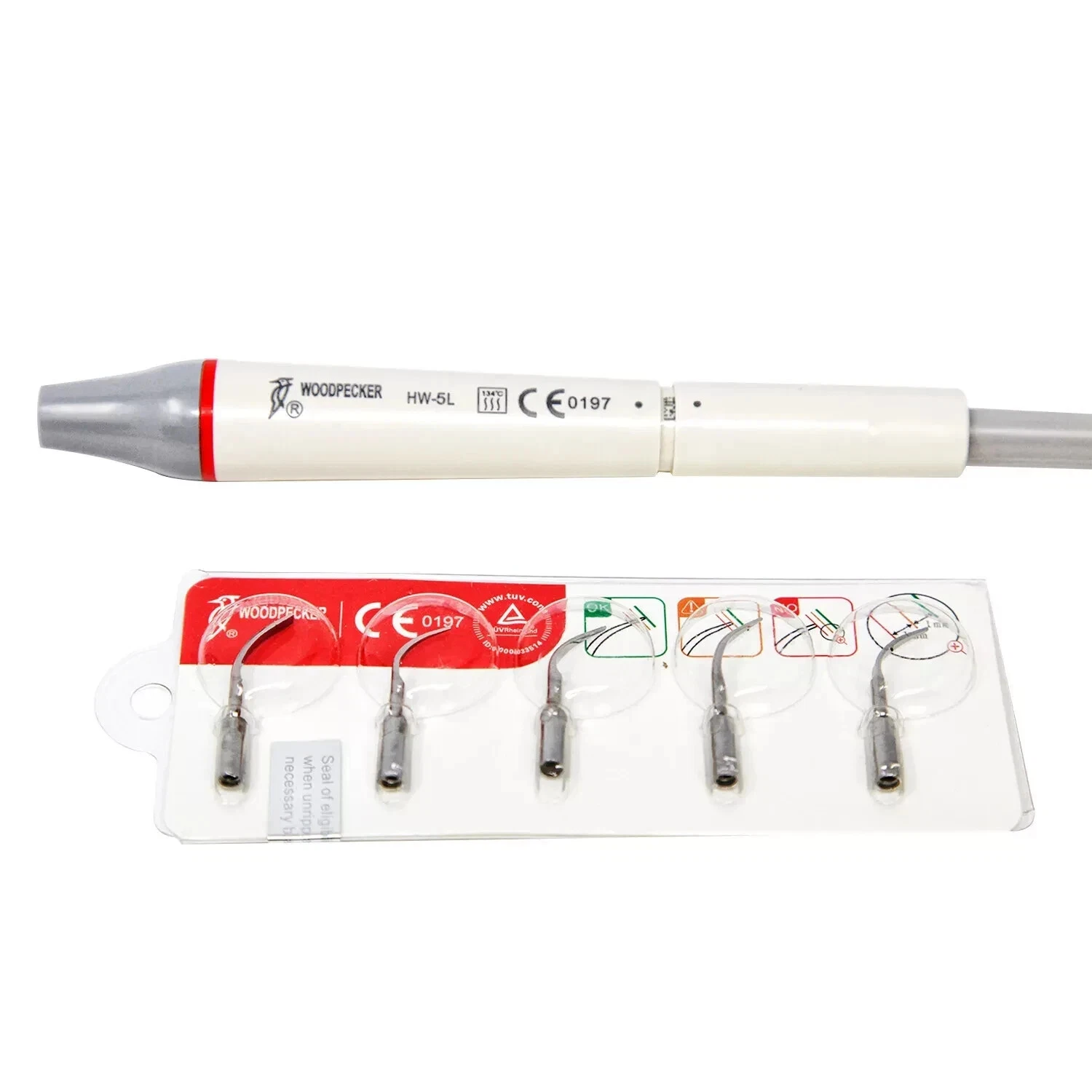

3. Good visibility matters in dentistry. The Original Woodpecker UDS-E-LED has a detachable handpiece that features an integrated LED light. It gives a clear view of the treatment area.
4. The detachable handpiece has an integrated LED light. This helps in hard-to-reach posterior areas. It also helps in deep periodontal pockets.

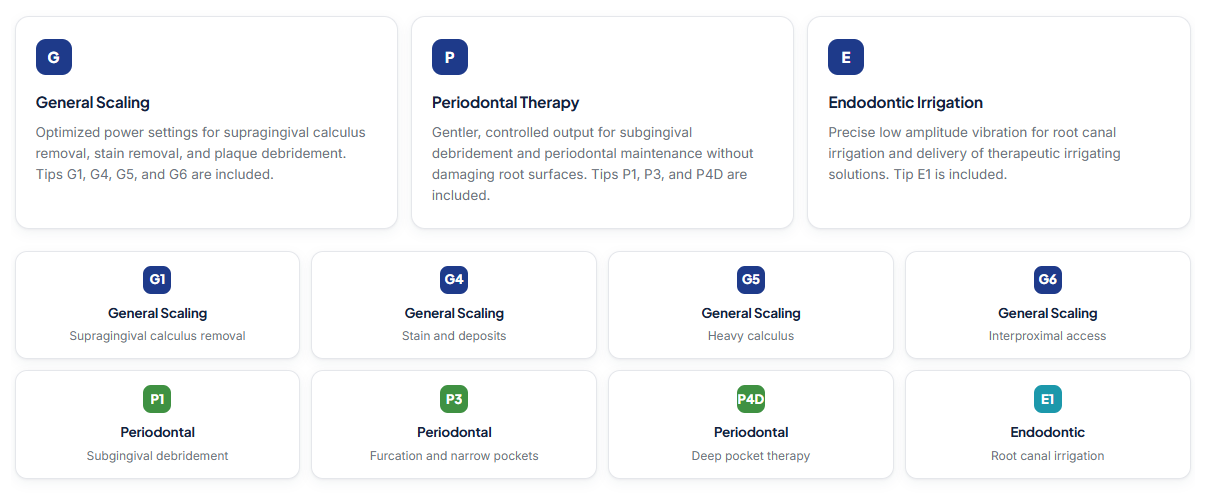

5. Out of the box, the Original Woodpecker UDS-E-LED includes 8 specialized tips. These include G1, G4, G5, and G6 for general scaling. They also include P1, P3, and P4D for periodontal work. It also includes an E1 tip for endodontic procedures. A full set from the start supports many services right away.
6. It uses an internal water pipe and a 350 ml spare water bottle. This gives you control over cooling and irrigation fluid. This setup does not require a main dental unit water line. That water line can be a common source of biofilm buildup.

How to use this Original Woodpecker UDS-E-LED?

The Original Woodpecker UDS-E-LED is meant to be easy to use, but if you follow a step-by-step procedure will make sure that the device stays longer and keeps your patients safe.

Step 1: Preparation

Make sure the power supply is connected appropriately before working on the patient. The adapter needs to send 30 volts of DC power to the unit. Make sure the voltage in your clinic is correct (usually between 220 and 240 volts). Put the fluid of your choice, whether it's distilled water or a therapeutic solution like chlorhexidine, into the 350 ml water bottle.

Step 2: Attach the Handpiece and Tip

Attach the detachable handpiece to the cable in a way that is safe. Choose the right tip for the job, like G1 for general scaling. To tighten the tip, use the torque wrench that came with it. Using the wrench is vital to make sure the tip is securely in place. If it is too loose, the vibration won't work right and could break the handpiece.

Step 3: Get the patient ready

First and foremost, safety! Always give your patient protective eyewear to keep them safe from spray. Put a dental bib on to catch any mess. This is normal, but because the Original Woodpecker UDS-E-LED vibrates at a high frequency, the cooling mist can be quite fine and spread out.

Step 4: How to use and change it

To turn on the machine, press the power button. With the simple control knob, you may choose your mode (General, Perio, or Endo) and modify the power level. It's normally best for a new patient to start at a lower setting and raise it as needed, according to how sensitive the patient is and how hard the calculus is.

Step 5: The Scaling Process

Gently place the tip on the surface of the tooth. You don't have to push hard; the Original Woodpecker UDS-E-LED will do the work for you. Brush your teeth with clean, sweeping strokes along the edges. To keep the tip cool and get rid of dirt, rinse the region periodically with the built-in water supply.

Step 6: After the Procedure Care

When you're done, turn off the unit. Take off the tip with the torque wrench, and then clean the handpiece. You're done once you show the patient how to take care of themselves at home.

Technical Specifications:

Handling Tips:

5.0

If you want your Original Woodpecker UDS-E-LED to work effectively for years, you have to maintain it properly. You must follow the handling tips below:

1. You can take the handpiece off and autoclave it at temperatures as high as 135°C. This is very important for stopping cross-contamination. Before putting the handpiece in the autoclave, always take off the tip.
2. If you utilize therapeutic fluids like sodium hypochlorite, make sure to flush the system with clean distilled water after the process to keep any leftover material from blocking the pipes inside.
3. Check your tips often. If a tip is worn down, it doesn't work as well and needs more power, which can make it too hot. Keep them safe and organized with the tip holder.
4. Always keep the main unit out of direct sunlight and in a dry environment. Over time, direct sunlight can damage the ABS casing.

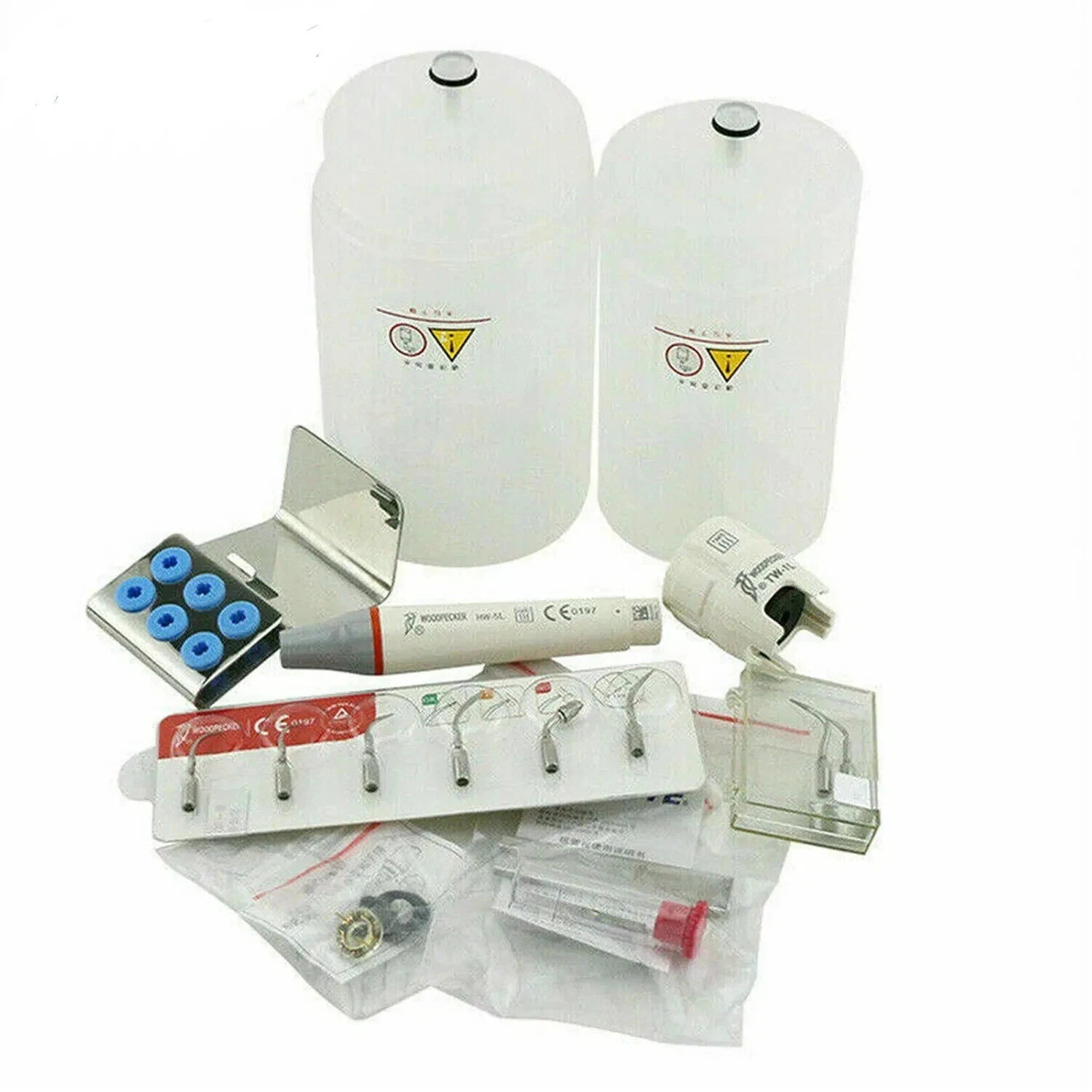

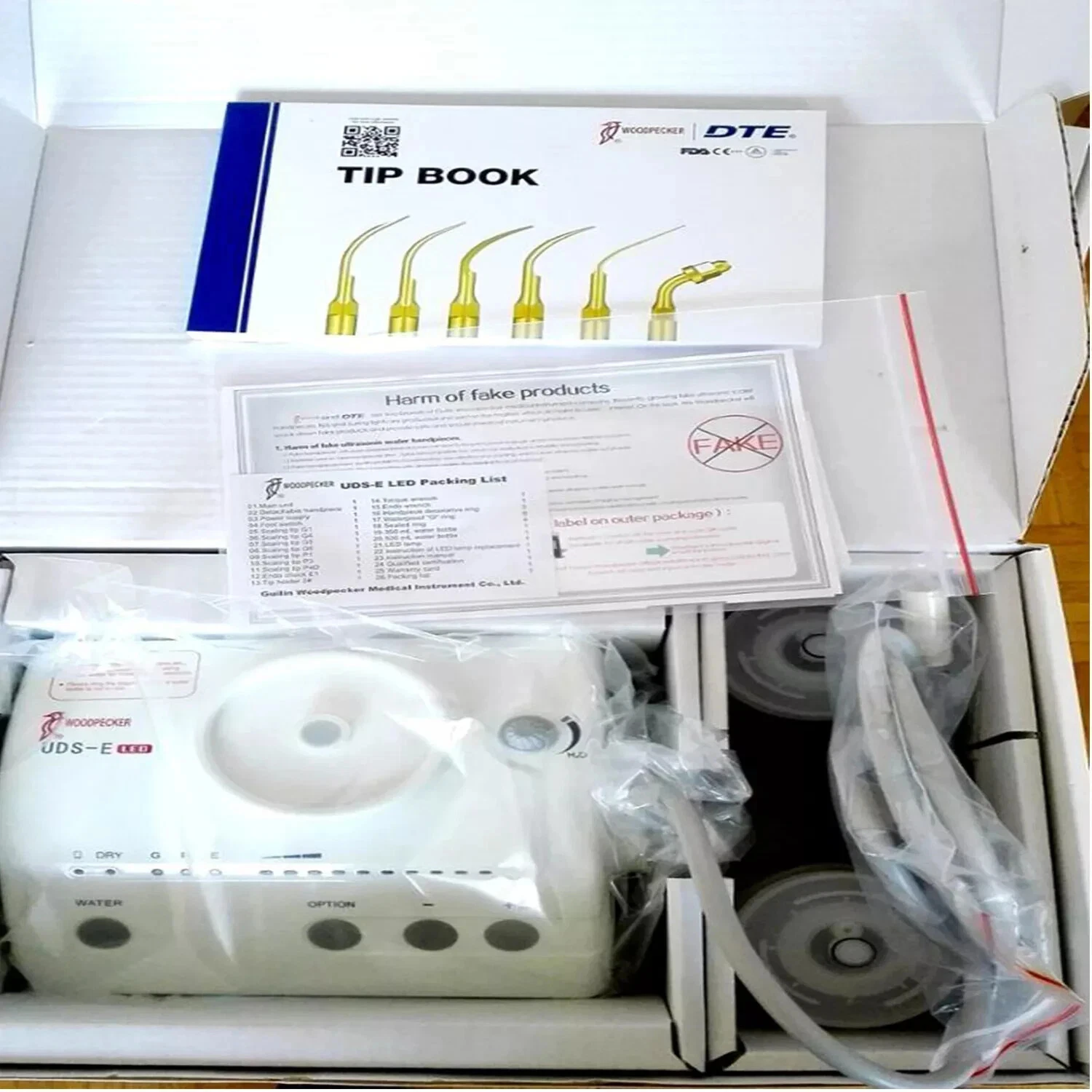

Packaging Includes:

1. 1 x Main Unit
2. 1 x Handpiece
3. 1 x Foot Switch
4. 8 x Tips (G1, G4, G5, G6, E1, P1, P4D, P3)
5. 1 x Adapter
6. 1 x Torque Wrench
7. 1 x Operation Manual

Medical Disclaimer:

This product is to be exclusively for use by trained dental professionals. You may not intend it for home use or for medical diagnosis or treatment by untrained professionals. You must have proper training and certification for safe and effective operation of the Original Woodpecker UDS-E-LED. You must always consult with a senior dental professional if you are not sure about its use.

FAQs:

1. What tips come with the unit for free?

The Original Woodpecker UDS-E-LED comes with eight tips: G1, G4, G5, and G6 for scaling; P1, P3, and P4D for periodontal work; and E1 for endodontic work. This variety makes sure that you can manage practically any case that comes in.

2. Will this unit work with additional tips?

Yes! The Original Woodpecker UDS-E-LED works with EMS-style tips. This is great since it lets you use tips you already have. However, they should be EMS compatible.

3. Do I need an air compressor for this to work?

No way. The Original Woodpecker UDS-E-LED is a great solo piezoelectric gadget. It has its built-in water supply system. So, you don’t need a compressor.

4. Is it okay to place the handpiece in the autoclave?

Yes, of course. You can take off the handpiece and clean it in an autoclave at temperatures as high as 135°C. This is a normal requirement for modern oral hygiene and safety.

5. What does the "Endo" mode do?

The frequency changes to roughly 27,000 Hz when in Endo mode. This is specifically set up to clean root canals. When you use the E1 tip, it makes it easy to clean out the canal and remove dirt.

6. What sets a piezoelectric scaler apart?

The Original Woodpecker UDS-E-LED uses piezoelectric technology to make linear vibrations. Patients often find this more comfortable than magnetostrictive scalers because it doesn't heat up as much and moves more precisely.

7. Is it okay to put mouthwash in the water bottle?

You can use clinical fluids like hydrogen peroxide or chlorhexidine, yes. After that, just flush the lines with normal water to keep the inside pipes clean.

8. Can you change the LED light?

There is an LED in the handpiece. If the light stops working, you can take the handpiece off and fix or replace it instead of having to buy a whole new machine.

9. Can this scaler clean deep pockets?

The Original Woodpecker UDS-E-LED is great for seeing and cleaning deep periodontal pockets since it has P-series tips and a brilliant LED light.

10. Who should use this device?

This is a tool for professionals. You should be an educated and competent dental professional, such as a dentist, hygienist, or therapist, to use it in a clinical environment.

Warranty/Support:

The Original Woodpecker UDS-E-LED is built to last, but it's always a good idea to have your operation manual on hand in case something goes wrong. You should call your authorized distributor if you need to submit a warranty claim or for technical help. Regular maintenance, such as cleaning the O-rings in the handpiece and making sure the water filter is clean, will help you avoid having to do as many repairs.

Certifications:

The Original Woodpecker UDS-E-LED is made to very high standards of quality. It is a professional-grade piezoelectric scaler that meets all the safety standards for electronic dental tools.

Conclusion:

In short, the Original Woodpecker UDS-E-LED is a sturdy, flexible, and very useful piece of equipment that can revolutionize the way you think about hygiene and endodontic treatments. It has its own water supply, can automatically track frequencies, and has a bright LED handpiece. All of these features make it a perfect choice for any modern dental clinic. You can take the best care of your patients, whether you're doing a simple cleaning or a hard root canal irrigation. You receive the stability and accuracy you require.
