Mini Physio Sonic 1MHz Ultrasound Therapy Machine

This mini physio sonic 1 mhz ultrasound machine is a professional-grade physiotherapy machine available at your convenience. It is designed for deep tissue healing and advanced pain management. This compact yet powerful therapy unit delivers therapeutic ultrasonic waves that stimulate circulation, reduce inflammation, and accelerate tissue repair.

This device offers precision control, pulse and continuous modes, and consistent energy delivery for safe, effective, and targeted treatment. It is a must-have machine for clinics, physiotherapists, and home users. It has a sleek, compact design, a digital output display, and intuitive controls that make it an ideal solution for modern rehabilitation and pain-relief therapy.

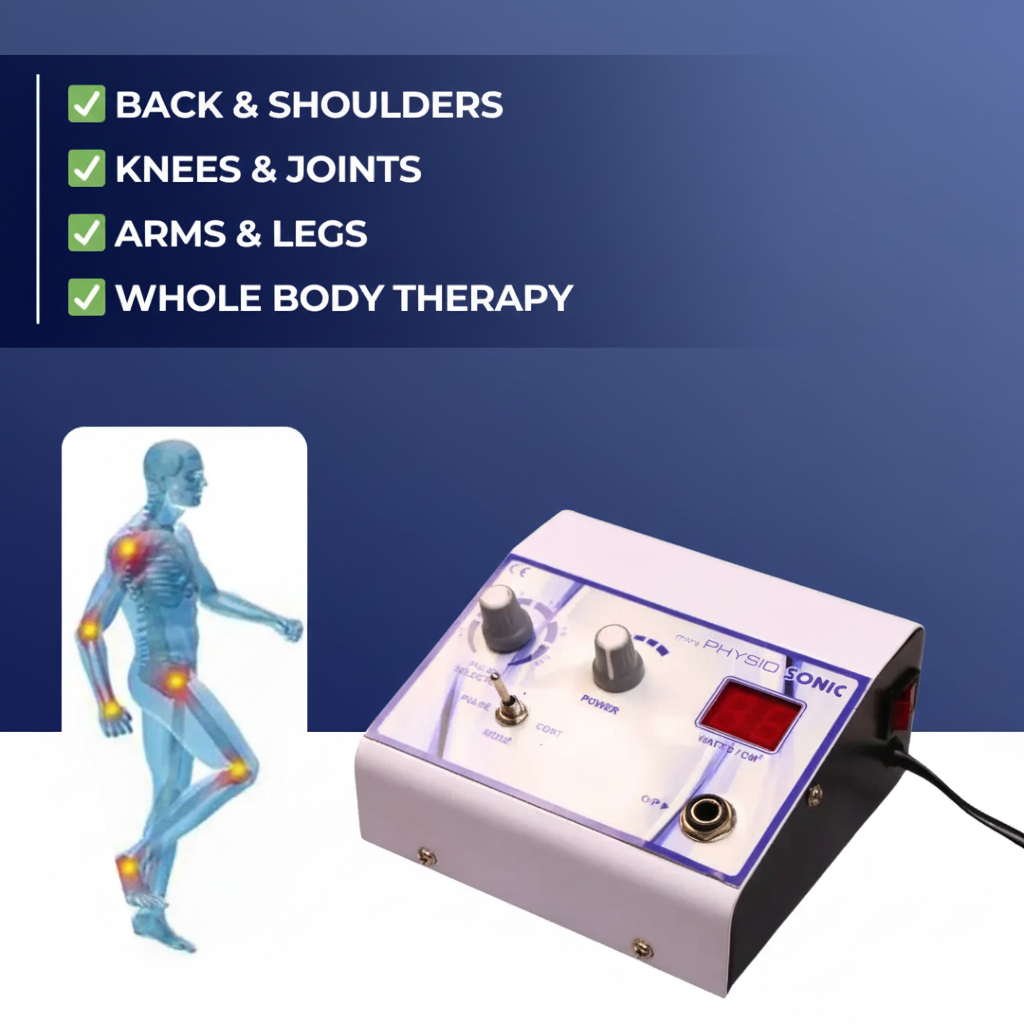

Product Uses

This physio ultrasound machine delivers ultrasound energy that penetrates to depths of approximately 3-5 cm. It is an absolute choice for treating deep muscle and periarticular structures. It has both thermal and non-thermal effects that help in various conditions, such as the following:

Musculoskeletal Conditions

1. Muscle spasm, chronic tension, and myofascial tightness
2. Soft tissue injuries: sprains, strains, ligament tears, and muscle contusions
3. Tendinopathy and tendinitis (rotator cuff, Achilles, quadriceps, common extensor origin)
4. Bursitis, periarthritis, and synovitis
5. Osteoarthritis: shoulder, knee, hip, and lumbar facet joints
6. Frozen shoulder (adhesive capsulitis): capsule stretching and pain relief

Chronic Pain

1. Chronic low back pain and lumbar disc syndrome
2. Cervical spondylosis and chronic neck pain
3. Myofascial pain and trigger point desensitisation
4. Fibromyalgia: localised pain-relief sessions
5. Post-fracture periosteal pain (once healed)

Post-Surgical & Rehabilitation

1. Promotion of soft tissue healing after orthopaedic procedures
2. Scar tissue softening, adhesion breakdown, and remodelling
3. Post-operative oedema and swelling reduction
4. Restoration of joint range of motion and tissue extensibility

Neurological & Peripheral Conditions

1. Carpal tunnel syndrome (median nerve entrapment)
2. Plantar fasciitis and heel spur syndrome
3. Lateral epicondylitis (tennis elbow)
4. De Quervain's tenosynovitis

Phonophoresis

1. Transdermal delivery of topical anti-inflammatory agents (e.g., diclofenac, ibuprofen gel, hydrocortisone) using ultrasound as the delivery vehicle. Always consult prescribing guidelines before performing phonophoresis. Use an appropriate coupling medium rated for this application.

How to Use this Ultrasonic Physiotherapy Machine

Using this machine requires following the protocols as mentioned here. Follow all these steps carefully:

Pre-Treatment Setup

1. Place the unit on a stable, flat surface within easy reach of the treatment area.
2. Connect the transducer probe to the O/P ► jack on the front panel. Ensure you are fully seated.
3. Plug the AC power cable into a grounded mains outlet. The side indicator will illuminate.
4. Confirm the POWER knob is at minimum (fully anti-clockwise) before switching on.

Patient Assessment & Preparation

1. Confirm treatment indication and screen for all contraindications before proceeding.
2. Position the patient comfortably with the target area exposed and accessible.
3. Check skin integrity. Do not treat over broken or infected skin.
4. Apply a generous layer of ultrasound coupling gel to the treatment area or the transducer face.

Select Output Mode

1. Toggle the MODE switch to the desired output:
2. CONT (right position): Continuous mode: maximum sustained thermal output. Use for chronic conditions and deep heating.
3. PULSE (left position): Pulsed mode: intermittent output reduces thermal accumulation. Use for acute injuries, sensitive patients, or non-thermal effects.

Select Pulse Ratio (Pulsed Mode Only)

1. Turn the PULSE SELECTOR rotary knob to the desired duty cycle.
2. For acute injuries: use 1:7, 1:9, or 1:16 for minimal thermal effect.
3. For sub-acute / chronic: use 1:1 or 1:3 for moderate thermal build-up.
4. (This control has no effect in CONT mode.)

Set Intensity

1. Slowly turn the POWER rotary knob clockwise from zero.
2. Watch the WATT'S/CM² LED display and increase to the clinically appropriate level.
3. Recommended starting intensity: 0.5 W/cm². Typical therapeutic range: 0.5 – 2.0 W/cm².
4. Acute conditions: 0.1 – 0.8 W/cm² (pulsed). Chronic conditions: 1.0 – 2.5 W/cm² (continuous or pulsed).
5. Do not exceed 3.0 W/cm².

Administer Treatment

1. Apply the probe flatly against the skin with firm, consistent pressure.
2. Move the probe continuously in slow overlapping circular or longitudinal strokes. NEVER hold it stationary on energized output.
3. Typical treatment duration: 5–10 minutes per area. Do not exceed 10 minutes on one site per session.
4. Monitor the patient throughout. Ask about heat, tingling, or discomfort. Reduce intensity immediately if reported.

End of Treatment

1. Slowly turn the POWER knob anti-clockwise back to zero before disconnecting or moving the probe.
2. Unplug from the mains or switch off at the socket.
3. Remove coupling gel from the patient's skin with a clean cloth.
4. Clean the transducer face with a soft, damp cloth or approved disinfectant wipe.
5. Document treatment parameters (mode, pulse ratio, intensity, duration) in the patient record.

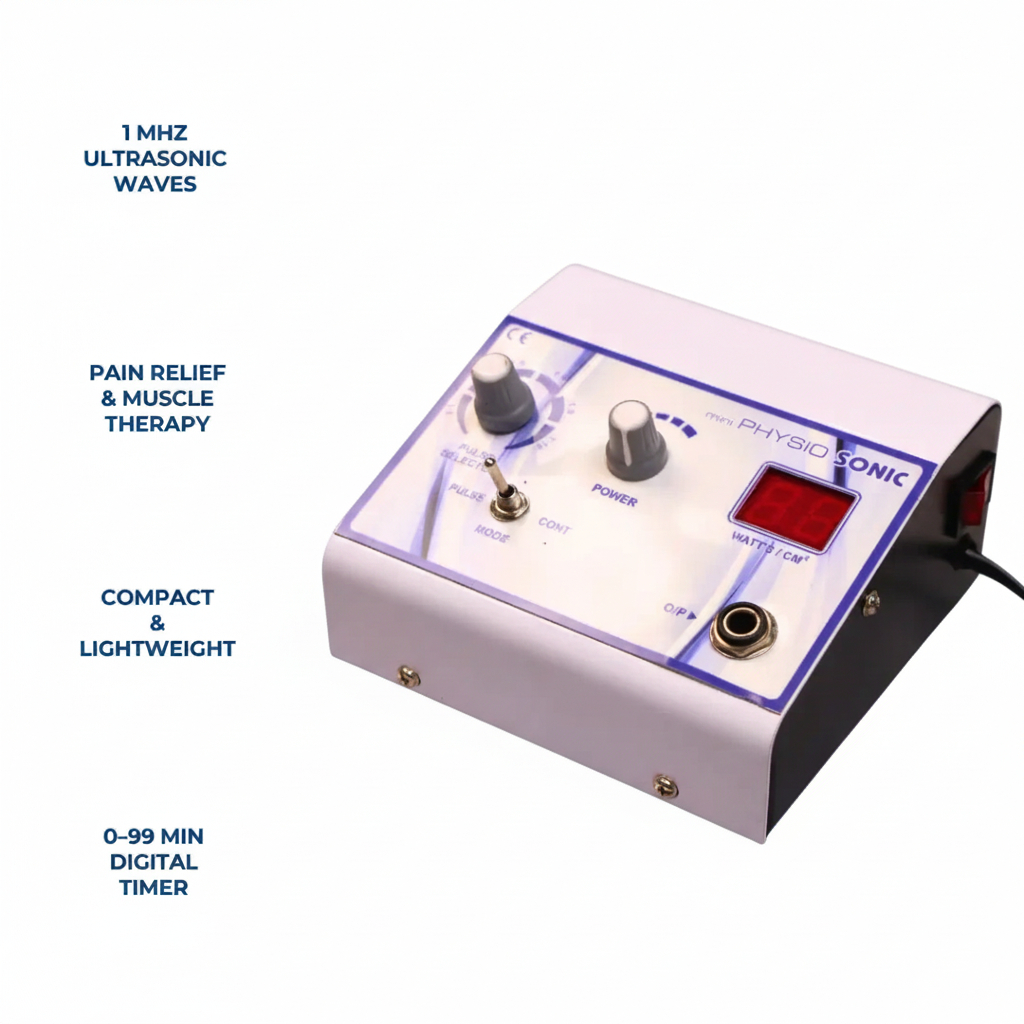

Product Features

1. 1 MHz Deep Tissue Therapy: Optimized for deep tissue penetration up to 5 cm to effectively target muscles, joints, and ligaments.
2. Dual Therapy Modes: Features Continuous mode for chronic or deep thermal therapy, and Pulsed mode (with six selectable duty cycles: 1:1, 1:3, 1:5, 1:7, 1:9, and 1:16) for acute and sub-acute conditions.
3. Precision Power Control & Display: Adjustable intensity combined with a bright red LED digital display for accurate, real-time monitoring of output (W/cm²).
4. Lightweight & Compact: Designed as a compact desktop enclosure, this portable ultrasound machine is easy to carry, making it ideal for both clinic use and home visits.
5. Safe & CE Certified: A non-invasive, drug-free pain management solution that meets European safety and performance standards for medical devices.
6. User-Friendly Interface: Simple 3-control setup (Pulse Selector knob, Power knob, and Mode toggle) with a single front-panel probe output jack for a secure connection and a minimal learning curve.

Technical Specifications

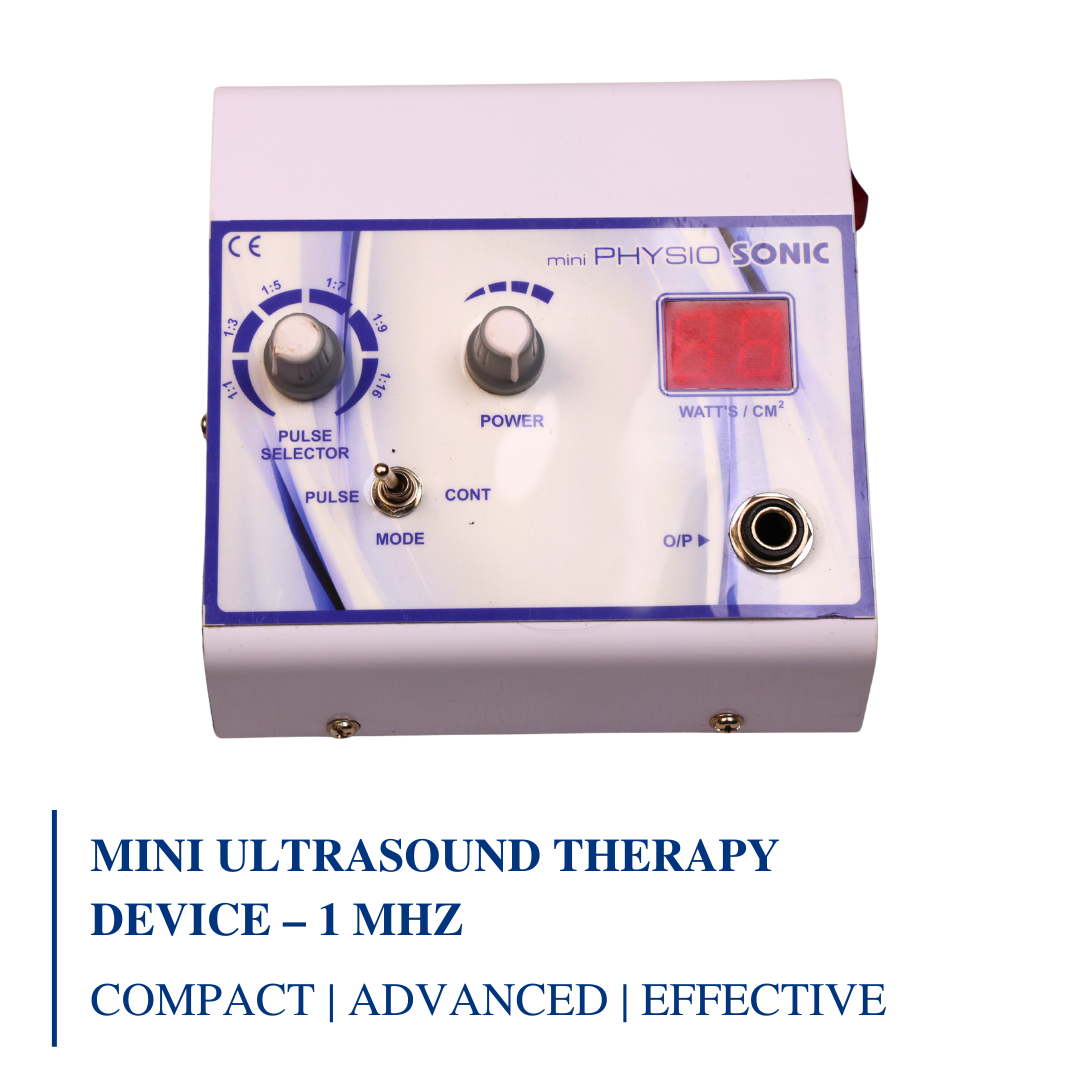

Control Panel Layout & Functions

Pulse Ratio Guide

Handling Tips

1. Professional Use & Maintenance: For use by trained healthcare professionals only. Always inspect the device, probe, and cables before use; do not use damaged equipment, expose it to liquids, or attempt self-repair. Disinfect the probe between patients (avoid alcohol-based wipes to protect the seal).
2. Safe Application Rules: When operating this ultrasonic physiotherapy machine, always apply approved coupling gel to prevent transducer damage (never use cosmetic gels or operate in the air). Keep the energized probe moving continuously to avoid periosteal burns, and never leave the patient unattended.
3. Patient Precautions: Always check skin sensation before treatment. Stop or reduce intensity immediately if the patient reports pain or burning. Use pulsed mode (1:7 or higher) for acute injuries, reduce intensity near bony prominences, and start low for elderly patients or those with vascular compromise.
4. Strict Contraindications (DO NOT USE): Never apply over or near malignant tumors, the pregnant uterus, implanted electronic devices (e.g., pacemakers), active DVT/thrombophlebitis, youth epiphyseal growth plates, eyes, reproductive organs, the spinal cord, acutely infected/inflamed tissue, or open wounds/broken skin.

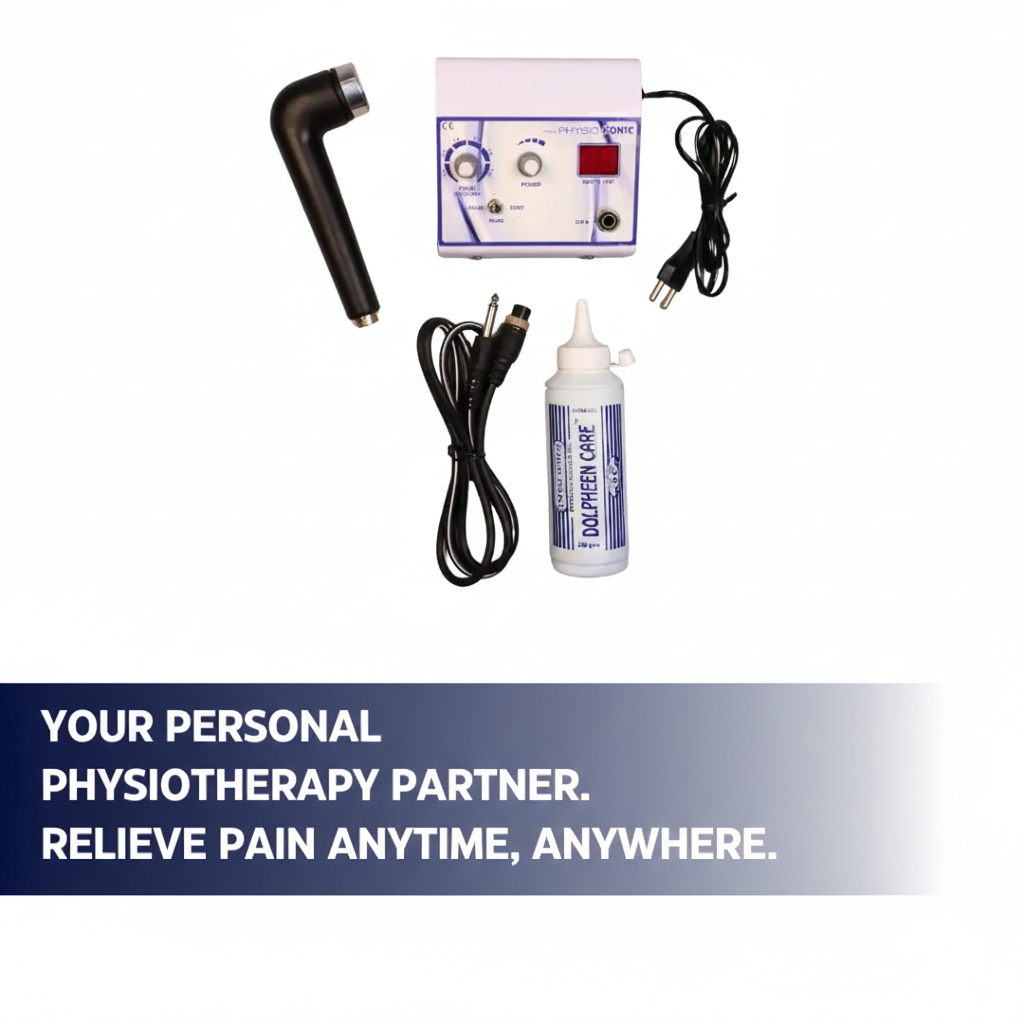

Product Packaging

The Package Includes the following:

1. 1 × mini PhysioSonic Ultrasound Therapy Main Unit
2. 1 × 1 MHz Transducer Probe with connecting cable
3. 1 × AC Mains Power Cable
4. 1 × Ultrasound Coupling Gel (or gel sachet)
5. 1 × User / Operating Manual
6. 1 x Power Adaptor (Universal)

Medical Disclaimer

This 1 mhz ultrasound machine is intended for personal wellness and is not a substitute for professional medical treatment or physical therapy. It is not designed to diagnose, treat, cure, or prevent any disease or medical condition.

Always consult a qualified healthcare provider before use, especially if you are pregnant, have a pacemaker, or suffer from underlying health issues. Do not use over open wounds, malignant tumors, or inflamed tissue. Stop use immediately if you experience pain or discomfort. This product does not replace professional medical advice.

Warranty/Support

This portable ultrasound machine is backed by a manufacturer’s warranty covering defects in materials and workmanship. Please note that this warranty does not cover damage resulting from misuse, accidental drops, unauthorized modifications, water exposure, or operating the probe without the required coupling gel.

For technical assistance, troubleshooting, or to initiate a warranty claim, please contact our customer support team at Snapshophub with your original proof of purchase. We are committed to ensuring your device operates safely and effectively.

Certification

The Mini 1 mhz ultrasound machine is CE certified, meaning it strictly meets rigorous European safety and performance standards for medical devices. This quality mark guarantees reliable, consistent, and safe therapeutic operation for both clinical healthcare settings and personal wellness routines.

FAQ

Q1. What is the primary use of this device?

A: This 1 MHz physio ultrasound machine is designed for deep tissue therapy. It effectively targets muscles, joints, and ligaments to manage pain and accelerate tissue repair.

Q2. Is this device suitable for home use?

A: Yes, its lightweight and compact desktop design makes it a highly convenient personal ultrasound machine for home wellness routines or mobile clinic visits.

Q3. What does the 1 MHz frequency mean?

A: A 1 MHz frequency is optimized specifically for deep tissue penetration. It allows the ultrasonic waves to reach structures up to 5 cm below the skin.

Q4. Can I use the device without coupling gel?

A: No, you must always apply an approved ultrasound coupling gel. Operating the device without gel will damage the transducer crystal and can cause skin burns.

Q5. What is the difference between Continuous and Pulsed modes?

A: Continuous mode provides sustained thermal output for chronic conditions, while Pulsed mode (with 6 selectable ratios) reduces heat generation for acute and sub-acute injuries.

Q6. Can I hold the ultrasound probe stationary during treatment?

A: No, you must keep the energized probe moving continuously in slow, overlapping strokes to prevent localized overheating and periosteal burns.

Q7. Are there any conditions under which this device should not be used?

A: Yes. It must not be used during pregnancy, near pacemakers, or over malignant tumors, active DVT, infected tissue, or open wounds.

Q8. How long should a single treatment session last?

A: A typical treatment duration is 5 to 10 minutes per area. You should not exceed 10 minutes on one specific site per session.

Q9. How do I clean the device after use?

A: Wipe the transducer face with a soft, damp cloth or an approved disinfectant wipe. Avoid alcohol-based wipes, as they can degrade the probe seal over time.

Q10. How do I monitor the intensity during a session?

A: The device features a bright red LED digital display that provides accurate, real-time monitoring of the output energy in W/cm².

Conclusion

Managing chronic pain or recovering from an injury requires consistent, targeted care. This personal ultrasound machine is designed to provide exactly that. As a highly effective 1 mhz ultrasound machine, it penetrates deep into muscles and joints to help reduce inflammation and speed up recovery. With simple controls, dual therapy modes, and a lightweight design, it brings professional-grade pain management straight to your clinic or home. It is a safe, non-invasive, and practical solution for anyone looking to actively support their rehabilitation journey.
