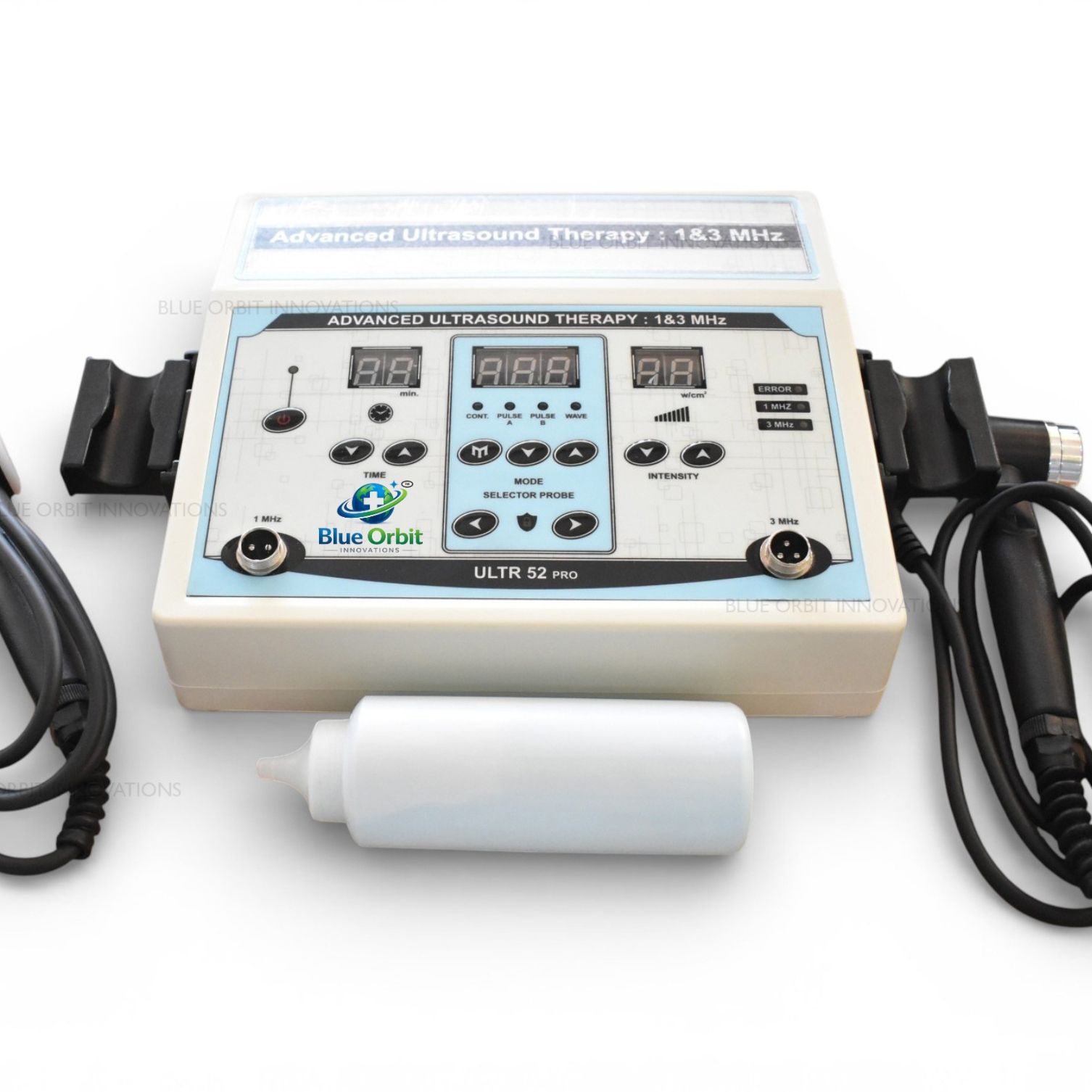

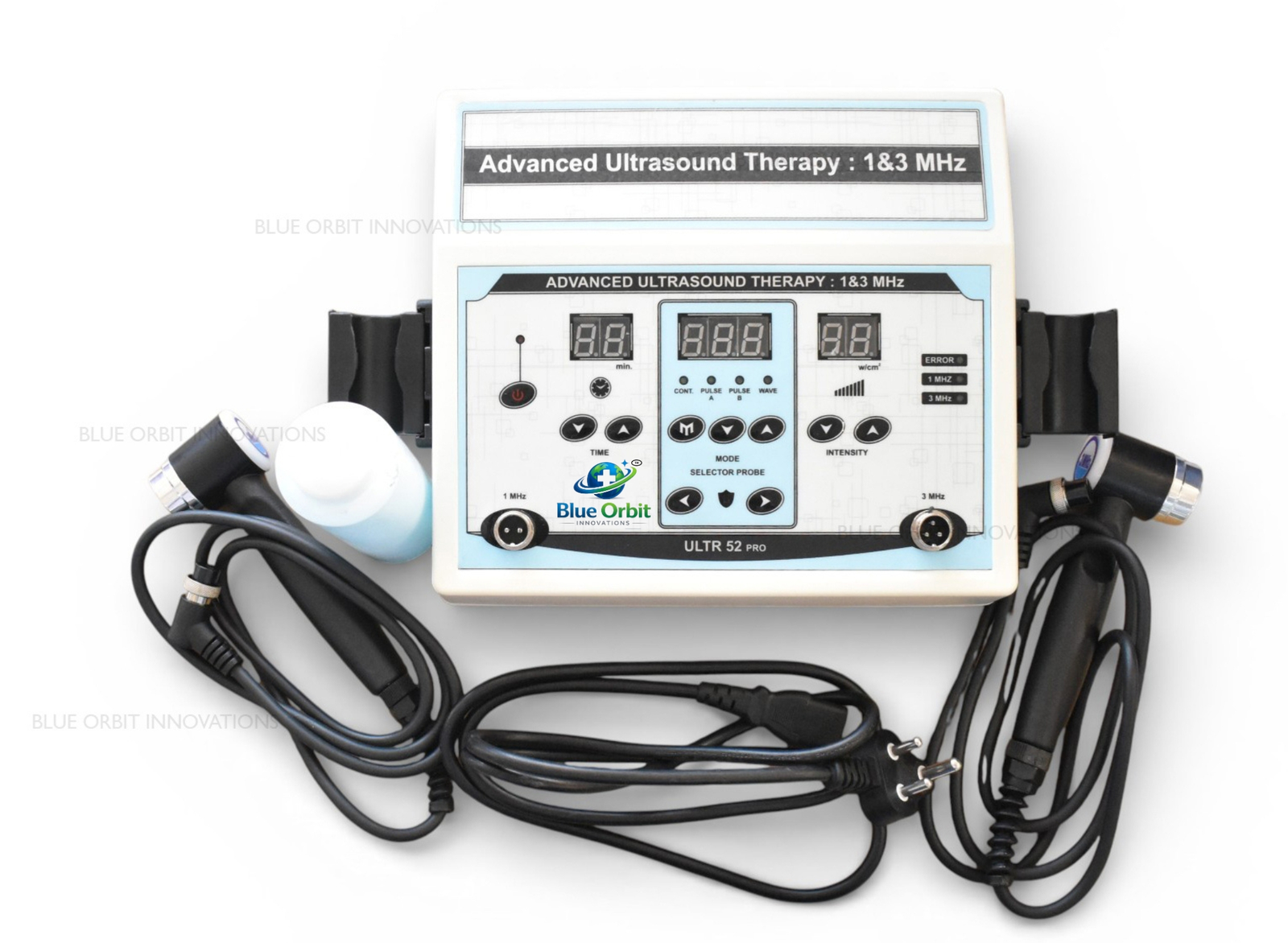

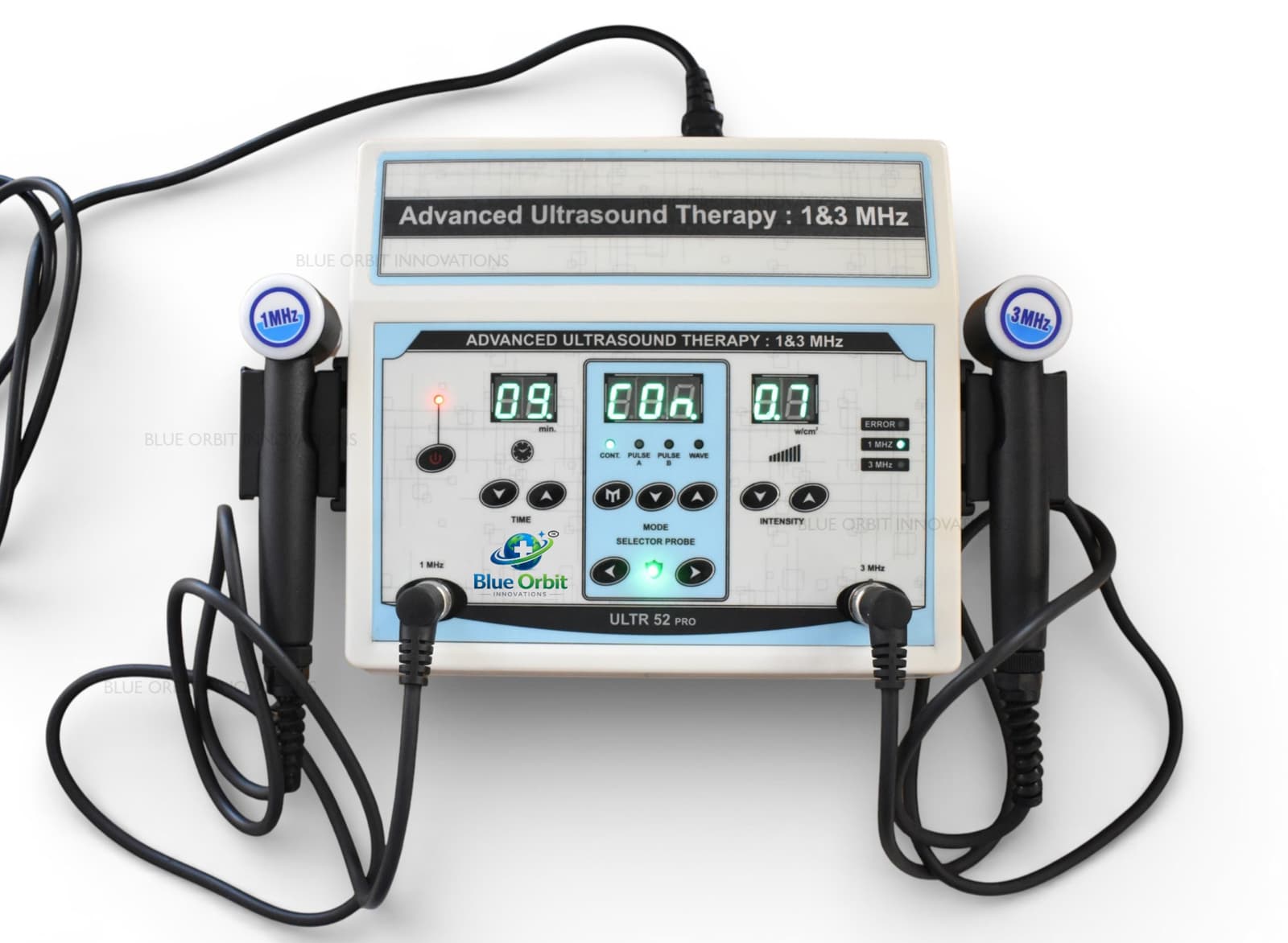

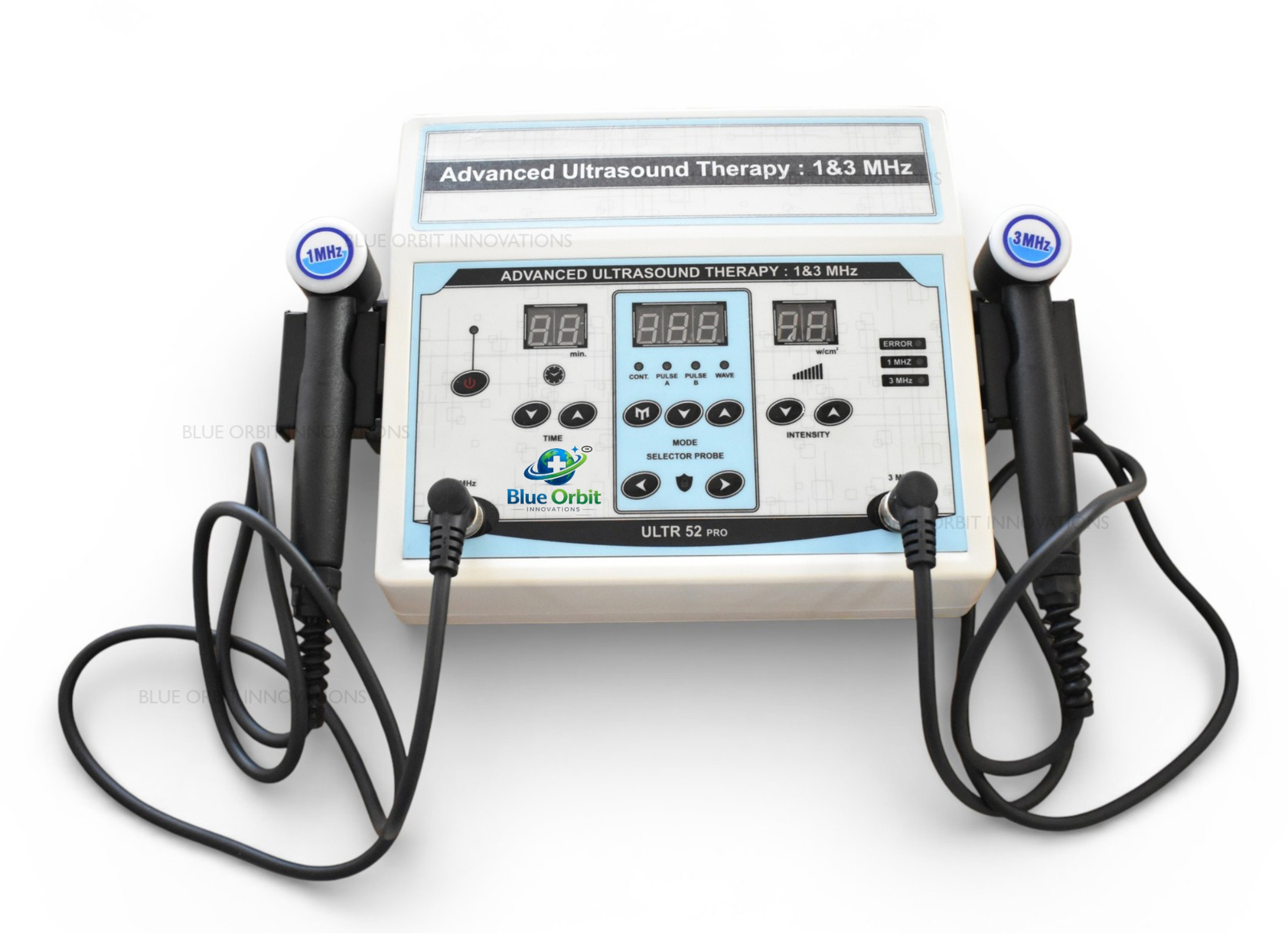

The Advanced Ultrasound Therapy Machine 1 & 3 MHz is a professional physiotherapy device designed for effective pain management, tissue healing, and rehabilitation therapy. This advanced unit uses therapeutic ultrasound technology to deliver deep and superficial treatment through dual frequency operation.

Equipped with dual probes, digital control panel, and adjustable intensity settings, the device provides precise and customized treatment for muscles, joints, and soft tissues. It is ideal for physiotherapy clinics, rehabilitation centers, and professional therapy use.

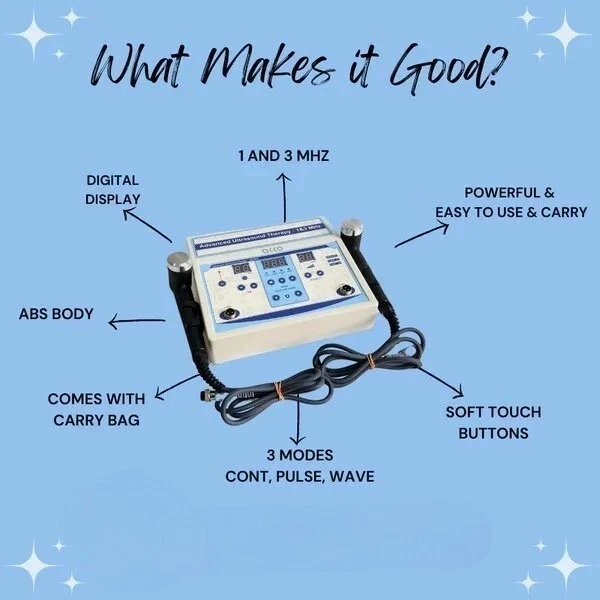

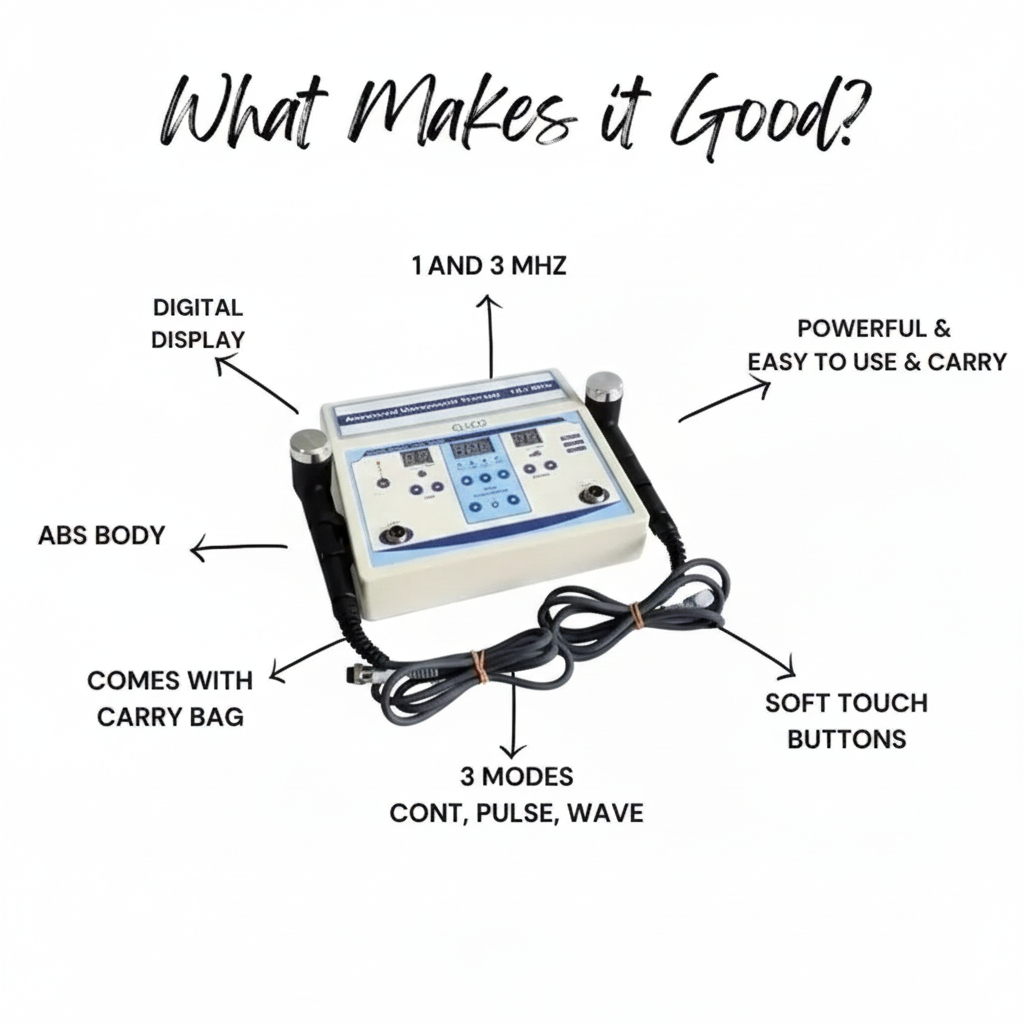

Key Features

1. Dual Frequency Technology (1 MHz & 3 MHz) – Enables deep and surface tissue therapy.
2. Dual Probe System – Supports different treatment areas and applications.
3. Continuous & Pulse Modes – Thermal and non-thermal treatment options.
4. Digital Display Interface – Clear monitoring of time, mode, and intensity.
5. Adjustable Output Intensity – Customized treatment control.
6. Selector for Probe & Mode – Easy switching between therapy settings.

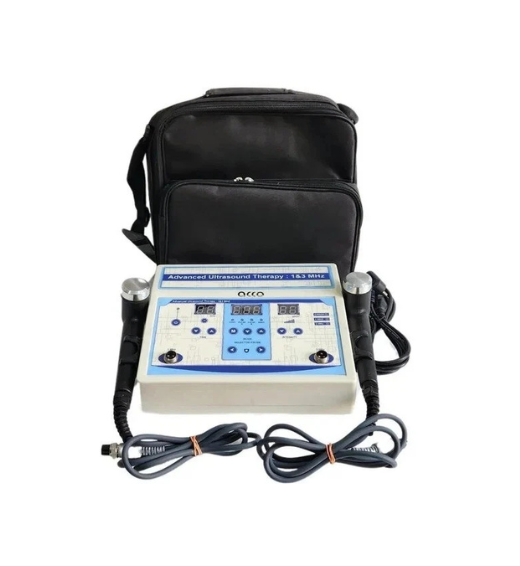

7. Portable Design with Carry Bag – Convenient transport and storage.
8. Professional Physiotherapy Equipment – Suitable for clinical use.

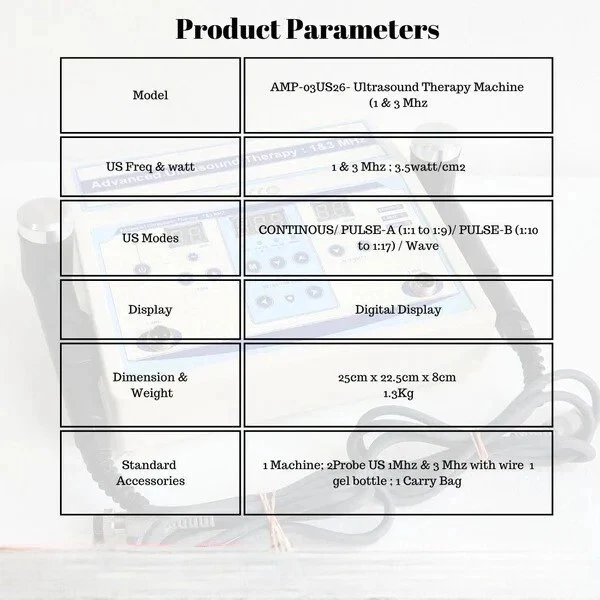

Technical Specifications

Uses and Indications

Therapeutic ultrasound is widely used in physiotherapy for its thermal and non-thermal (mechanical/cavitation) effects on biological tissue. Advanced Ultrasound Therapy 1&3 MHz indicated for:

Musculoskeletal Conditions

1. Relief of muscle spasm and tension
2. Treatment of soft tissue injuries: sprains, strains, and contusions
3. Management of tendinopathy and tendinitis (e.g., Achilles, rotator cuff)
4. Reduction of joint stiffness and improvement of range of motion
5. Bursitis and synovitis management

Chronic Pain Management

1. Chronic low back pain and neck pain
2. Osteoarthritis pain relief (knee, hip, shoulder)
3. Myofascial pain syndrome and trigger point therapy
4. Fibromyalgia symptom management

Post-Surgical / Rehabilitation

1. Acceleration of soft tissue healing post-surgery
2. Scar tissue breakdown and softening
3. Reduction of post-operative oedema

Neurological & Other

1. Carpal tunnel syndrome
2. Plantar fasciitis
3. Phonophoresis — transdermal drug delivery of topical medications

Frequency Selection Guide

1 MHz Probe: Best for deep tissue penetration (up to 5 cm). Suitable for large muscles, hip, shoulder, and lumbar regions.

3 MHz Probe: Best for superficial tissue treatment (up to 2 cm). Suitable for tendons, ligaments, and small joints.

How to Operate Machine

Step 1 – Setup

1. Place the unit on a stable, flat surface or treatment table.
2. Connect the appropriate probe (1 MHz or 3 MHz) to the corresponding port on the front panel.
3. Plug the power cable into a grounded mains outlet.
4. Power ON the device using the Power (⏻) button.

Step 2 – Select Frequency / Probe

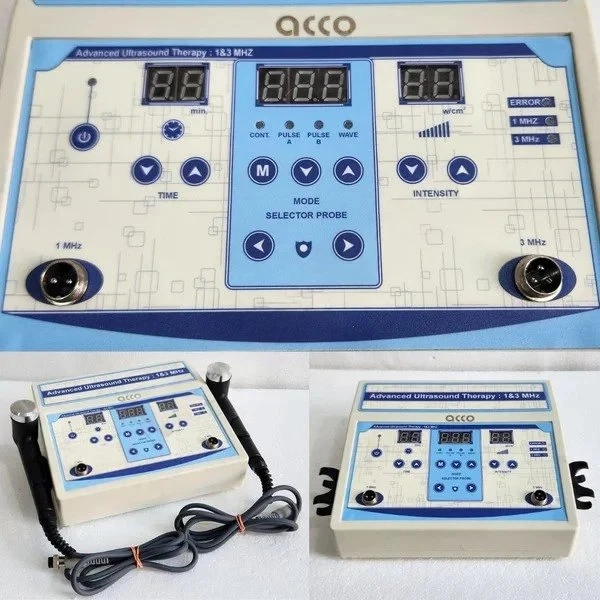

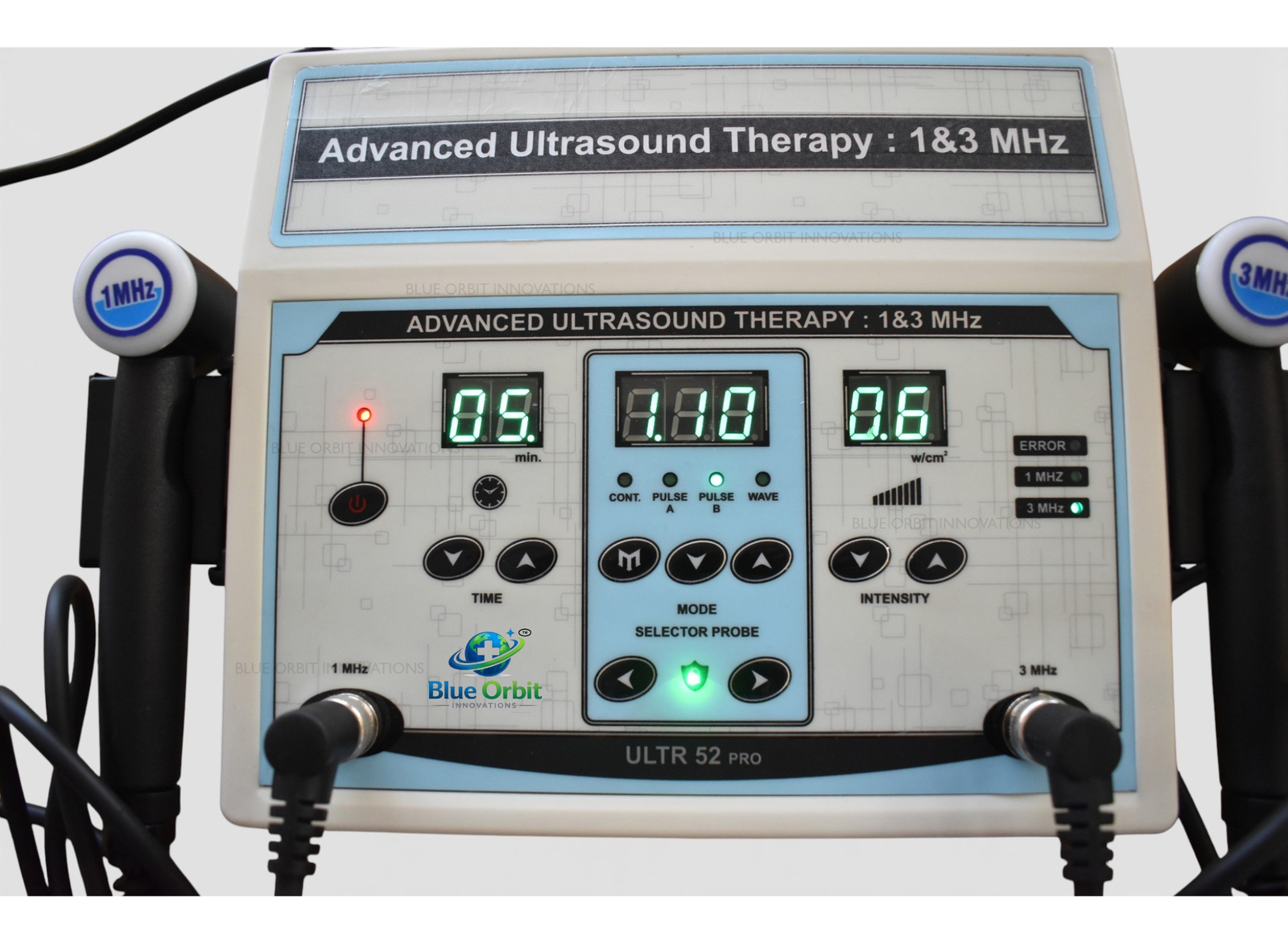

1. Use the Mode Selector Probe buttons (◄ ►) to select the active probe: 1 MHz or 3 MHz.
2. Confirm selection via the indicator LED on the right panel (1 MHz or 3 MHz LED will illuminate).

Step 3 – Select Treatment Mode

1. Press the M button to cycle through output modes: Continuous (CONT) → Pulse 50% → Pulse 25% → Wave.
2. Continuous mode delivers maximum thermal effect. Pulsed modes reduce heat for acute or sensitive conditions.

Step 4 – Set Treatment Time

1. Use the TIME ▼ / ▲ buttons to set the desired treatment duration (typically 5–10 minutes per area).
2. The timer countdown is displayed on the left LED panel.

Step 5 – Set Intensity

1. Use the INTENSITY ▼ / ▲ buttons to set the output power (W/cm²).
2. Start at a low intensity (0.5 W/cm²) and increase gradually based on patient comfort and clinical indication.
3. Intensity is displayed on the right LED panel.

Step 6 – Apply Coupling Medium & Treat

1. Apply a generous amount of ultrasound coupling gel to the treatment area or directly to the transducer head.
2. Place the transducer flat against the skin with full surface contact.
3. Move the transducer in slow, overlapping circular or stroking motions — never hold it stationary during operation.
4. Maintain firm, consistent contact throughout the session.

Step 7 – End of Treatment

1. The device will alert when the timer reaches zero. Press Power to stop output.
2. Remove gel from the patient's skin and clean the transducer head with a soft damp cloth.
3. Power OFF and store probes carefully.

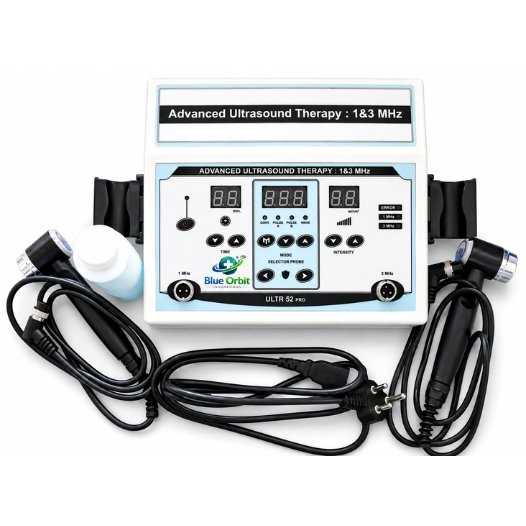

Package Contents

1. 1 × Ultrasound Therapy Main Unit
2. 1 × 1 MHz Ultrasound Transducer Probe (with cable)
3. 1 × 3 MHz Ultrasound Transducer Probe (with cable)
4. 1 × AC Power Cable Supportive 110V/ 220V (50Hz/ 60Hz)
5. 1 × Padded Black Carry Bag with shoulder strap and zip closure
6. 1 × User Manual / Instruction Guide
7. 1 x Universal Adaptor (Worldwide Socket supportive )

Safety Instructions

General Safety

1. This device is intended for use by trained and qualified physiotherapists or healthcare professionals only.
2. Do not attempt to operate, repair, or modify the device without proper training.
3. Inspect the device, cables, and probes before each use. Do not use if any damage is found.
4. Never immerse the device or probes in water or any liquid.
5. Keep the device away from flammable substances and heat sources.
6. Ensure the patient remains still and comfortable throughout treatment.
7. Never leave the patient unattended during a treatment session.

Warnings & Precautions

1. Always use coupling gel — operating the transducer without gel can damage the crystal and cause skin burns.
2. Never hold the stationary probe on the same spot — continuously move the probe to avoid periosteal burning.
3. Do not exceed recommended intensity levels for the treatment area or condition.
4. If the patient reports pain, burning sensation, or discomfort, immediately reduce intensity or stop treatment.
5. Monitor the ERROR indicator LED. If it illuminates, cease treatment and inspect the probe connection.
6. Clean and disinfect the transducer head between patients using appropriate disinfectant wipes (not alcohol-based, which can degrade the probe seal).
7. Store in the provided carry bag, away from extreme temperatures and humidity.
8. Service and calibrate annually or per manufacturer recommendations.

Maintenance & Care

1. Clean the exterior with a soft, dry or slightly damp cloth. Do not use solvents or abrasive cleaners.
2. Wipe transducer heads after each patient with a suitable medical-grade disinfectant cloth.
3. Inspect probe cables regularly for kinks, cuts, or damage.
4. Do not coil cables tightly — store loosely to preserve cable integrity.
5. Schedule periodic calibration checks with a qualified biomedical engineer.
6. Keep the carry bag clean and dry. Store in a cool, dry environment when not in use.

FAQs

1. What is this device?

Answer: A digital ultrasound device operating at 1-3MHz for personal home wellness use.

2. What if the device gets hot?

Answer: Stop immediately if device becomes excessively hot. Let it cool and check gel usage.

3. Who can use this?

Answer: Adults 18+ with understanding of ultrasound technology and safety protocols.

4. Do I need gel?

Answer: Yes, always use professional ultrasound coupling gel.

5. How long can I use it?

Answer: Maximum 10-15 minutes per area. Allow 24-48 hours rest between sessions.

6. Can I use with a pacemaker?

Answer: Absolutely not. Never use with implanted electronic devices.

7. Can pregnant women use this?

Answer: No. Do not use during pregnancy.

8. What's the difference between 1MHz and 3MHz?

Answer: 1MHz penetrates deeper; 3MHz is for superficial areas. Follow user manual guidelines.

9. Does this treat medical conditions?

Answer: No. This is for personal wellness only, not medical treatment.

10. How do I clean it?

Answer: Wipe with soft, damp cloth after each use. Dry thoroughly. Don't immerse in water.

Disclaimer:

This product is intended for personal wellness use only. Not intended to diagnose, treat, cure, or prevent any disease. Consult your healthcare provider before use and for medical advice. Not a substitute for professional medical treatment.
