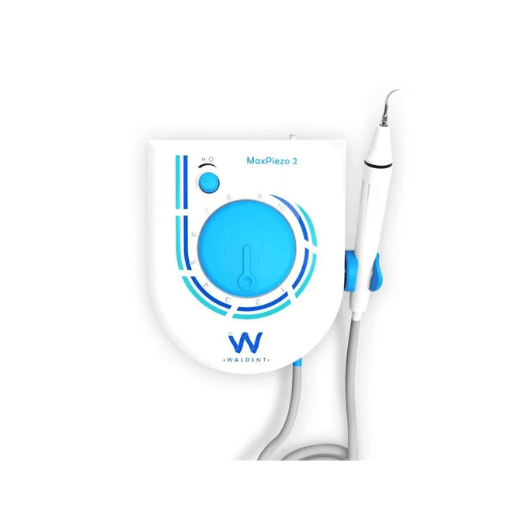

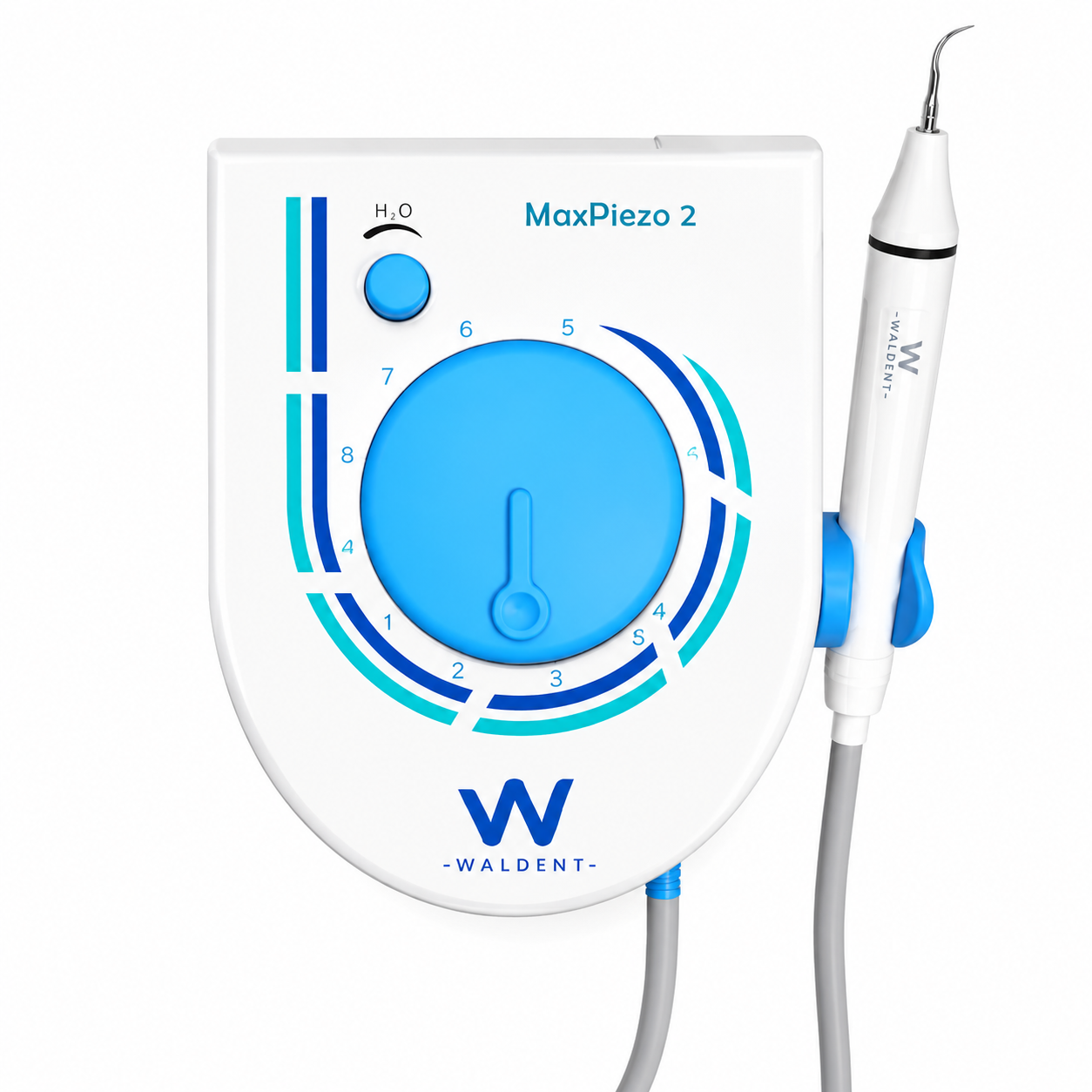

Waldent Max Piezo 2 Ultrasonic Scaler

Waldent introduces MaxPiezo2 Scaler equipped with new generation Intelligent Vibrations Core Technology inside.

This brings softer yet powerful vibrations and more comfortable experience for the patients.

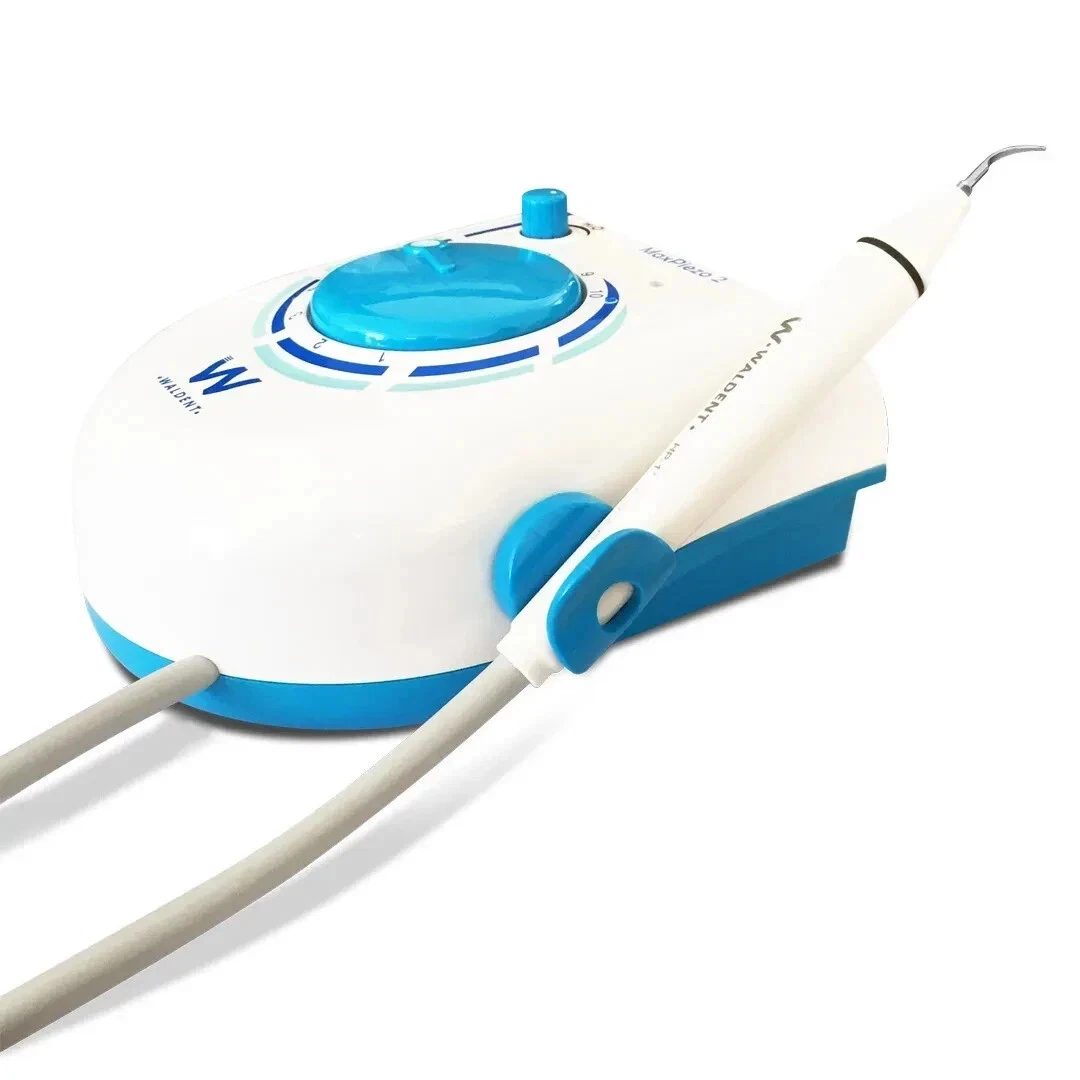

Specially designed Handpiece with engineered plastic material housing effective Ultrasound Transducer. This provides accurate frequency at the tip and dentist has an efficient scaling operation and patient has more comfortable experience.

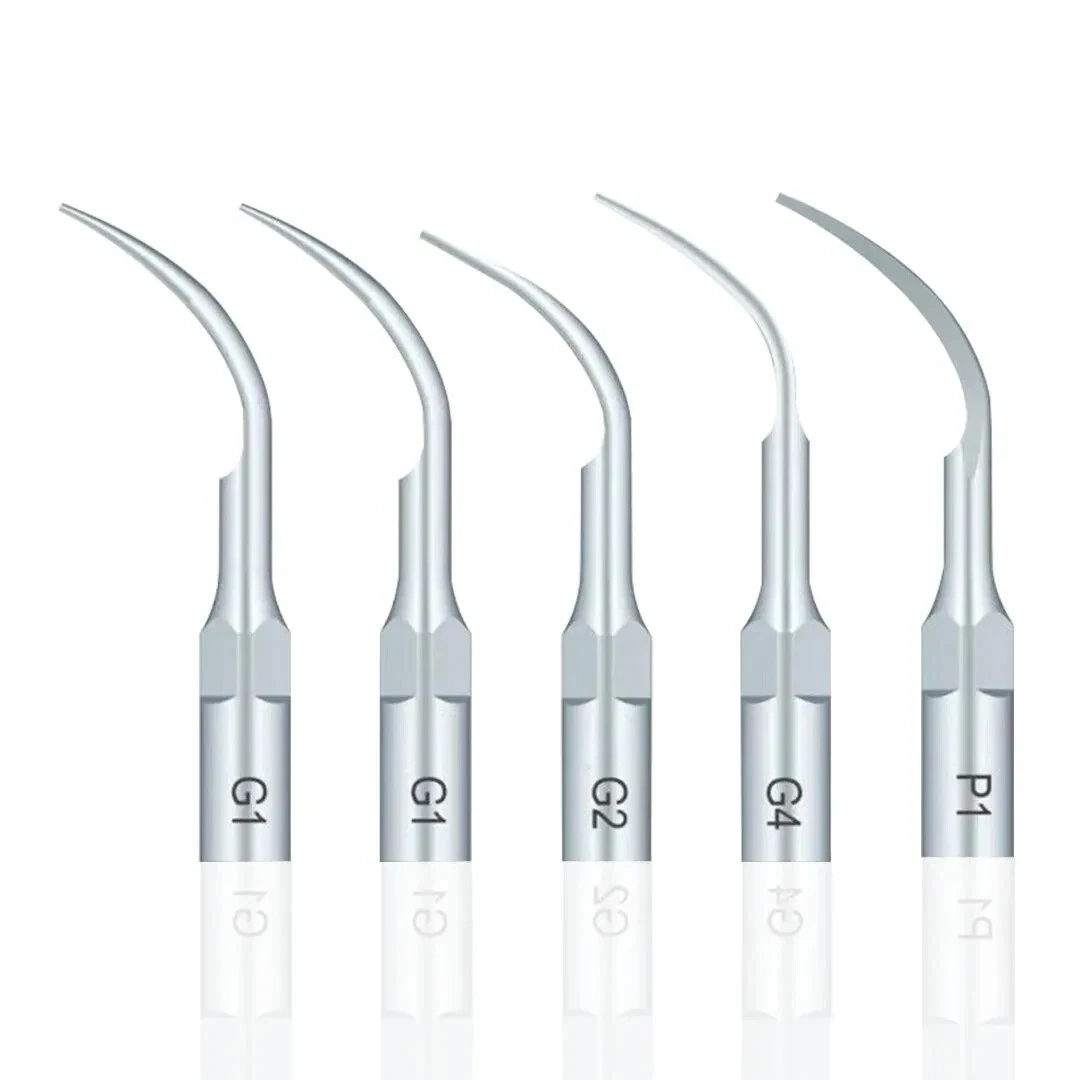

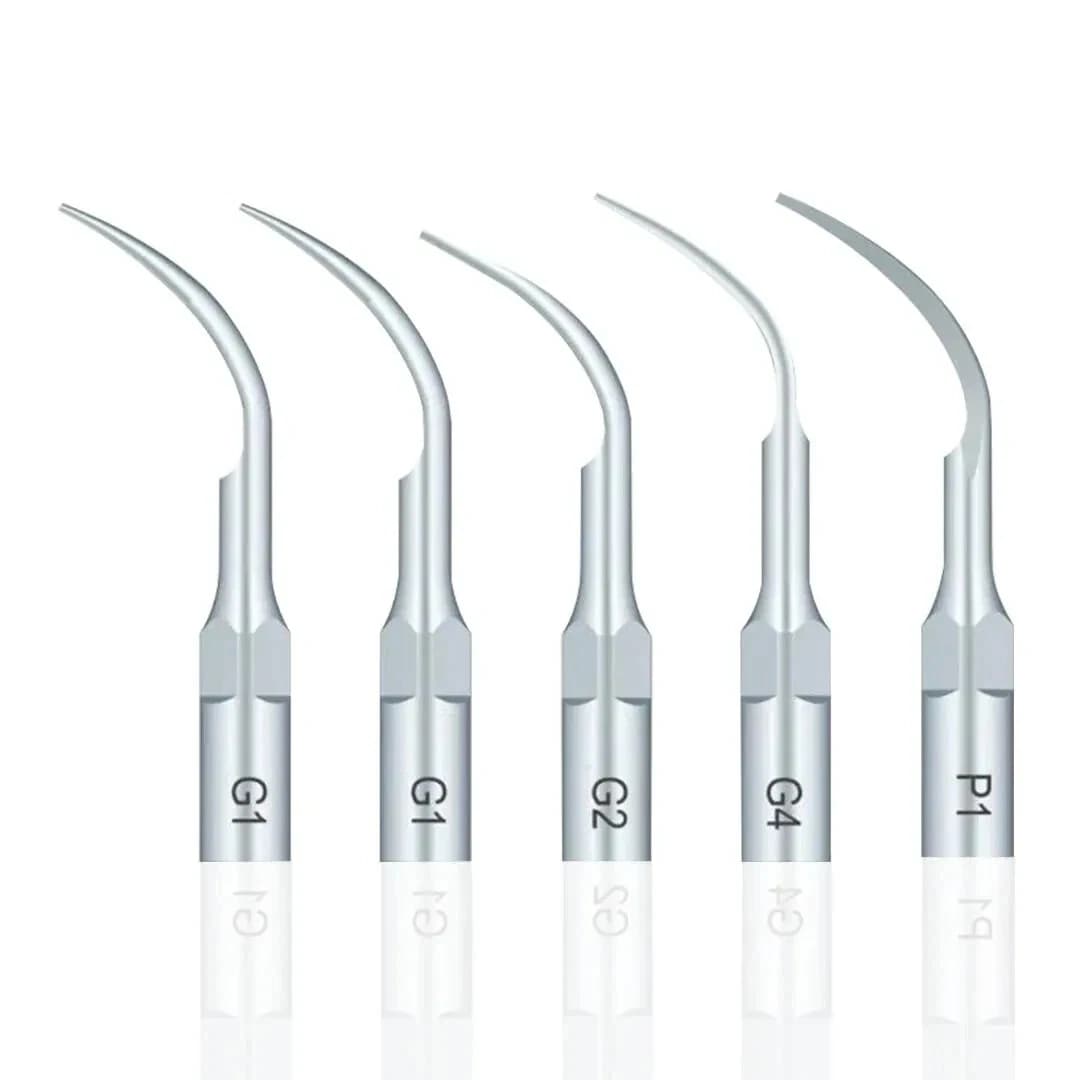

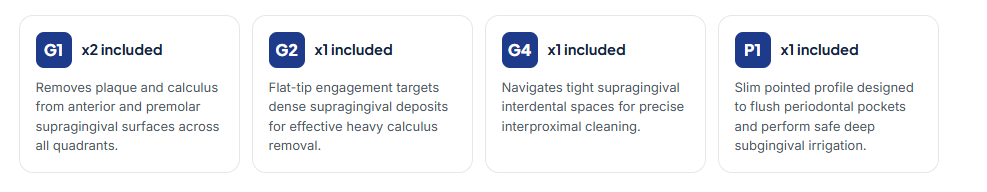

SCALER TIPS :

1. G1: Removal of supragingival deposits in all quadrants.
2. G2: Removal of heavy supragingival deposits.
3. Apply flat end to surface of teeth.
4. G4: Recommended for the treatment of interproximal spaces and for supragingival scaling.
5. P1: Slim and sharp , recommended for cleaning and irrigating of subgingival deposits.

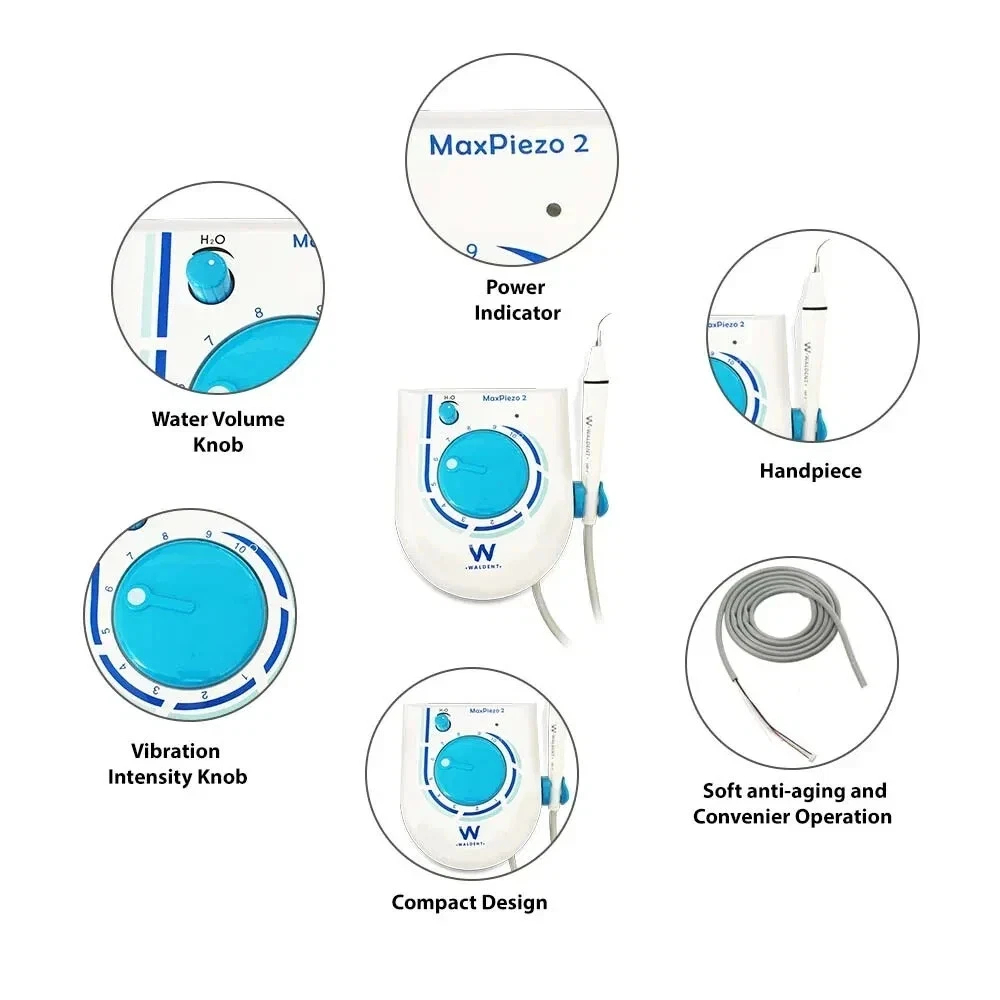

Features

1. Automatic Frequency Tracking ensures that the device always works on the best frequency
2. The handpiece cable is made from silica gel tube. Soft, Anti-Wear and Anti-Aging Cable

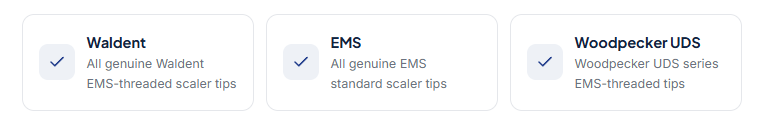

3. Handpiece is compatible with EMS tips
4. Ultra-Strong Atomization effect at the tip
5. Waterproof Surface design, easy to clean
6. Precise setting of 10 power levels, with Feather Touch dial
7. The circuit is using Military Level MOS power valve, much more reliable

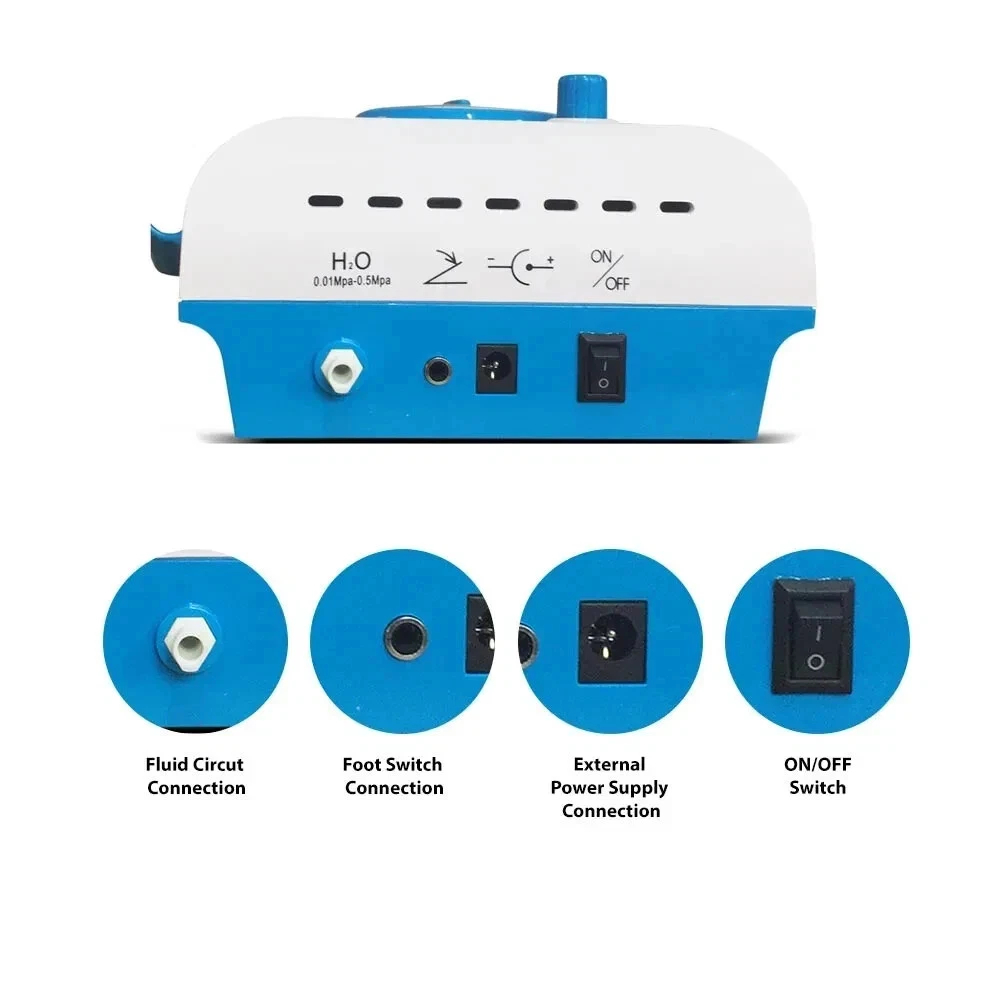

8. Special Medical Grade liquid connector, safe and healthy for convenient connection
9. Exquisite dial to select desired frequency
10. Small knob to keep a check on water flow

SPECIFICATIONS

1. Water Pressure: 0.01MPa~0.5MPa
2. Main Unit Input: AC100-240V, 47~63Hz
3. Output Power: 30VA~48VA
4. Output Half-excursion Force : <2N
5. Output Tip Vibration Frequency: 25±31KHz
6. Output Primary Tip Vibration Excursion: ≤100 μm

Packaging

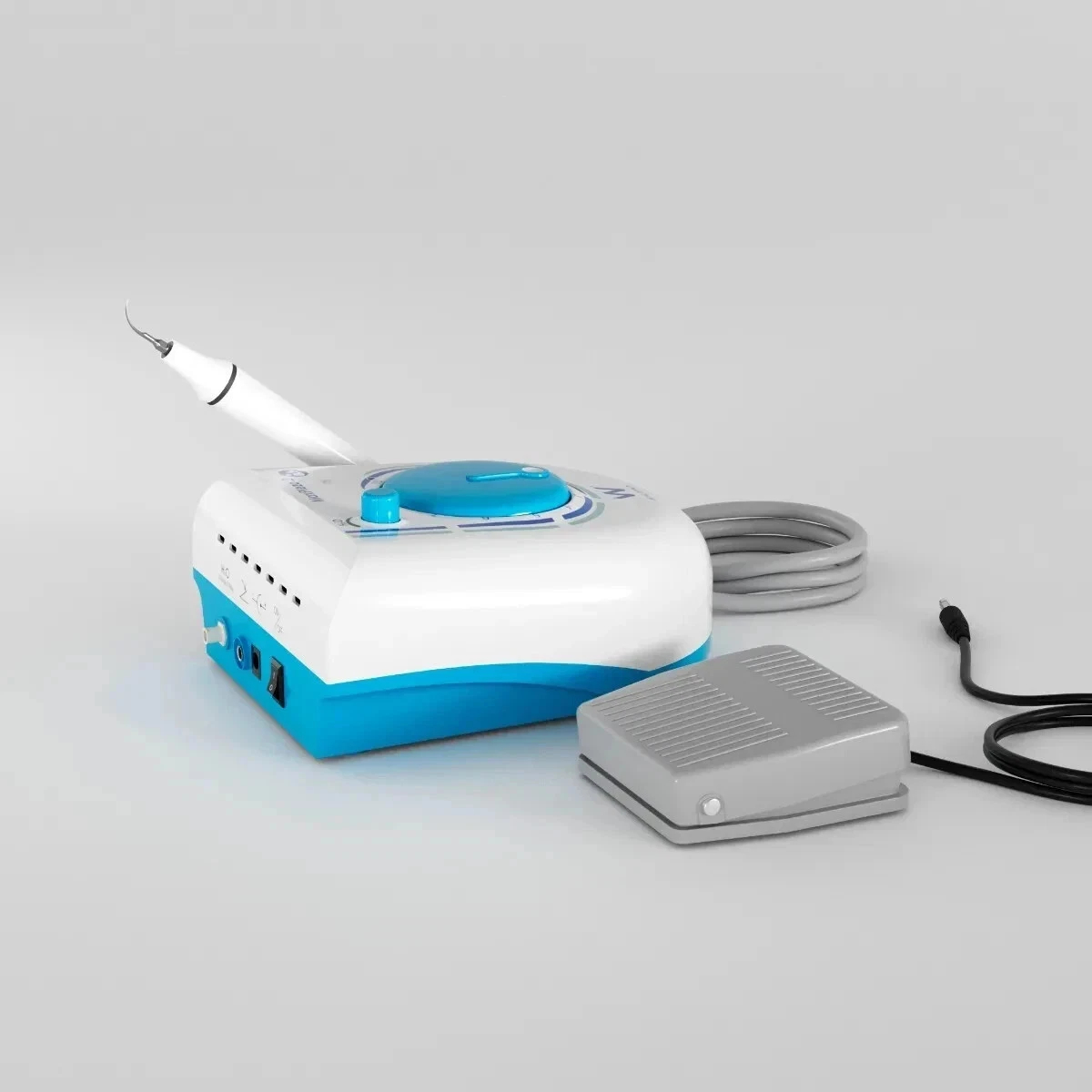

Complete set of Ultrasonic Scaler with Free Five Scaler Tips:

1. 1 x Foot Padel
2. 1 x Power Adapter
3. 1 x Torque Wrench
4. 1 x Water Tube for Water Connection
5. 2 x G1 Scaler Tip
6. 1 x G2 Scaler Tip
7. 1 x G4 Scaler Tip
8. 1 x P1 Scaler Tip
9. 1 x User Manual
10. 1 x Handpiece

Special Features

Superior Piezoelectric Technology: The Max Piezo 2 utilizes advanced piezoelectric technology, providing consistent and powerful ultrasonic vibrations. This ensures effective scaling and cleaning while minimizing discomfort for your patients.

Comprehensive Scaling Solution: This package includes 5 high-quality scaler tips, each designed for specific clinical needs. From standard to specialized tips, you’ll have the right tool for any scaling procedure, enhancing your practice's versatility.

Enhanced Ergonomics: The ergonomic design of the Max Piezo 2 ensures comfortable handling and ease of use. Its lightweight and well-balanced build reduce hand strain, allowing for longer procedures with greater precision.

Adjustable Power Settings: Customize your scaling experience with adjustable power settings. The Max Piezo 2 allows you to easily control the intensity of the ultrasonic vibrations, providing tailored treatment for each patient.

Durable and Reliable: Constructed with high-quality materials, the Max Piezo 2 is built to last. Its robust design ensures durability and reliability, even under frequent use in a busy dental practice.

Directions for Use

Preparation:

1. Ensure that the scaler is plugged into a power source compatible with the input specifications (AC100-240V, 47~63Hz).
2. Connect the handpiece to the main unit securely, ensuring a tight fit.
3. Fill the water reservoir with clean water. Adjust the water flow using the small knob provided.

Selecting the Tip:

1. Choose the appropriate scaler tip based on the specific dental procedure or area to be treated. Options include G1, G2, G4, P1, and others, catering to various needs.

Power Adjustment:

1. Turn on the scaler using the power button or switch.
2. Use the feather-touch dial to adjust the power level to the desired setting. Start with a lower power level for delicate procedures and increase as needed.

Scaling Procedure:

1. Hold the handpiece comfortably and maneuver it gently around the teeth and gum line.
2. Direct the scaler tip towards the targeted area, ensuring proper contact for effective scaling.
3. Move the tip in a controlled, circular motion, gradually removing deposits and plaque from the tooth surfaces.

Adjusting Frequency:

1. If necessary, use the exquisite dial to select the desired frequency for optimal performance.
2. The automatic frequency tracking feature ensures that the device operates at the best frequency for efficient scaling.

Device Handling

1. After use, turn off the scaler and disconnect the handpiece from the main unit.
2. Clean the scaler tip and handpiece thoroughly with water and a mild disinfectant solution.
3. Wipe the surface of the scaler and handpiece dry with a clean, soft cloth.
4. Store the scaler and tips in a clean and dry environment to prevent contamination.

FAQs

Q: What are these tips used for?

A: These are device accessories designed for use with compatible ultrasonic scaler devices to support general cleaning applications.

Q: Are these medical devices?

A: No. These are device accessories for general use only. They do not provide medical or clinical functions on their own and are not intended to diagnose, treat, cure, or prevent any disease.

Q: What is included in the pack?

A: The pack includes scaler tips as specified. Check the product packaging for exact quantity and specifications.

Q: What devices are these compatible with?

A: These tips are designed for compatible dental scaler devices. Check your device manual and these tip specifications for compatibility information.

Q: How do I use these tips?

A: Attach the tip securely to your compatible ultrasonic scaler device and follow the device manufacturer's instructions for operation.

Q: How often should I replace the tips?

A: Replace tips as recommended by your device manufacturer's guidance or when you notice wear or reduced performance.

Q: Are these durable?

A: Yes. These tips feature durable construction and precision engineering for repeated device use with consistent performance.

Q: How should I store these tips?

A: Store in a clean, dry environment. Follow manufacturer storage recommendations to maintain tip quality and performance.

Q: Can I use these for clinical procedures?

A: No. These are device accessories for general device use only, not intended for medical diagnosis, treatment, or clinical procedures.

Q: What makes these tips precision-engineered?

A: These tips are manufactured with precision engineering to ensure consistent performance and secure attachment to compatible scaler devices.

Disclaimer:

This product is designed for use by trained dental professionals. Not intended for medical diagnosis or treatment. Proper professional training and certification required for safe operation. Consult dental professionals for guidance.
