1&3 MHz Ultrasound Therapy Machine Apex Ultra

The APEX ULTRA is a professional-grade therapeutic ultrasound machine designed to deliver clinic-quality pain management at your convenience. Built for both deep tissue healing and superficial pain relief, this dual-frequency (1 MHz and 3 MHz) device takes the absolute guesswork out of your recovery. It comes fully loaded with 27 preset clinical programs that automatically adjust the frequency, output mode, and timer to target your specific musculoskeletal conditions.

Whether you are managing chronic back pain or a recent sports injury, this unit delivers consistent, targeted energy to stimulate circulation and reduce inflammation. With its sleek digital display, dual dedicated probes, and highly intuitive controls, it is a must-have, drug-free rehabilitation solution for clinics, physiotherapists, and everyday home users alike.

Product Uses

The APEX ultrasound treatment machine features a 27-program library that covers a comprehensive range of musculoskeletal conditions commonly treated in physiotherapy, sports medicine, and home rehabilitation settings. Its dual-frequency capability allows you to address both deep and superficial tissue pathologies within a single device session.

Upper Limb Conditions

1. Rotator cuff tendinopathy and partial tears involving the supraspinatus or infraspinatus
2. Shoulder impingement syndrome and subacromial bursitis
3. Frozen shoulder (adhesive capsulitis) for capsule extensibility improvement
4. Lateral epicondylitis (tennis elbow) and medial epicondylitis (golfer's elbow)
5. Carpal tunnel syndrome with median nerve compression at the wrist
6. De Quervain's tenosynovitis in the first dorsal compartment
7. Trigger finger and finger joint sprains
8. Wrist sprains and TFCC injury

Lower Limb Conditions

1. Achilles tendinopathy, both midportion and insertional
2. Plantar fasciitis and heel spur syndrome
3. Ankle lateral ligament sprains (subacute and chronic)
4. Knee osteoarthritis in the medial and lateral compartments
5. Patellar tendinopathy (jumper's knee) and Osgood-Schlatter disease
6. IT band syndrome (iliotibial band friction syndrome)
7. Hamstring and quadriceps muscle strain
8. Hip osteoarthritis and trochanteric bursitis
9. Piriformis syndrome and deep gluteal pain
10. Metatarsalgia and small foot joint conditions

Spinal & Core Conditions

1. Chronic and subacute low back pain
2. Lumbar disc syndromes and facet joint arthropathy
3. Cervical spondylosis, neck pain, and cervicogenic headache
4. Paravertebral muscle spasm and thoracic pain
5. Sacroiliac joint dysfunction

General Soft Tissue & Systemic

1. Trigger point therapy for any region with myofascial trigger point involvement
2. Myofascial pain syndrome, both diffuse and localised
3. Post-surgical scar tissue softening and adhesion breakdown
4. Post-traumatic oedema reduction and swelling management
5. Osteoarthritis in any peripheral joint for pain modulation and mobility
6. Acute soft tissue injury using a pulsed, low-intensity protocol for haematoma resorption

Phonophoresis (Program 27)

1. Transdermal delivery of topical anti-inflammatory and analgesic medications (e.g., diclofenac, ibuprofen gel, hydrocortisone) using ultrasound as the delivery medium. Always follow prescribing guidelines and use a phonophoresis-rated coupling medium.

How to Use

Setup

1. Place the APEX ULTRA-103 on a stable, flat surface. Ensure ventilation areas are unobstructed.

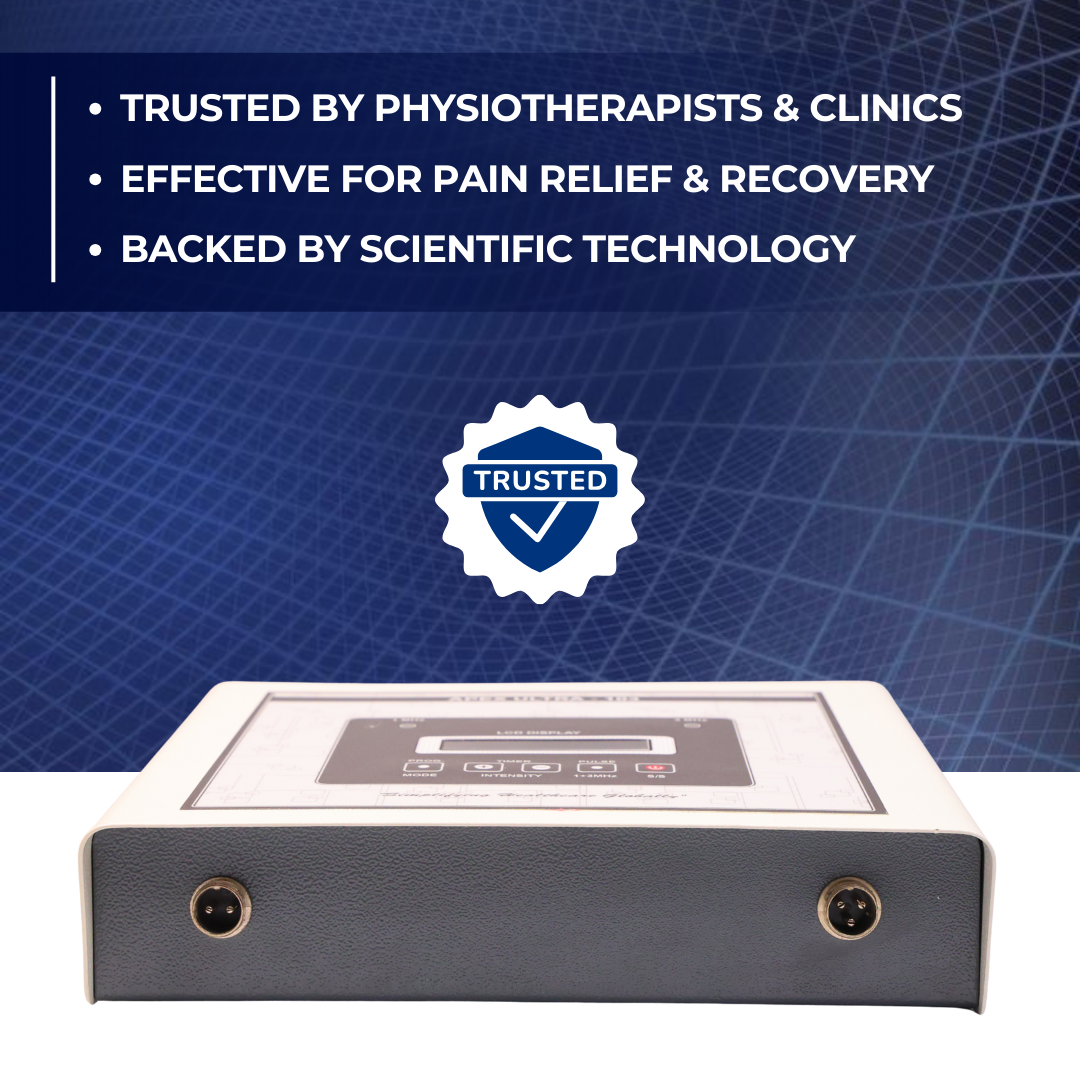

2. Connect the 1 MHz probe to the left side-panel port and the 3 MHz probe to the right side-panel port.
3. Plug the AC power cable into a properly earthed mains outlet.
4. Press the Power button, the LCD illuminates, and the unit performs a self-check. Confirm no error is shown.

Patient Assessment & Preparation

1. Confirm the clinical diagnosis and screen for all contraindications before proceeding.
2. Position the patient comfortably with the target area exposed and accessible.
3. Inspect skin integrity. Do not treat over broken, infected, or compromised skin.
4. Apply a generous amount of therapeutic ultrasound coupling gel to the treatment area or transducer face.

Option A: Using a Pre-Set Program (Recommended)

1. Press PROG/MODE to cycle through the 27 programs. The LCD will show the program number and condition name or code.
2. Select the program matching the patient's condition. The unit auto-loads frequency, mode, pulse ratio, intensity, and timer.
3. Press 1/3 MHz to confirm the correct probe is active (the program may auto-select this).
4. Review all parameters on the LCD. Adjust intensity via the INTENSITY button if clinically needed.
5. Press S/S to start treatment. Move the probe continuously in slow circular/stroking motions: never hold it stationary.
6. The LCD timer counts down. The unit alerts and stops automatically at session end.

Option B: Manual Parameter Control

1. Press 1/3 MHz to select the desired frequency (confirmed on LCD).
2. Press PULSE to select Continuous or Pulsed mode. Press repeatedly to cycle pulse ratios.
3. Press TIMER to set treatment duration (5–10 minutes per area).
4. Press INTENSITY to step up to the desired W/cm² level (start at 0.5 W/cm²).
5. Press S/S to start. Apply gel and move the probe continuously throughout treatment.

During Treatment

1. Keep the transducer moving at all times: continuous, slow circular or longitudinal strokes.
2. Maintain firm, consistent skin contact throughout to ensure acoustic coupling.
3. Monitor the patient continuously. Reduce intensity or stop if the patient reports pain, burning, or an unusual sensation of heat.

End of Treatment

1. Press S/S to stop, or allow the timer to complete naturally.
2. Reduce intensity to zero before removing the probe from the patient.
3. Power off via the Power button.
4. Remove the coupling gel from the patient's skin. Clean the transducer faces with an approved disinfectant wipe.
5. Document the program used, frequency, mode, intensity, and duration in the patient's clinical record.

Product Features

Here are the standout features of this digital ultrasonic therapy machine:

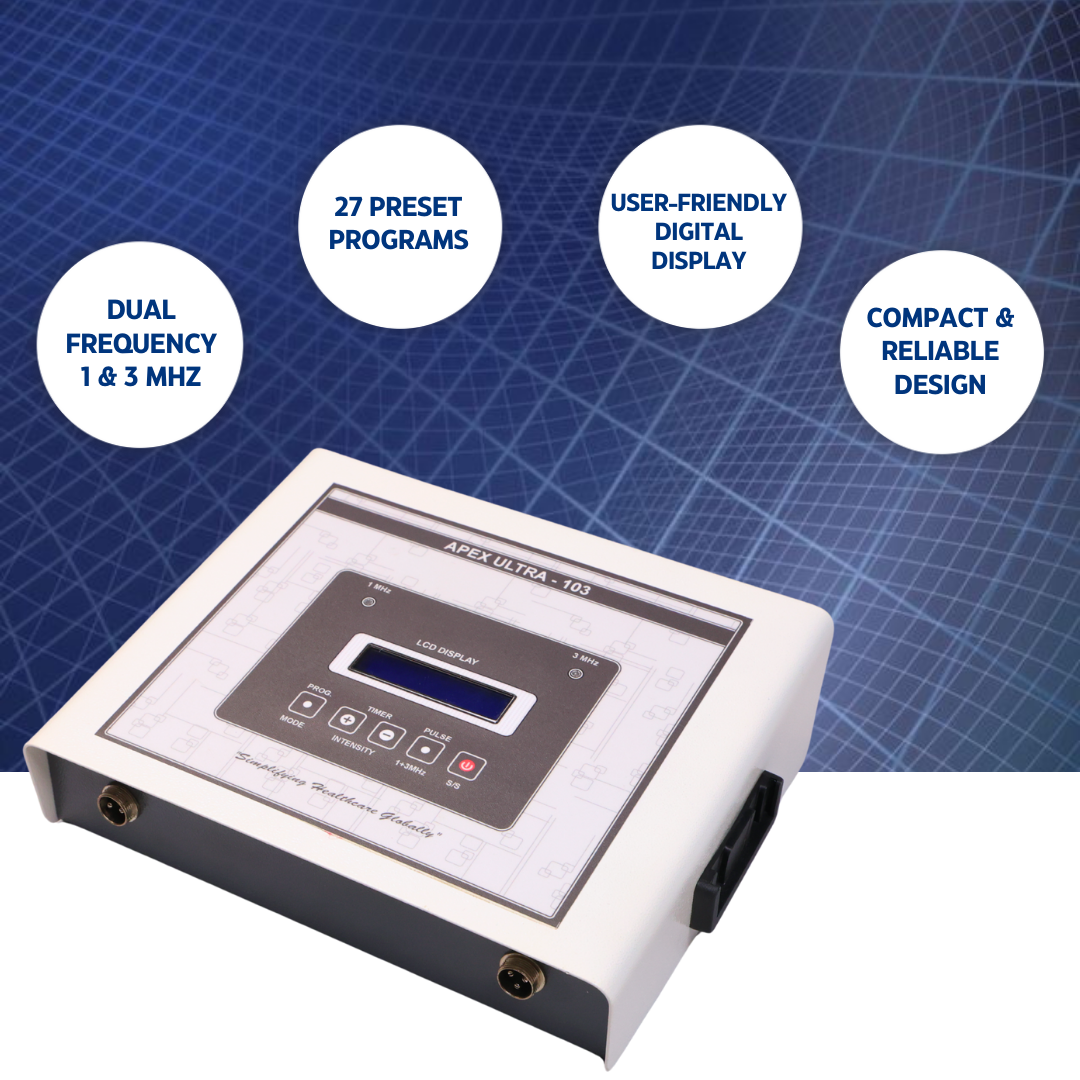

1. 27 Preset Clinical Treatment Programs: Each program automatically configures all parameters to suit specific conditions and different treatment needs.
2. Dual-Frequency Operation: Operates at 1 MHz for deep tissue up to 5 cm and 3 MHz for superficial tissue up to 2 to 3 cm.
3. Two Dedicated Probe Ports and Matched Transducers: Includes two separate probes to eliminate probe swapping mid-session.

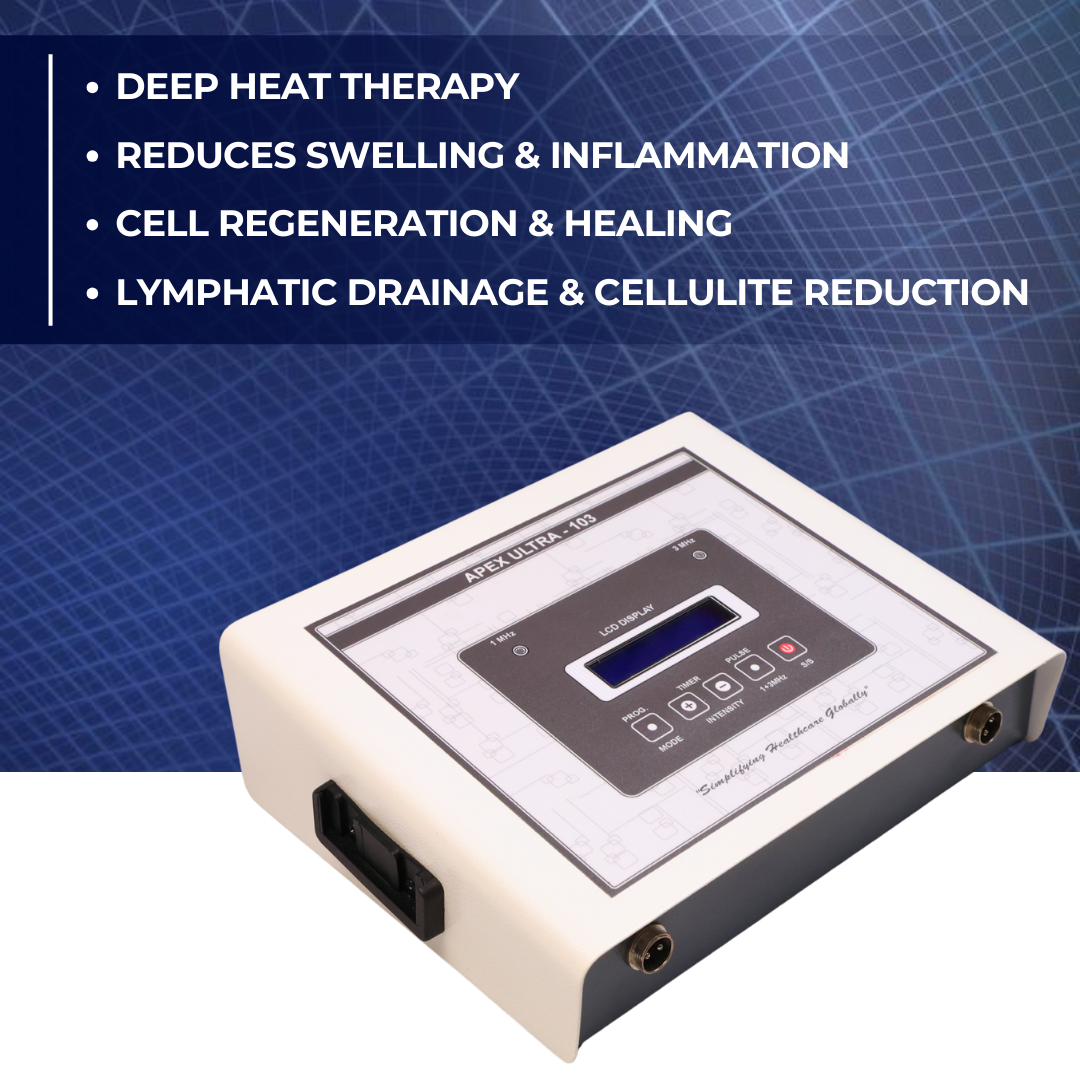

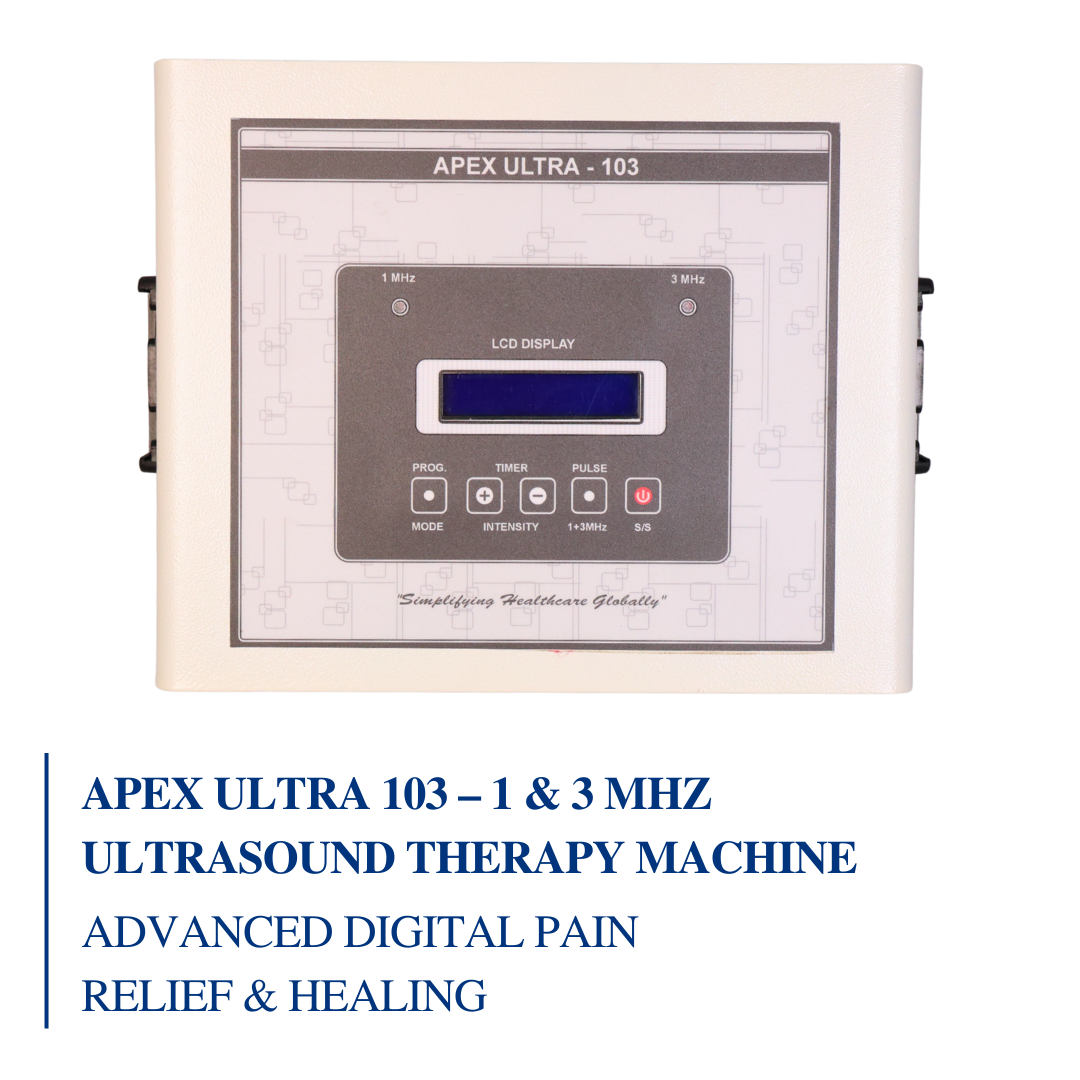

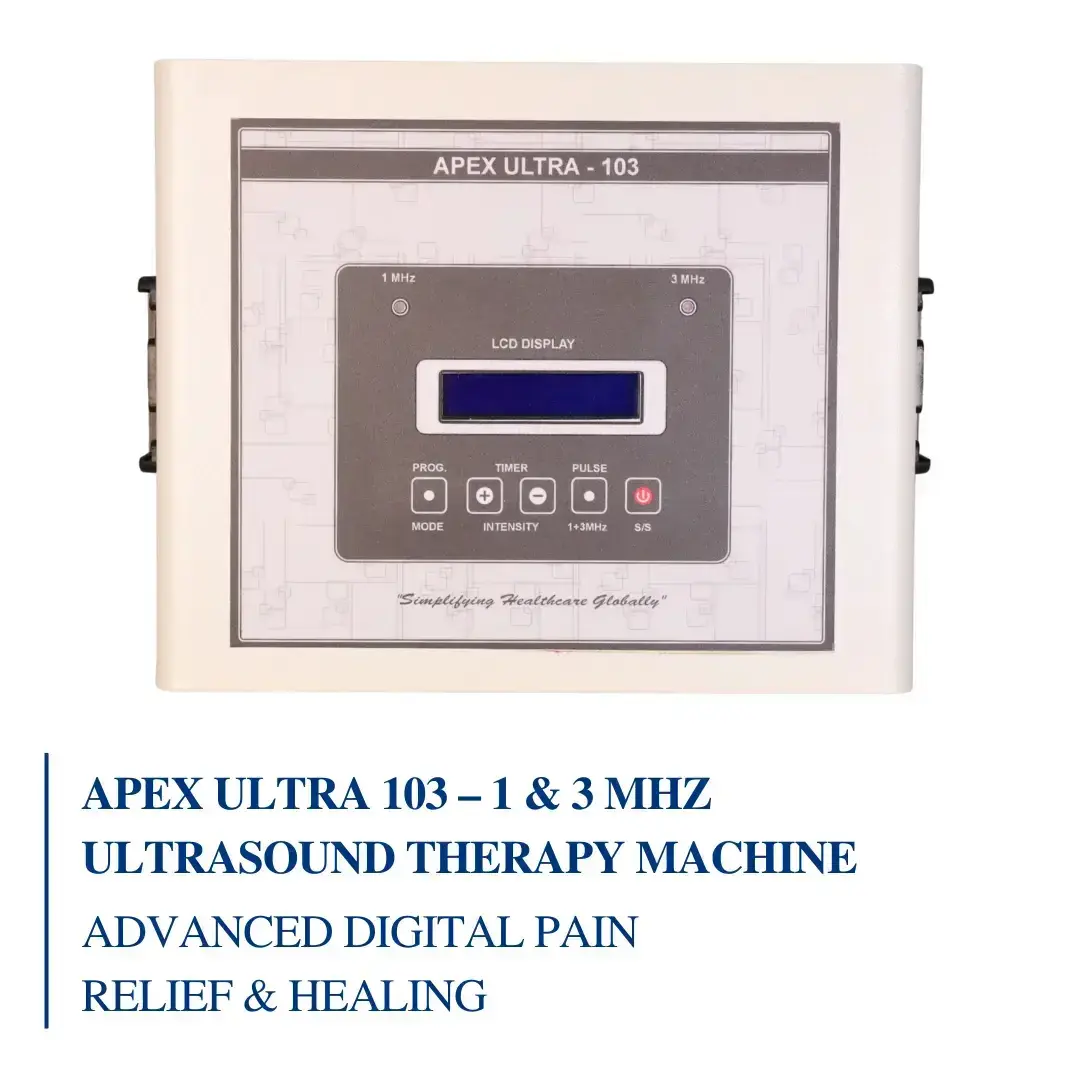

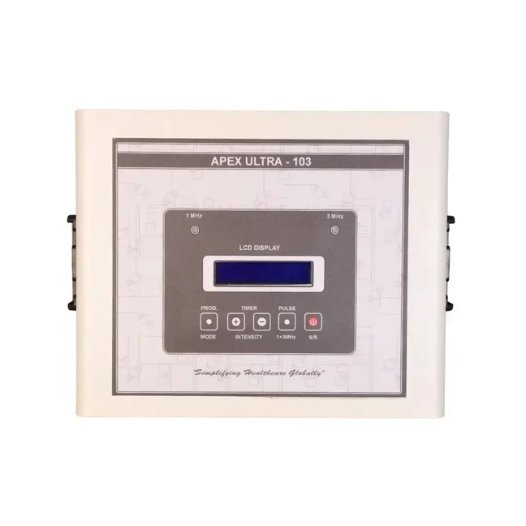

4. Blue Backlit LCD Control Panel: Provides easy monitoring of the program number, frequency, mode, intensity, and timer all on one clear screen.
5. User-Friendly Operating System: Features a 5-button digital control interface with soft-touch buttons for PROG/MODE, TIMER, INTENSITY, PULSE, and S/S.
6. Flexible Output Modes: Offers Continuous and Pulsed output modes that are clinician-selectable or automatically set by the chosen program.
7. Manual Override Capability: Allows full individual parameter control when you are not using the preset programs.
8. Dedicated Frequency Toggle: A simple 1/3 MHz button allows for rapid probe and channel switching.
9. Professional Clinic-Grade Build: Comes in a stable square desktop enclosure.
10. Safe Non-Invasive Pain Management: This therapeutic ultrasound machine provides a completely drug-free and safe therapy solution.

Technical Specification

Control Panel Functions

27 Pre-Set Treatment Programs

The APEX ULTRA contains 27 factory-programmed treatment protocols. When a program is selected via the PROG/MODE button, the unit automatically loads the recommended frequency, output mode, pulse ratio, intensity, and treatment duration for that condition. The operator may fine-tune parameters as clinically required. The table below lists the representative program mapping:

Frequency Guide

Handling Tips

1. Essential Gel Application: You must always use an approved coupling gel before activating the output. Never substitute it with ordinary lotions, and absolutely never run the probe without gel, as doing so will damage the crystal and risk burning the patient.
2. Safe Probe Techniques: To prevent localized overheating and periosteal burns, keep the probe moving continuously while the output is active. Never hold it stationary, avoid operating the probe in the air, and make sure to reduce the intensity when working over bony areas with minimal soft tissue.
3. Customizing the Output: When using this ultrasound heat therapy machine, remember to select the pulsed mode for acute injuries to minimize thermal effects. Additionally, elderly and vascular-compromised patients are much more sensitive to heat, so you should always start their treatments at lower intensities.
4. Strict Hygiene Standards: Disinfect the transducer faces between every single patient using a validated, non-alcohol medical wipe. For the main console, gently wipe the exterior and LCD screen with a soft, lightly damp, lint-free cloth, making sure never to spray or apply liquid directly onto the screen.
5. Routine Inspection & Cable Care: Before every session, inspect the device, ports, and cables for any kinks, cuts, or exposed wires, and do not use the unit if you find any damage. To keep the conductors intact, always store the probe cables in loose coils rather than wrapping them tightly.
6. Storage & Professional Servicing: Store this portable therapeutic ultrasound machine in a clean, dry place away from direct sunlight, extreme humidity, flammable liquids, and direct heat. Never attempt to open or repair the device yourself; instead, rely on authorized service agents and schedule an annual calibration with a qualified biomedical engineer.

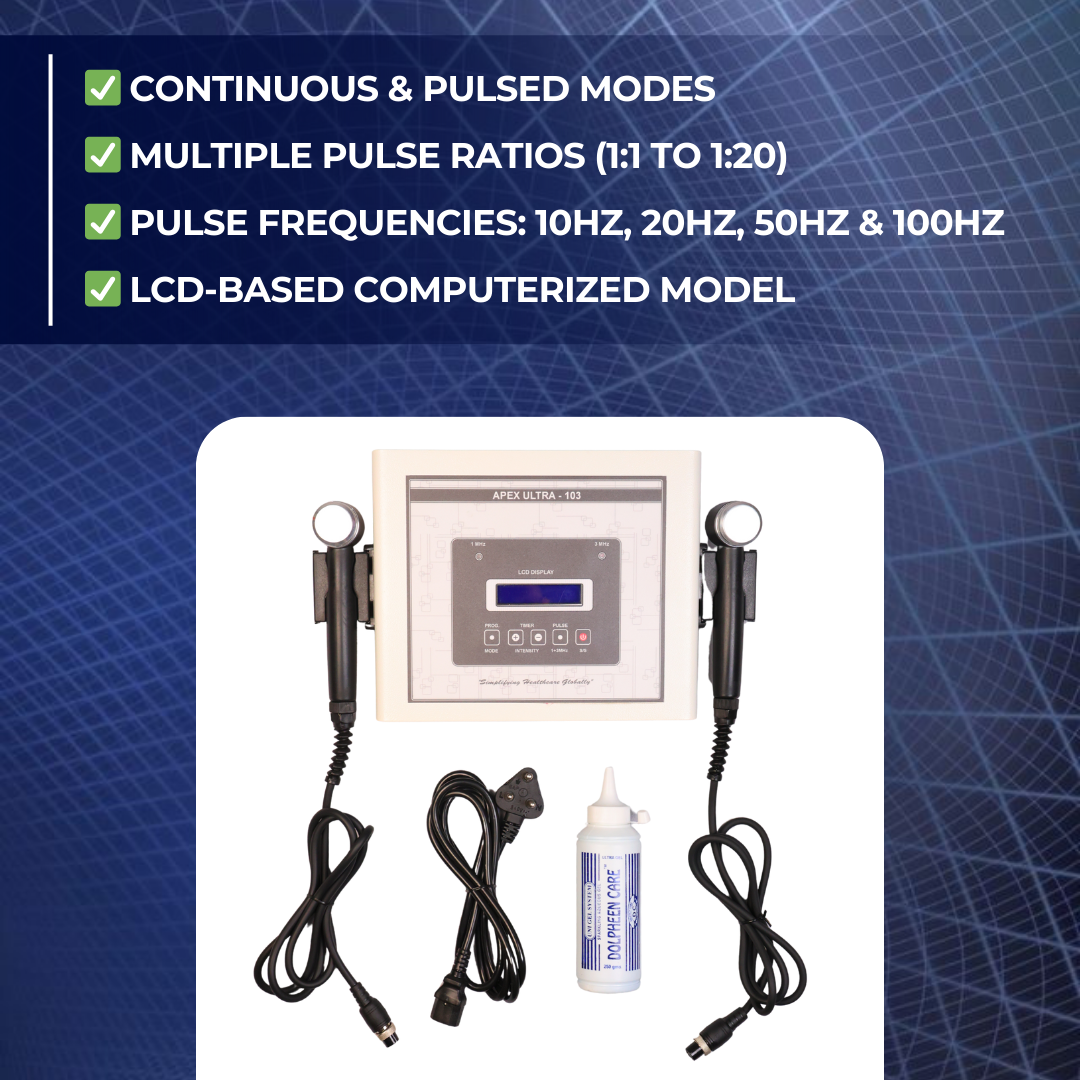

Product Packaging

The package includes the following:

1. 1 × APEX ULTRA Main Unit
2. 1 × 1 MHz Transducer Probe
3. 1 × 3 MHz Transducer Probe
4. 1 × AC Mains Power Cable
5. 1 × Ultrasound Gel Bottle
6. 1 × User / Operating Manual with 27-Program Guide

Medical Disclaimer

This digital ultrasonic therapy machine must only be operated by trained healthcare professionals. Always perform a skin sensation check before starting, double-check your preset parameters, and never leave a patient unattended. If the patient reports any burning or unusual discomfort, stop the session immediately. Use it for general wellness purposes only. It is not intended to diagnose, treat, cure, or prevent any disease. It is not a medical device.

FAQ

1. What is this ultrasound treatment machine?

Answer: This is a portable 1-3MHz ultrasound wellness device designed for personal home wellness routines. It is a personal wellness product for general use, not a medical device, and not intended for medical diagnosis, treatment, or therapy.

2. Is this a medical device?

Answer: No. This is a portable therapeutic ultrasound machine for general home use only. It is not a medical device and does not provide medical therapy, diagnosis, or treatment. For any medical concerns, please consult a qualified healthcare professional.

3. Who can use this device?

Answer: This device is intended for adults 18 years and older for personal home wellness use. It is not to be used by children. If you have any medical conditions, consult a healthcare professional before use.

4. Do I need to use gel with this device?

Answer: Yes, always use appropriate ultrasound coupling gel when operating this device. The gel ensures proper contact between the device and skin. Never use the device without gel, as this may affect performance.

5. Can pregnant women use this device?

Answer: No. Do not use this device if you are pregnant or nursing. If you have any questions about use during pregnancy, consult your healthcare provider.

6. Can I use this device if I have a pacemaker?

Answer: No. Do not use this device if you have a pacemaker or any implanted electronic medical devices. This is a safety precaution to avoid any potential interference.

7. How long can I use the device per session?

Answer: Follow the user manual guidelines for recommended usage duration. Avoid prolonged or excessive use. Typically, keep sessions short and allow adequate rest time between uses. Stop immediately if you experience any discomfort.

8. What should I do if I experience discomfort during use?

Answer: Stop using the device immediately if you experience any pain, discomfort, or unusual sensations. Discontinue use and consult a healthcare professional if discomfort persists. This device is for general wellness only and should not cause pain.

9. How do I clean and store this device?

Answer: After each use, wipe the device with a soft, damp cloth to remove any gel residue. Dry thoroughly. Store in a cool, dry place away from direct sunlight, moisture, and extreme temperatures. Keep out of reach of children.

Warranty/Support

We stand behind the build quality of the APEX ULTRA to ensure this ultrasound heat therapy machine delivers reliable, day-to-day performance without any hiccups. If you ever run into technical issues, need replacement probes, or simply want help navigating the 27 preset programs, our dedicated customer support team at snapshophub is just a quick call or email away. Please keep your original invoice handy for any seamless support requests!

Certified Quality: Holds ISO and CE certifications.

Availability: Our product is also available for purchase on eBay.

Conclusion

Ultimately, the APEX ULTRA is more than just a standard rehabilitation device; it is a comprehensive solution designed to simplify your recovery journey. By combining powerful dual-frequency capabilities with 27 intuitive pre-set programs, this therapeutic ultrasound machine completely takes the guesswork out of managing daily musculoskeletal pain.

Whether you are dealing with a deep tissue injury like a muscle strain or a superficial issue like tennis elbow, it delivers precise, protocol-driven relief exactly where you need it most. Whether you are a physiotherapist upgrading a clinic or someone seeking reliable, drug-free home care, investing in these ultrasound treatment machine ensures you have a safe and highly effective tool at your fingertips. Say goodbye to complicated setups and embrace a smarter way to heal!
