Woodpecker i-Sensor RVG Dental X-Ray Sensor – High-Resolution Imaging (H1 & H2)

Woodpecker i-Sensor RVG – High-Definition Intraoral Sensor for Precise Digital Imaging

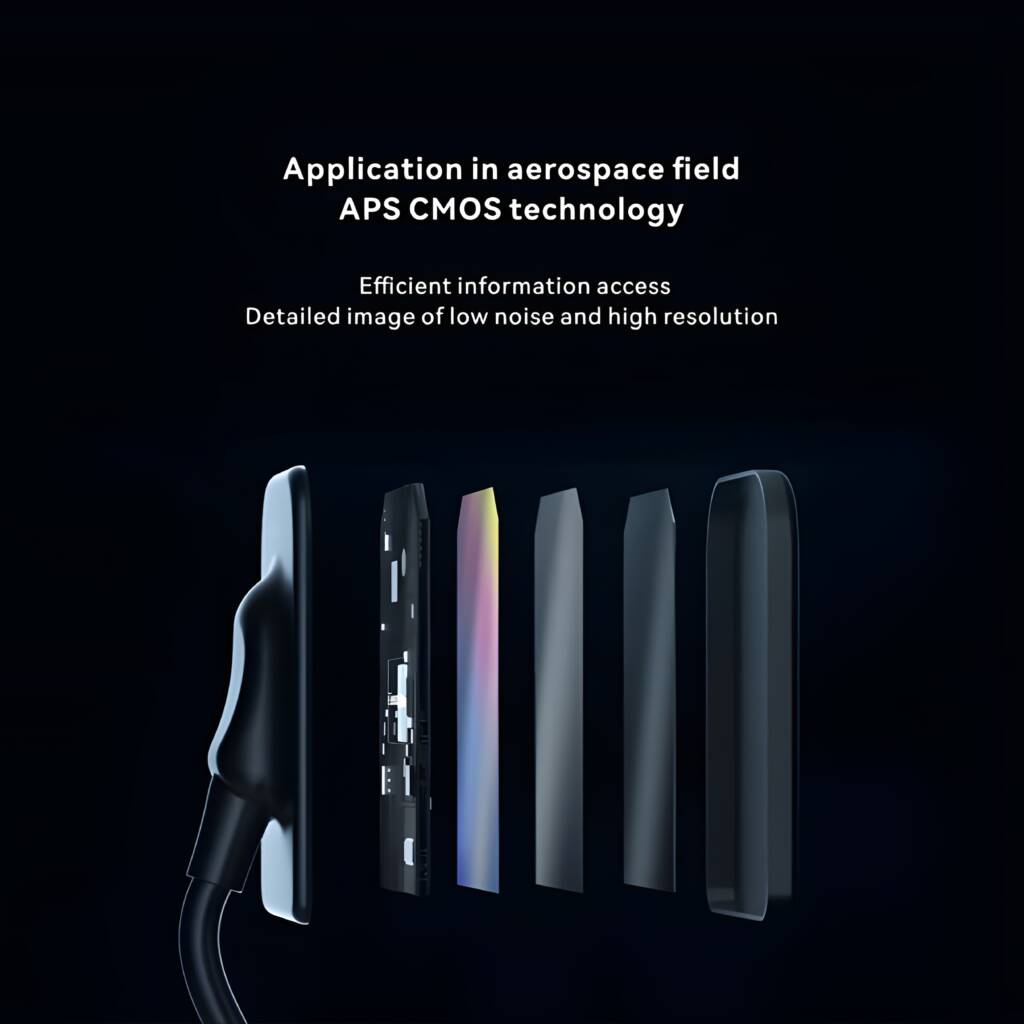

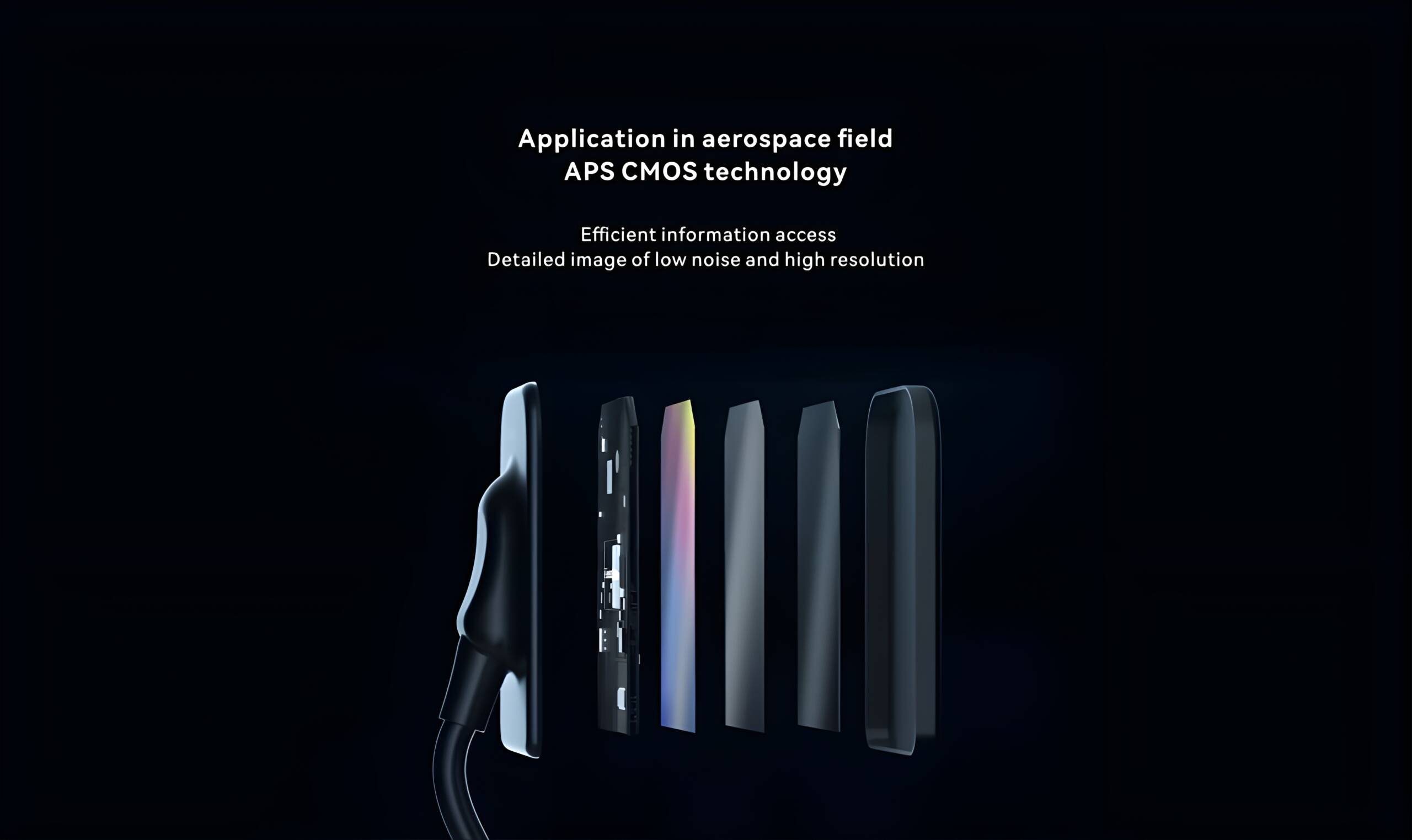

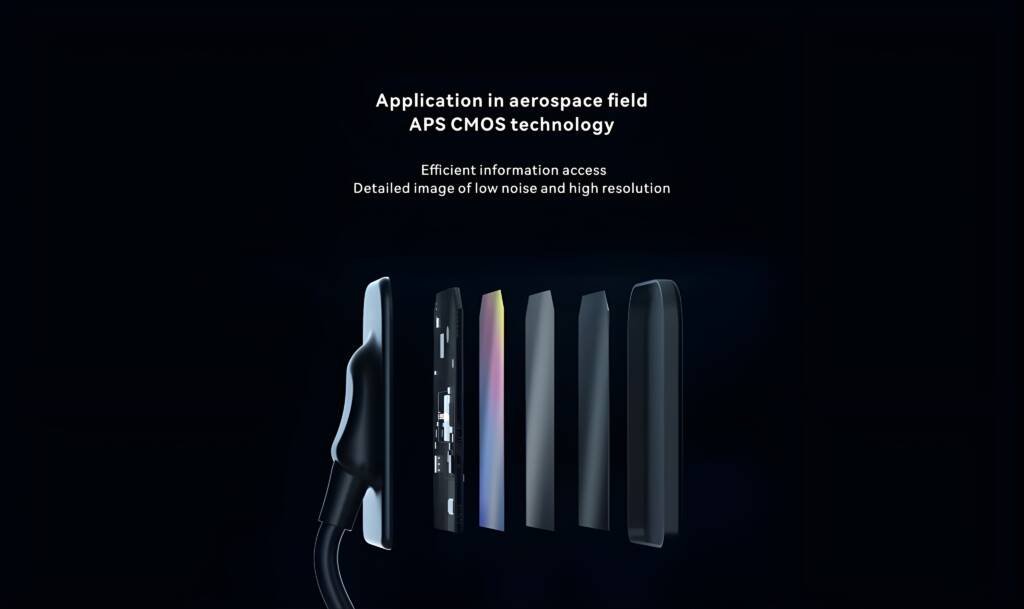

The Woodpecker i-Sensor RVG is an advanced intraoral radiographic sensor designed for high-resolution dental imaging. Featuring APS CMOS technology and an exceptional true resolution of 20 lp/mm (theoretical maximum of 25 lp/mm), this sensor delivers crisp, detailed images that aid in accurate diagnosis and efficient treatment planning.

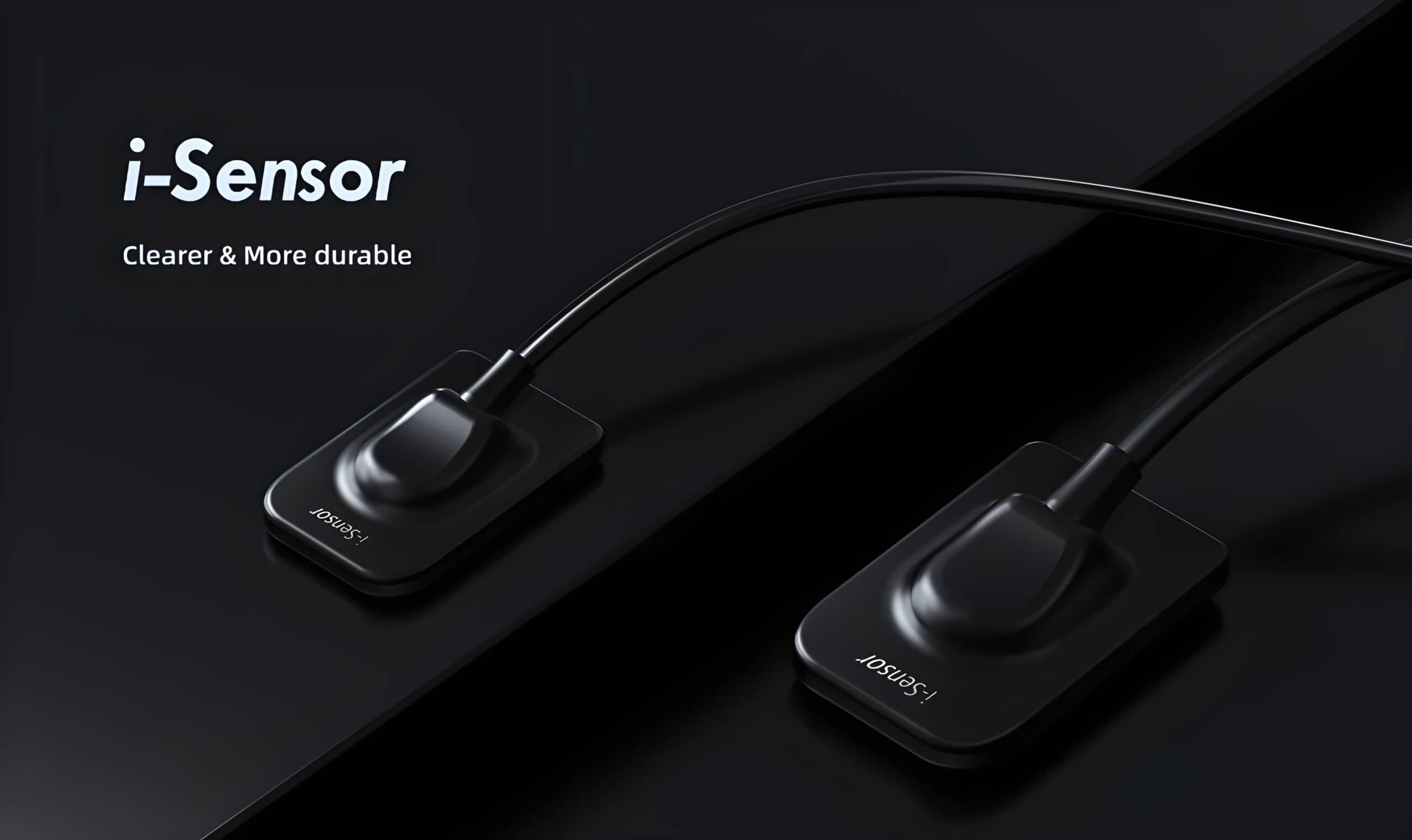

Available in two sensor sizes – H1 and H2 – it ensures compatibility with different patient anatomies and clinical requirements. Whether you’re imaging anterior teeth, molars, or pediatric patients, the i-Sensor provides optimal positioning and clear results.

Key Features

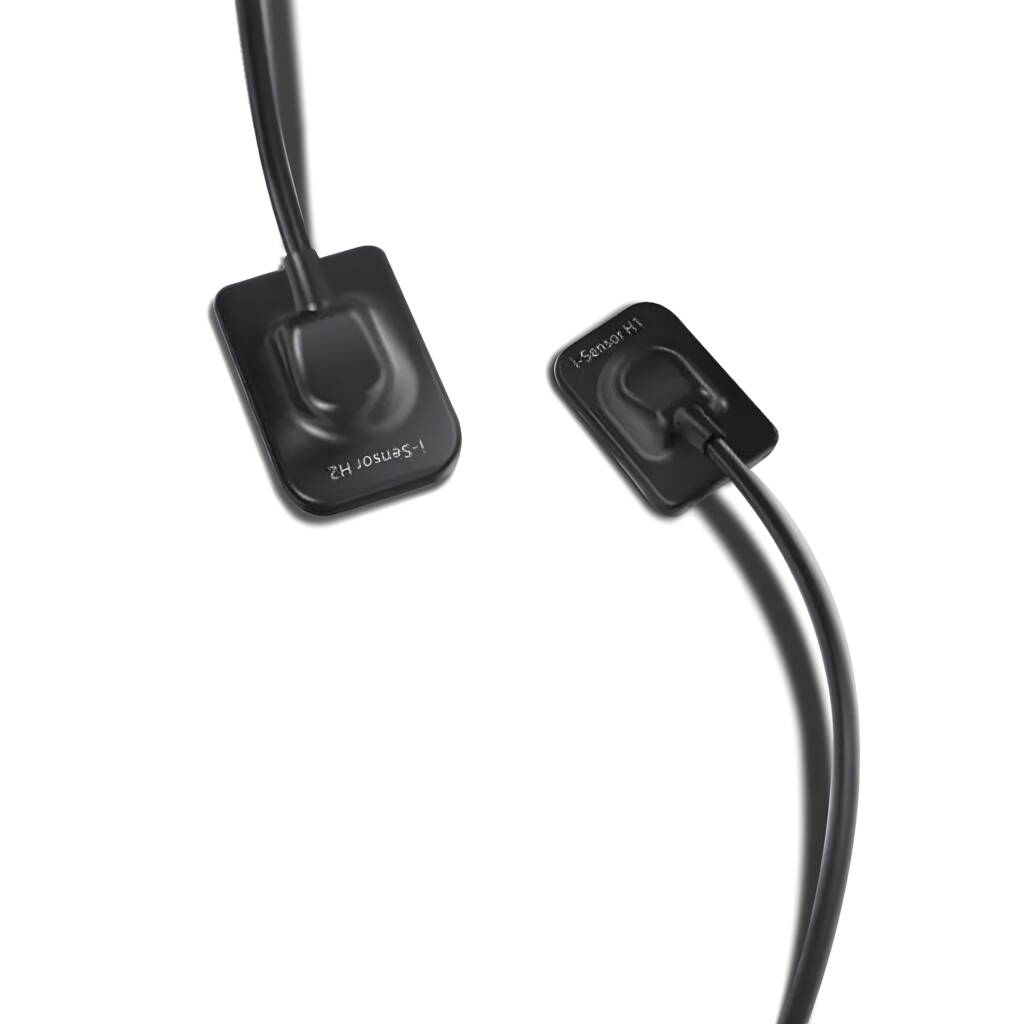

• Two Sensor Sizes (H1 & H2):

  • H1 (Size 1) – Best for standard adult imaging and pediatric use

    • Effective Area: 20 x 30 mm

    • Dimensions: 38.5 x 25 x 4.5 mm

    • Pixel Matrix: 1000 x 1500

  • H2 (Size 2) – Ideal for larger adult bitewing and full-mouth imaging

    • Effective Area: 26 x 36 mm

    • Dimensions: 40 x 31 x 4.5 mm

    • Pixel Matrix: 1300 x 1800

• High-Resolution Imaging:
  20 µm pixel size, 16-bit ADC chip with 60,000+ gray scale levels – ensuring superior image clarity and fine detail visualization.

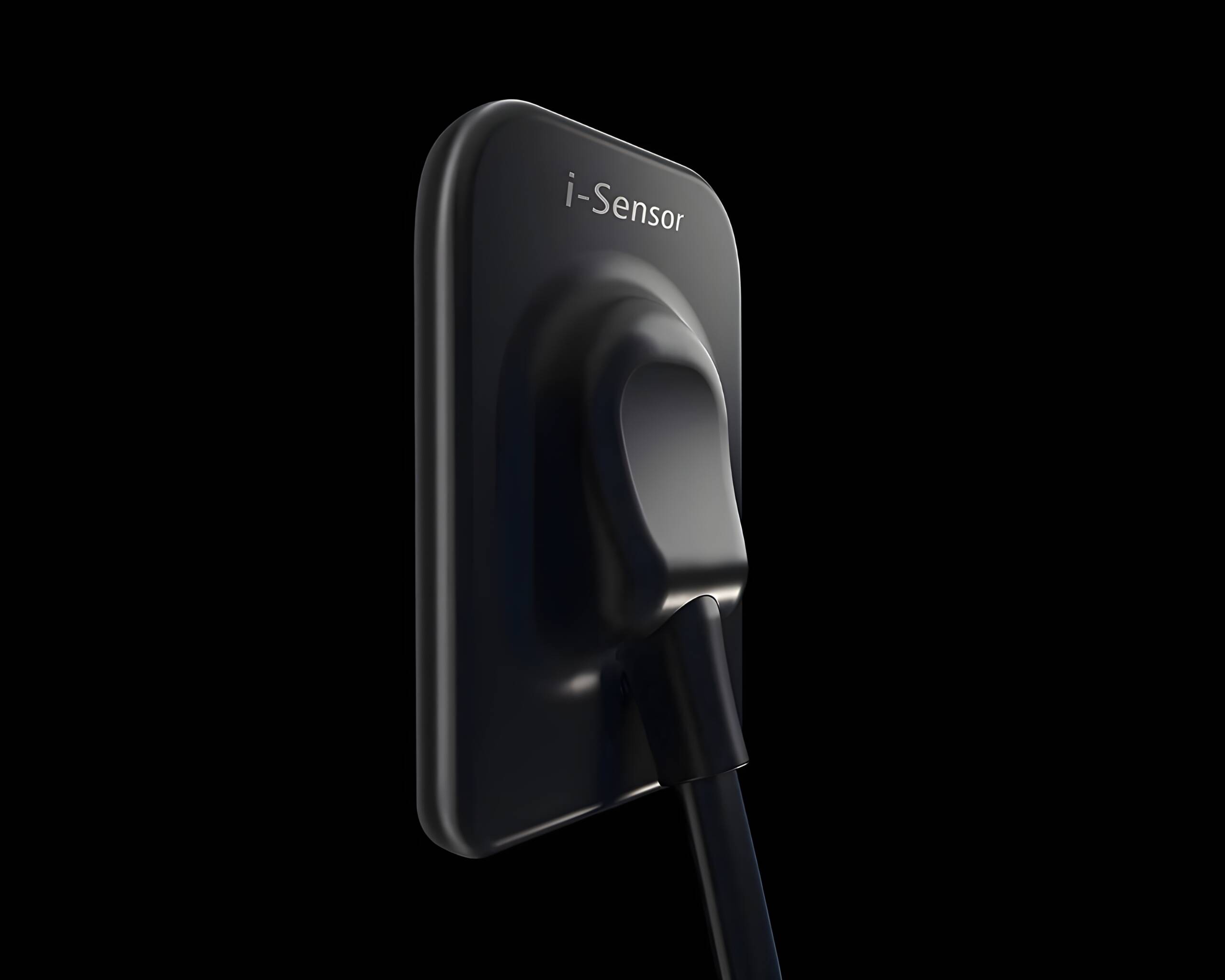

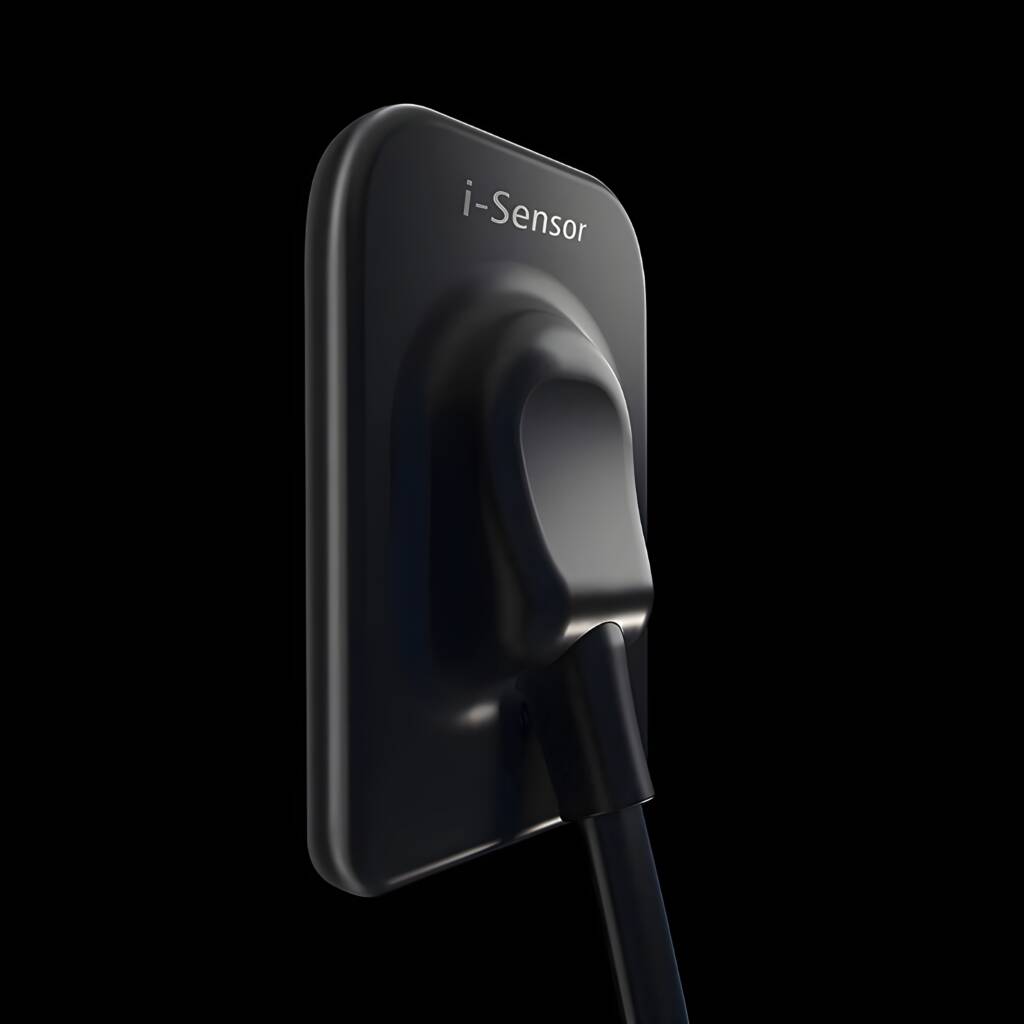

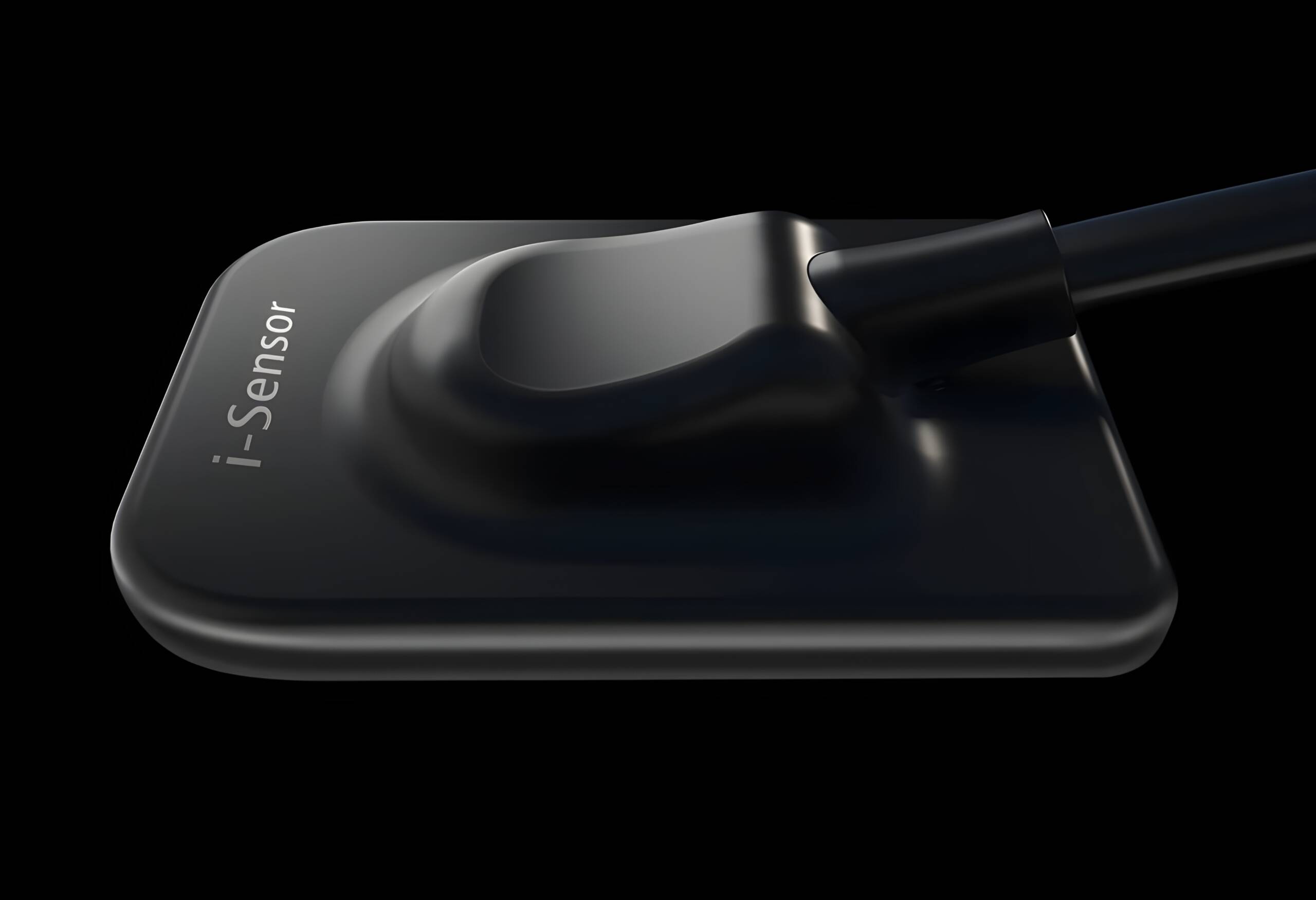

• Ultra-Slim Design (4.5 mm):
  Thin profile and curved corners ensure easy placement and enhanced patient comfort.

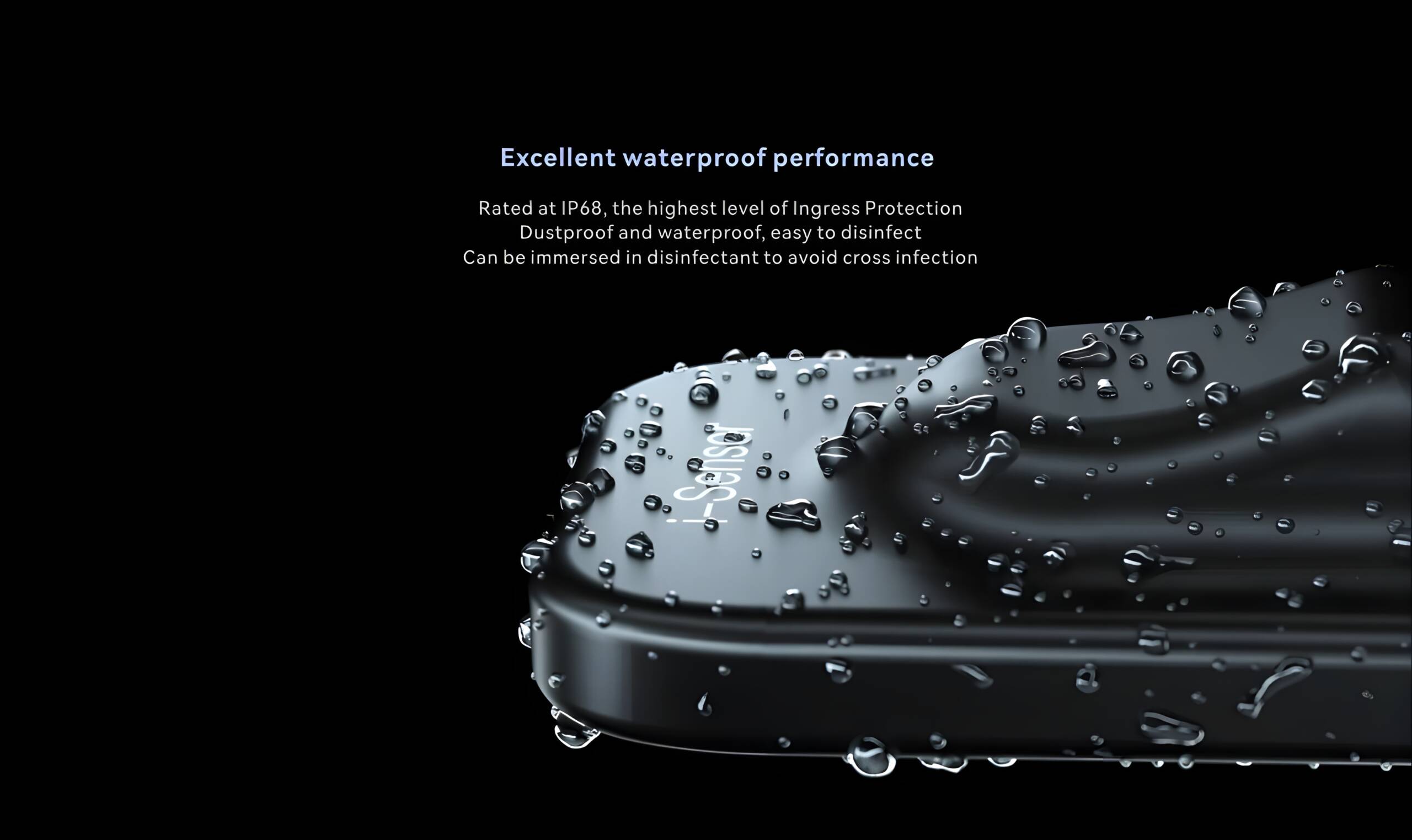

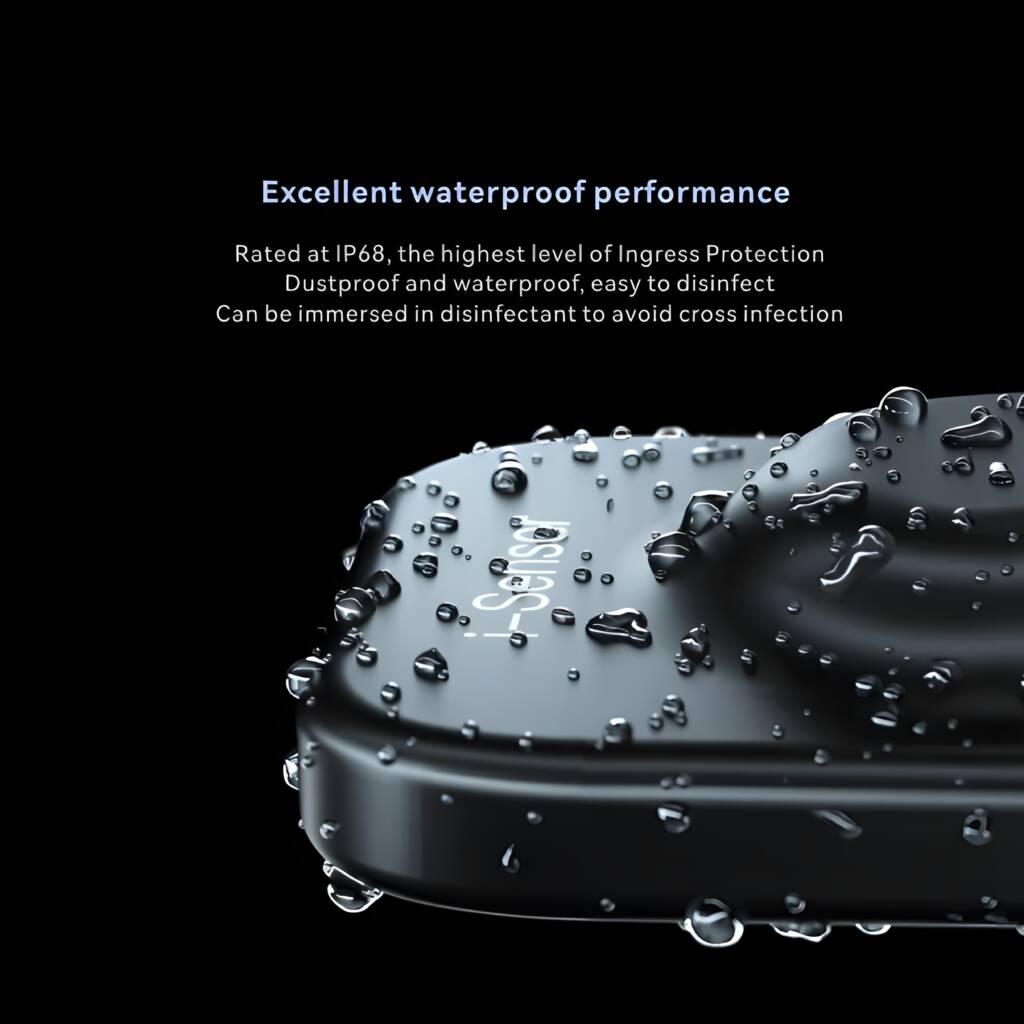

• Durable & Waterproof (IP68 Rated):
  Passed 80,000+ bend tests and rated IP68 for protection against dust, liquids, and disinfectants.

• Flexible Cable:
  Designed with a strong, flexible cable for extended durability during daily clinical use.

• Twain Compatible:
  Integrates with various imaging software platforms and supports unlimited PC installations—no license limits!

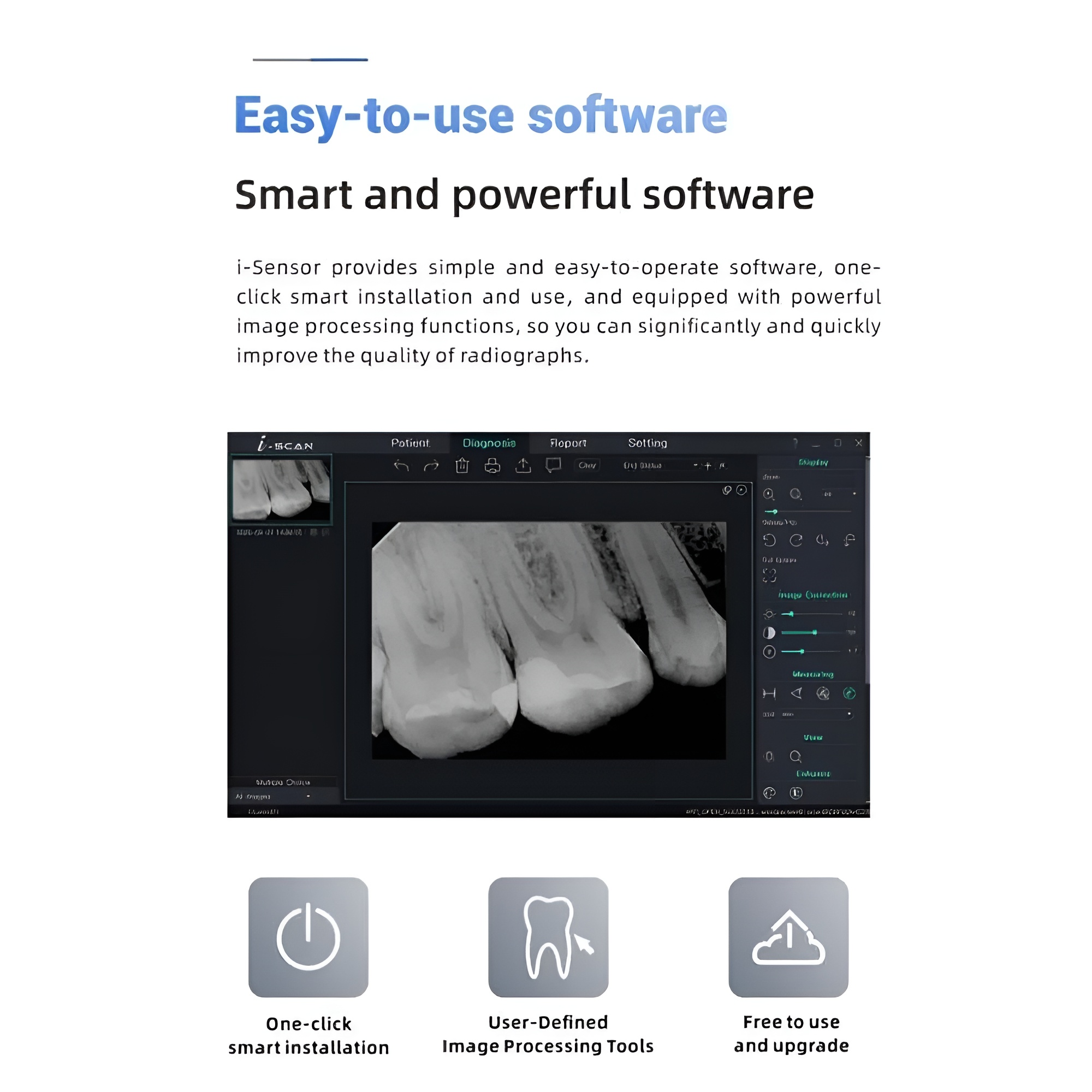

• Smart Imaging Software:
  One-click setup with intuitive tools for real-time image enhancement, easy storage, and seamless workflow integration.

Why Choose Woodpecker i-Sensor RVG?

• Precision Diagnostics: Detect fine details like root apex bifurcations, carious lesions, and periapical infections clearly.

• Increased Efficiency: Fast image capture and processing save chairside time.

• Optimized Patient Comfort: An ultra-slim profile and a range of size options ensure better positioning with reduced discomfort.

• Hygiene & Safety: Fully immersible in disinfectants, with replaceable sleeves and protective accessories.

•  Long-Term Reliability: Rugged construction, bend-proof cable, and high-performance sensor head built for daily clinical use.

How It Helps Your Practice

• Enhances diagnostic confidence for better treatment outcomes.

• Reduces retakes and improves workflow speed.

• Adapts to adult, pediatric, and complex anatomy with two size options.

• Seamlessly integrates into your digital practice.

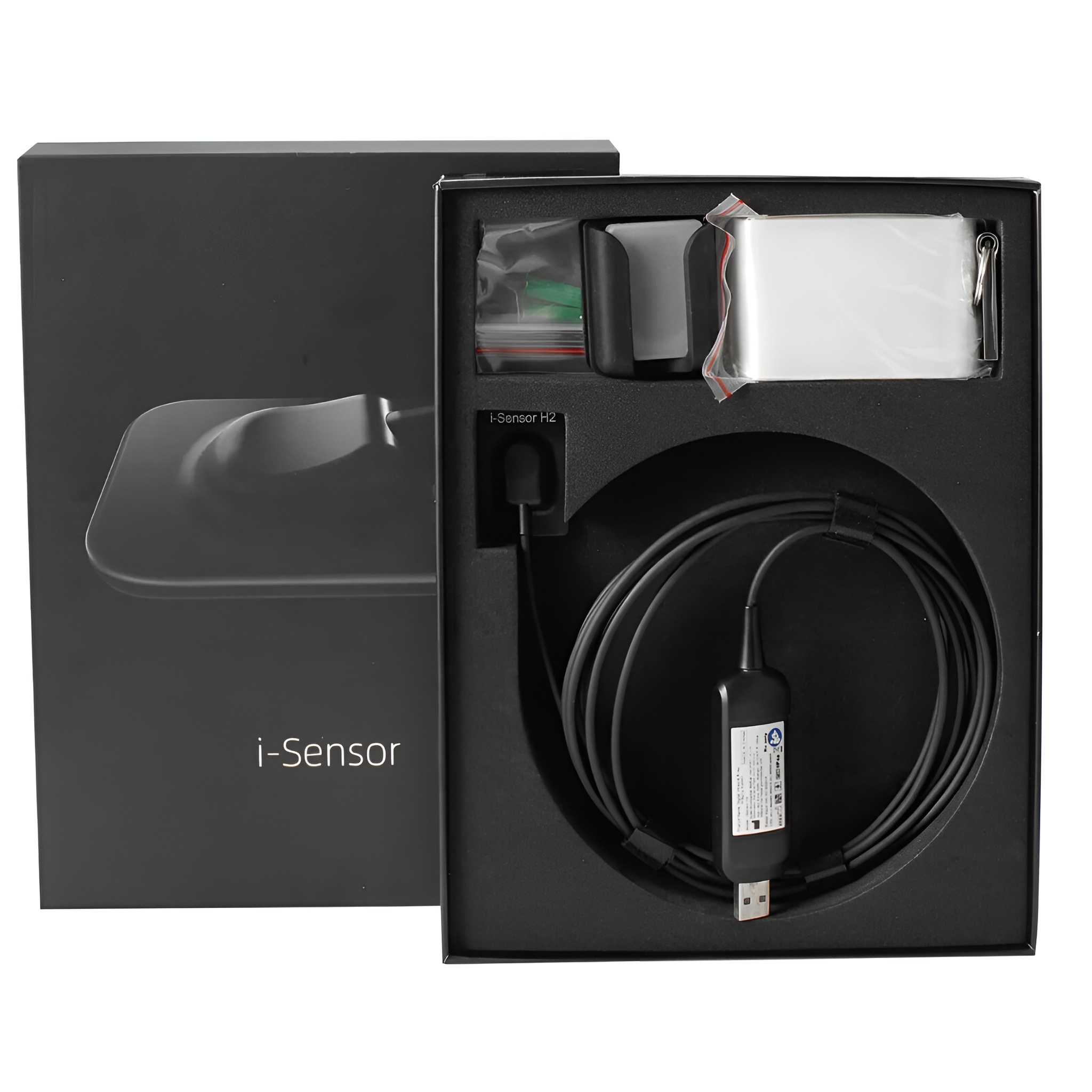

Package Includes

• 1 x i-Sensor RVG (Choose H1 or H2 size).

• 1 x Sensor Silicone Sleeve.

• 1 x Disposable Protective Bag.

• 1 x Sensor Fixer.

• 1 x Anti-Counterfeiting Query Label.

• 1 x U Disk (with software).

• 2 x Fixing Screws.

• 2 x Rubber Stoppers.

• 1 x Warranty Card.

• 1 x Instruction Manual.

• 1 x Qualified Certificate.
